Wiper/Washer Assembly

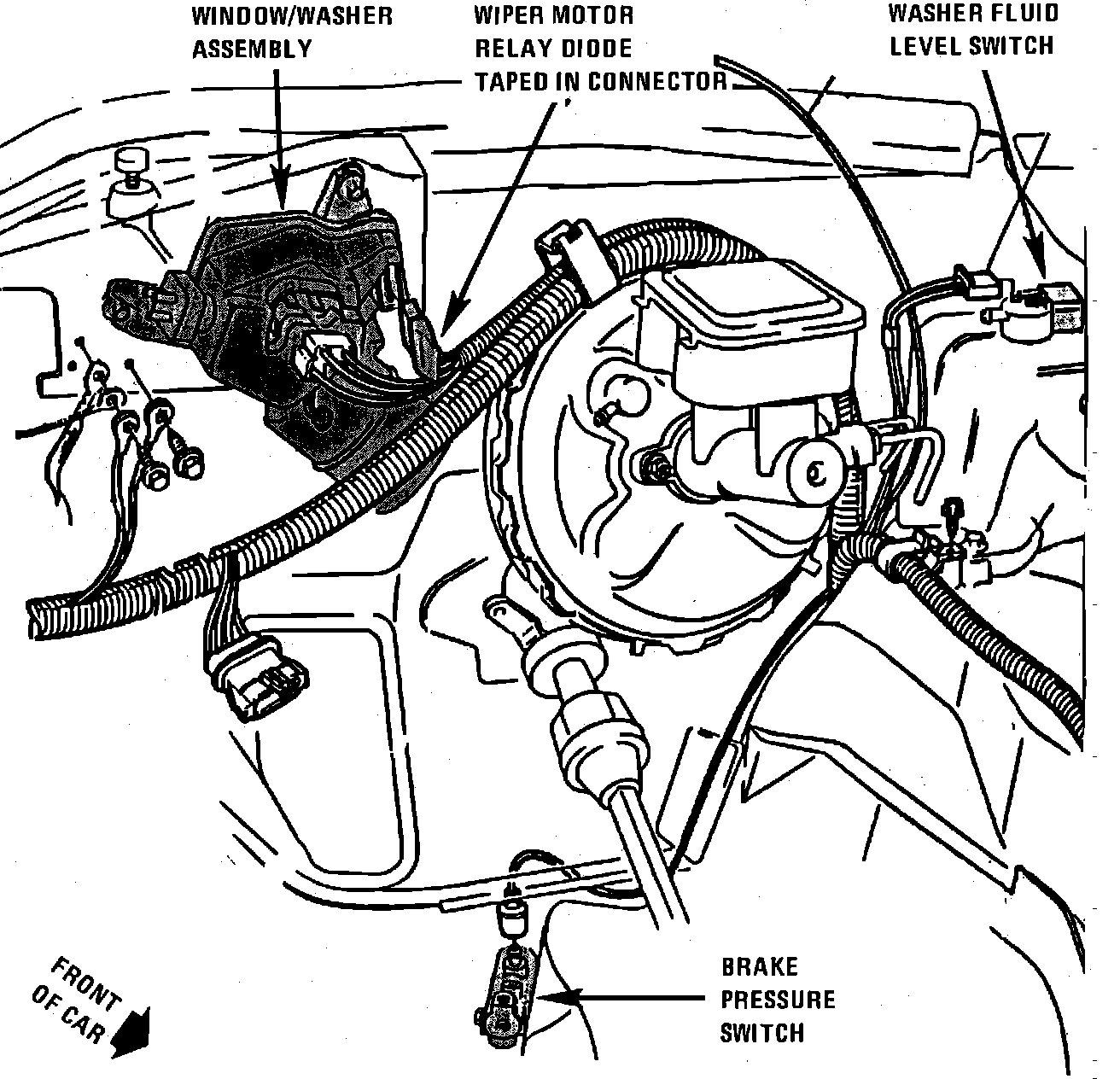

LH Side Of Engine Cowl.:

Top Center Portion Of Engine Cowl

Applicable to: Buick
