A/C Compressor Clutch Diode

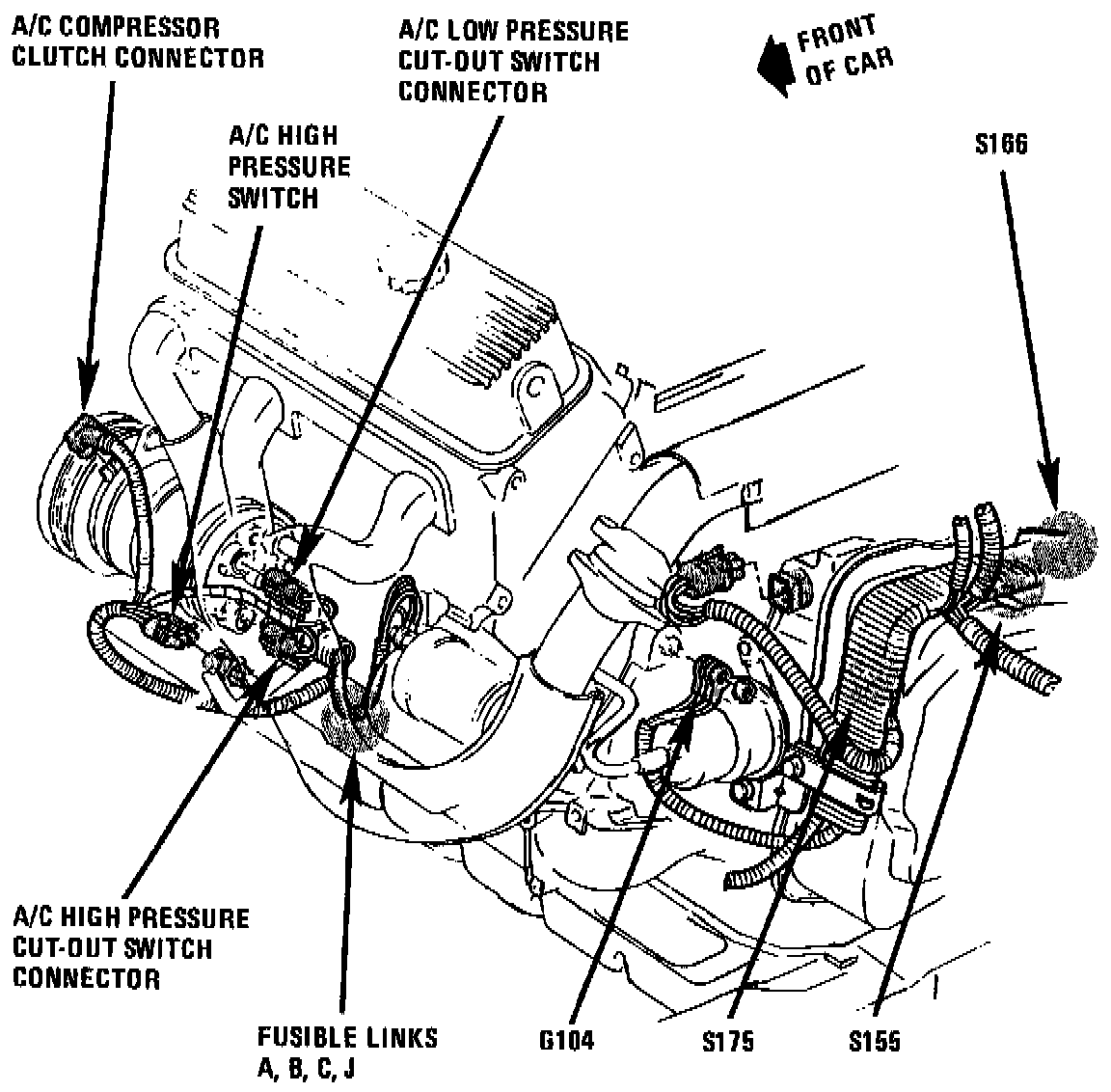

Front Of VIN B Engine:






The The A/C Compressor Clutch Diode is taped inside the compressor clutch connector. The Compressor Clutch Connector is located on the RH front of engine, on front of compressor.
