Electronic/Powertrain Control Module (ECM/PCM)

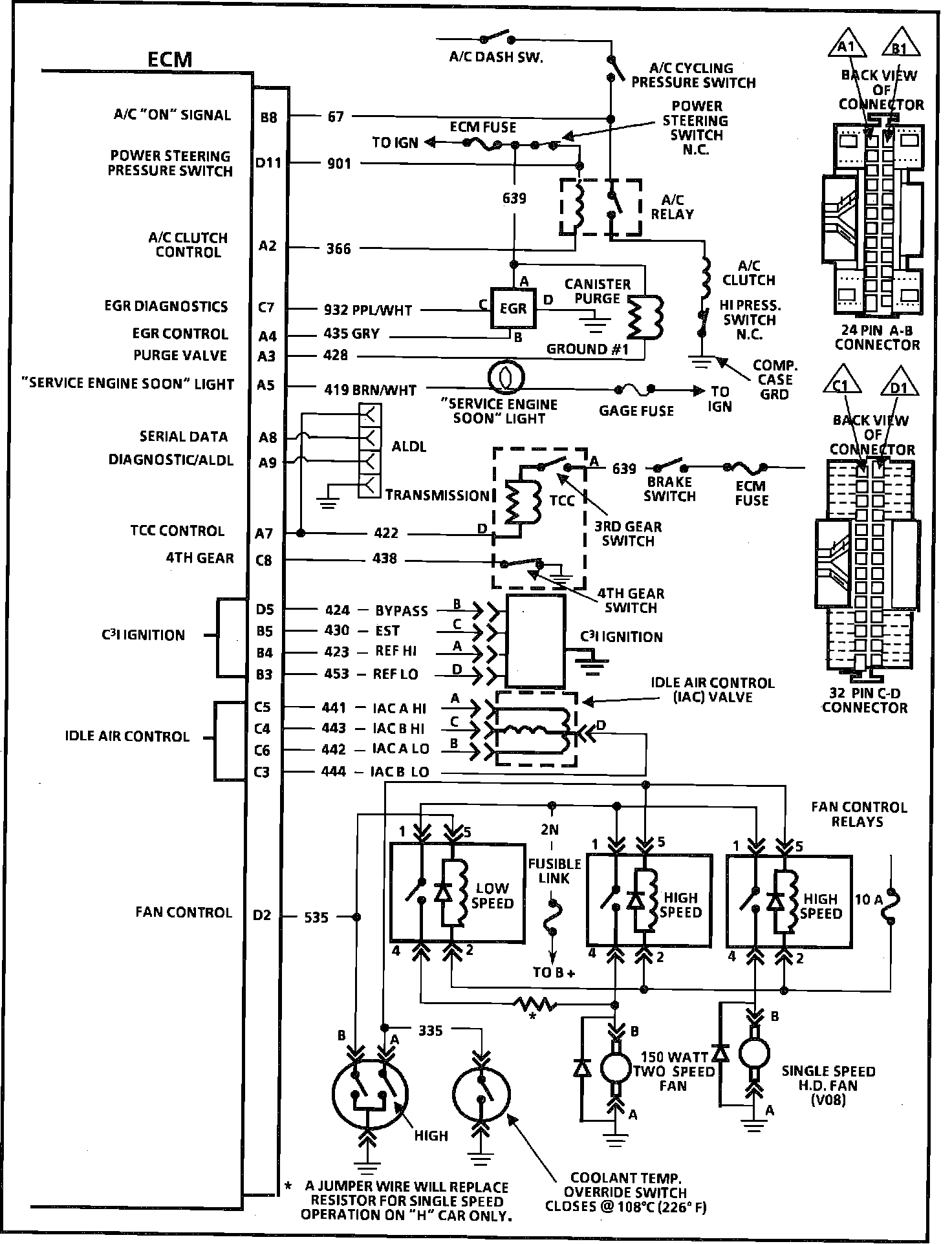

ECM Wiring Diagram (Part 1 of 2):

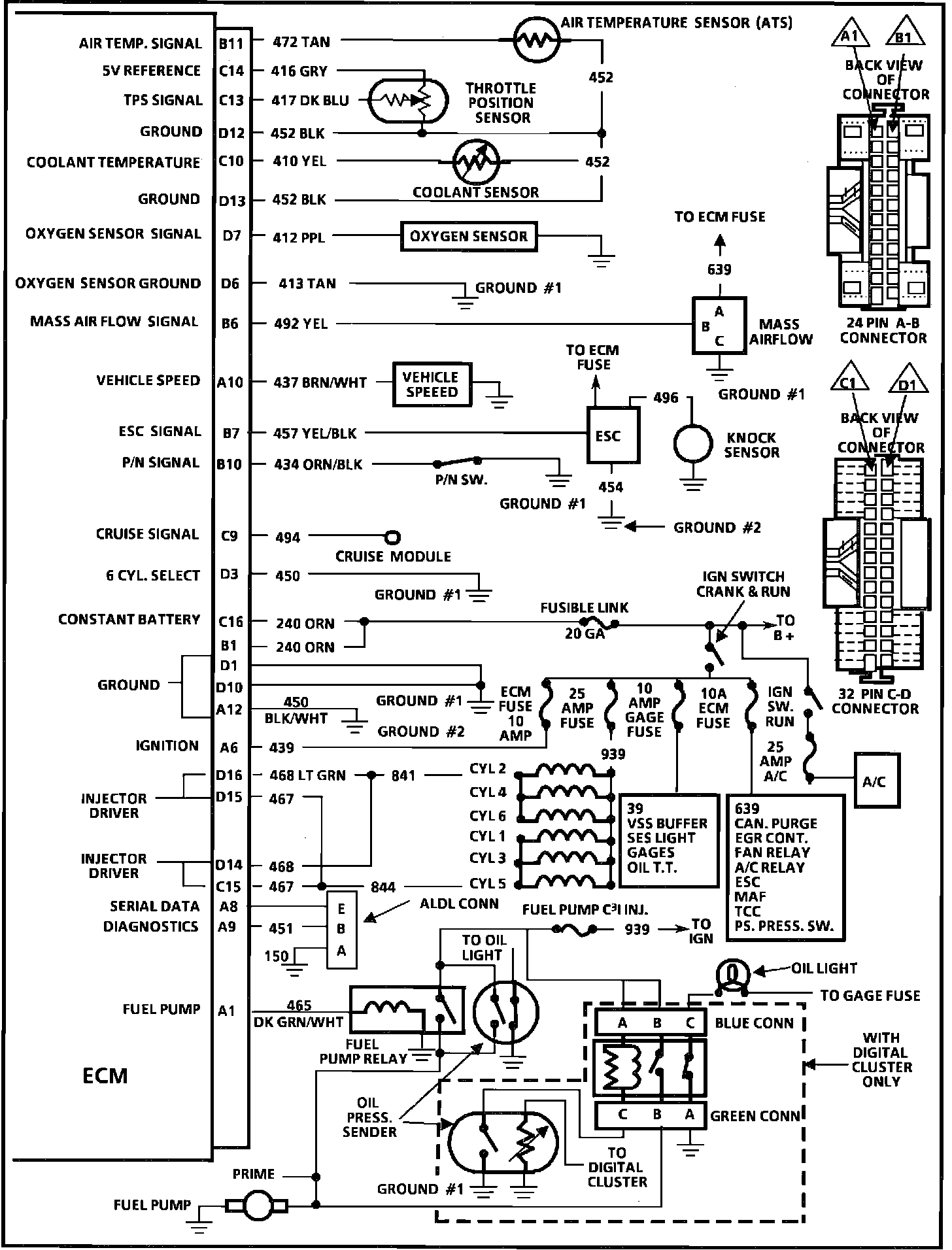

ECM Wiring Diagram (Part 2 of 2):
