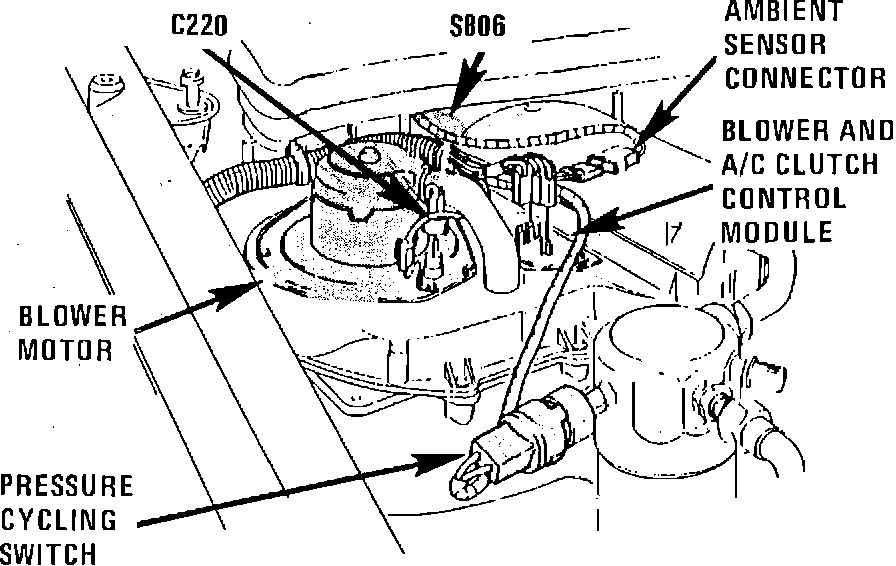

Blower & A/C Clutch Control Module
Below LH Side Of I/P.:
Left Of Blower Module
Applicable to: 1986 Bonneville, Grand Prix & Regal
