Climate Control System Check (Riviera)

Fig 1: Climate Control System Check (Riviera)

G5129

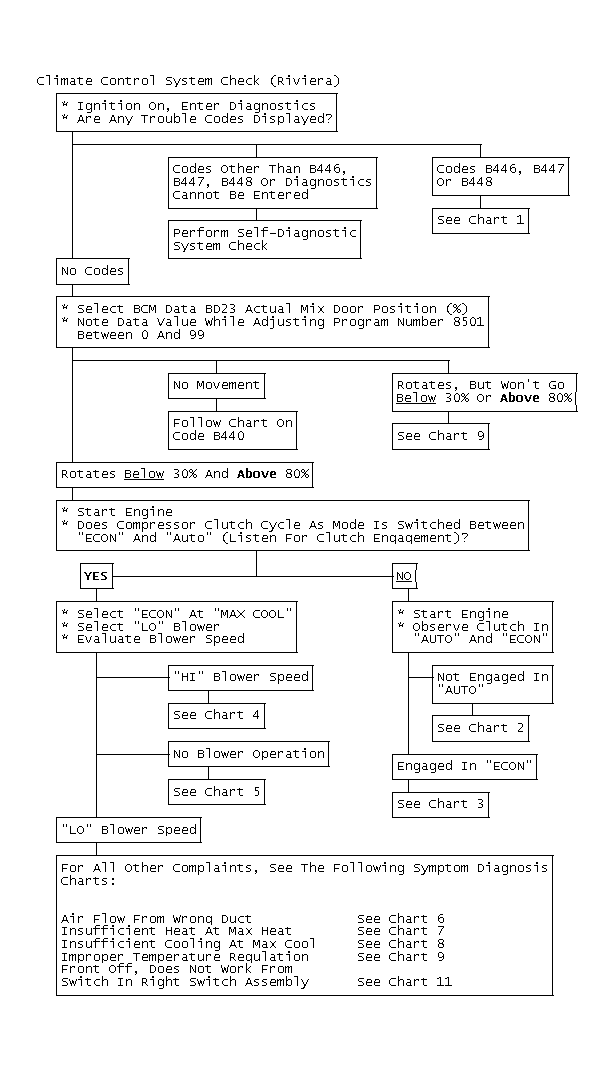

Fig 2: Climate Control System Check (Riviera)

GB0048393
