Electronic Spark Timing

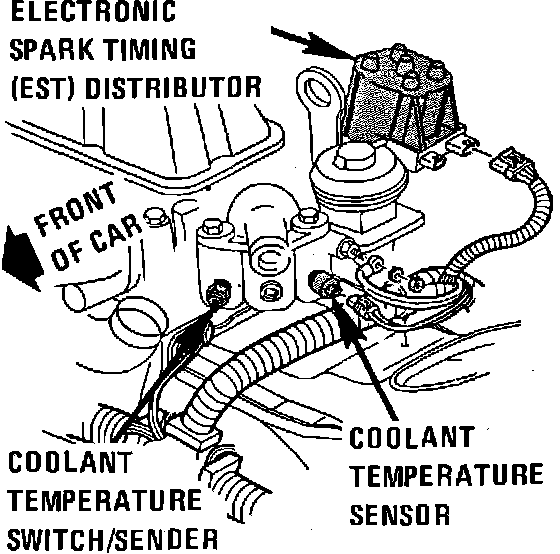

LH Top Of Engine.:




Top LH Side Of Engine

Applicable to: 1986 Cavalier, Cimarron, Firenza & Skyhawk With 4-121/2.0L, VIN P
