Flow Charts C To C4: Wheel Sensor Output Test

Fig 1: Test C Wheel Sensor Output

G56105

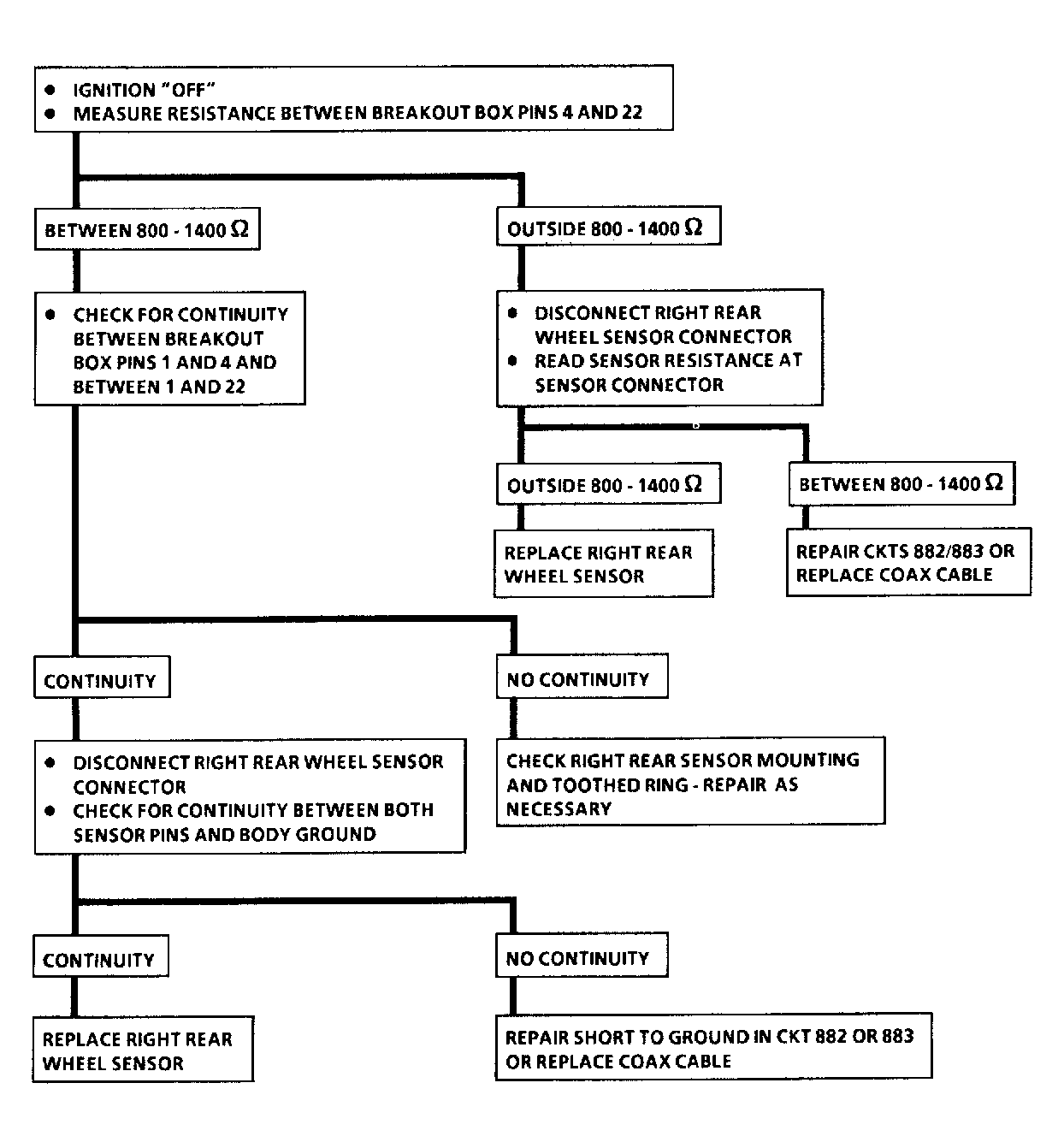

Fig 2: Chart C-1 RR Wheel Sensor Output

G56106

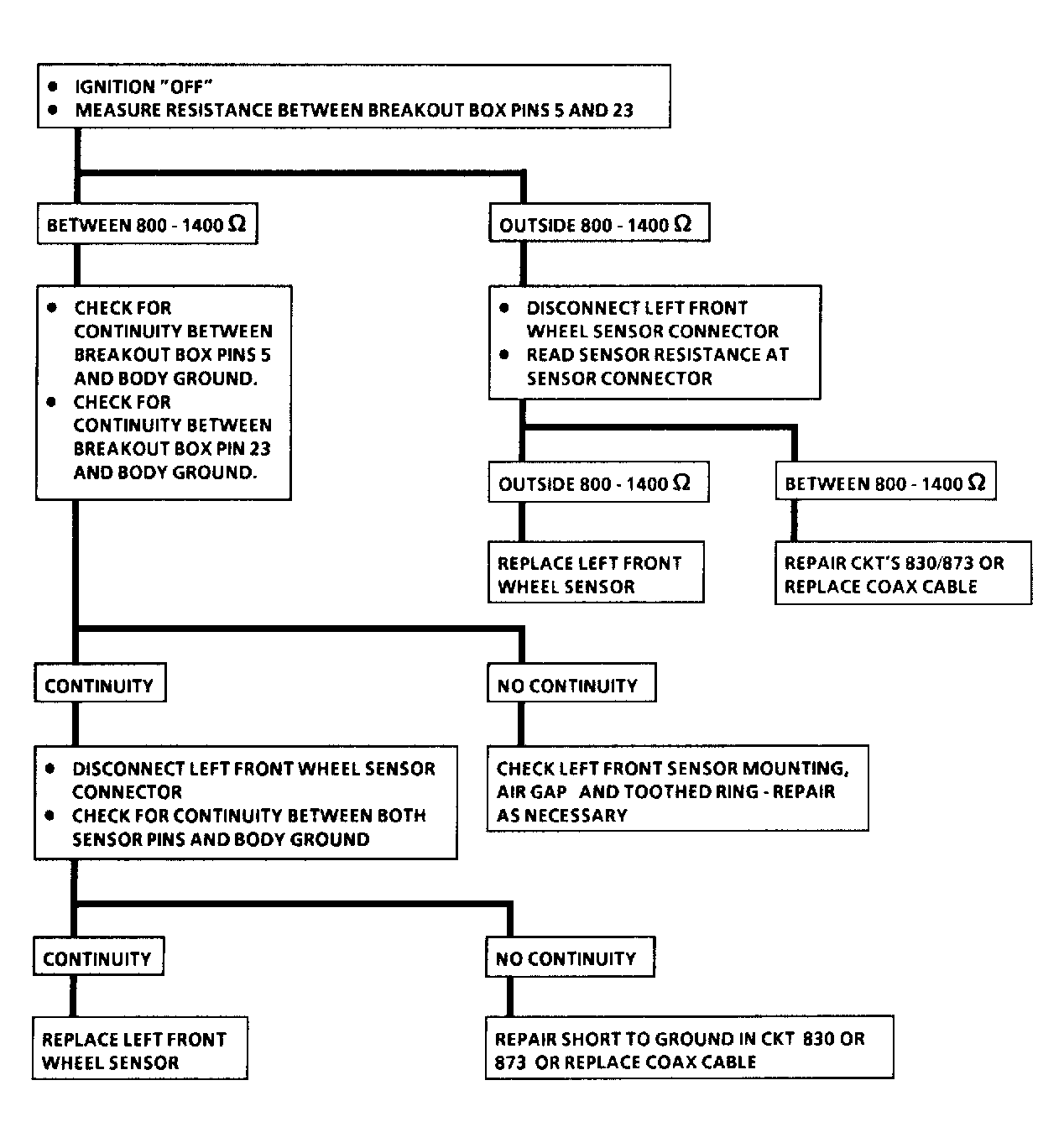

Fig 3: Chart C-2 LF Wheel Sensor Output

G56107

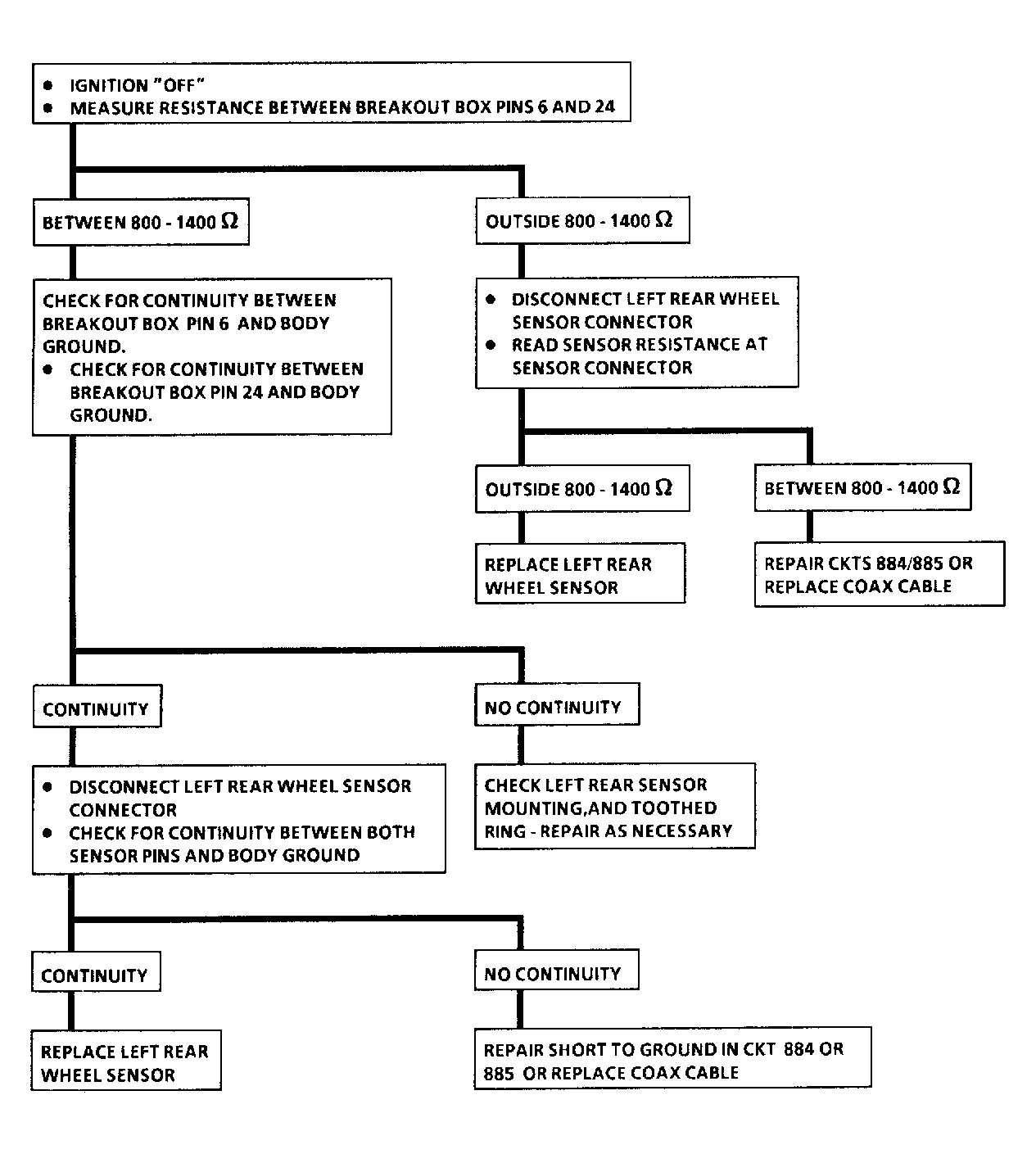

Fig 4: Chart C-3 LR Wheel Sensor Output

G56108

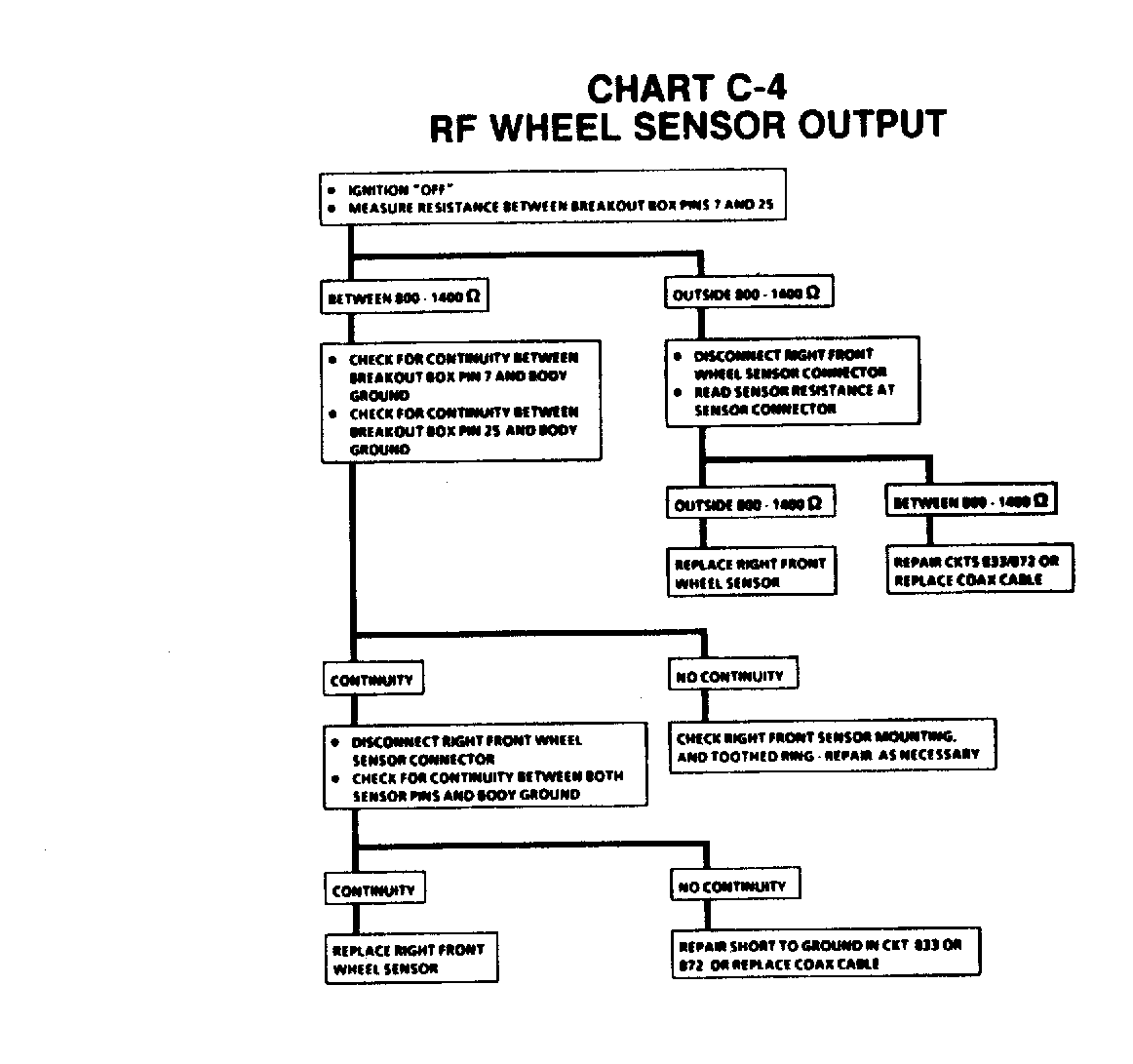

Fig 5: Chart C-4 RF Wheel Sensor Output

G56109
