Intermediate Servo Assembly: Disassembly

Using a small screwdriver, remove intermediate pin-to-retainer snap ring. Separate band apply pin, spring and washer from servo pistons.

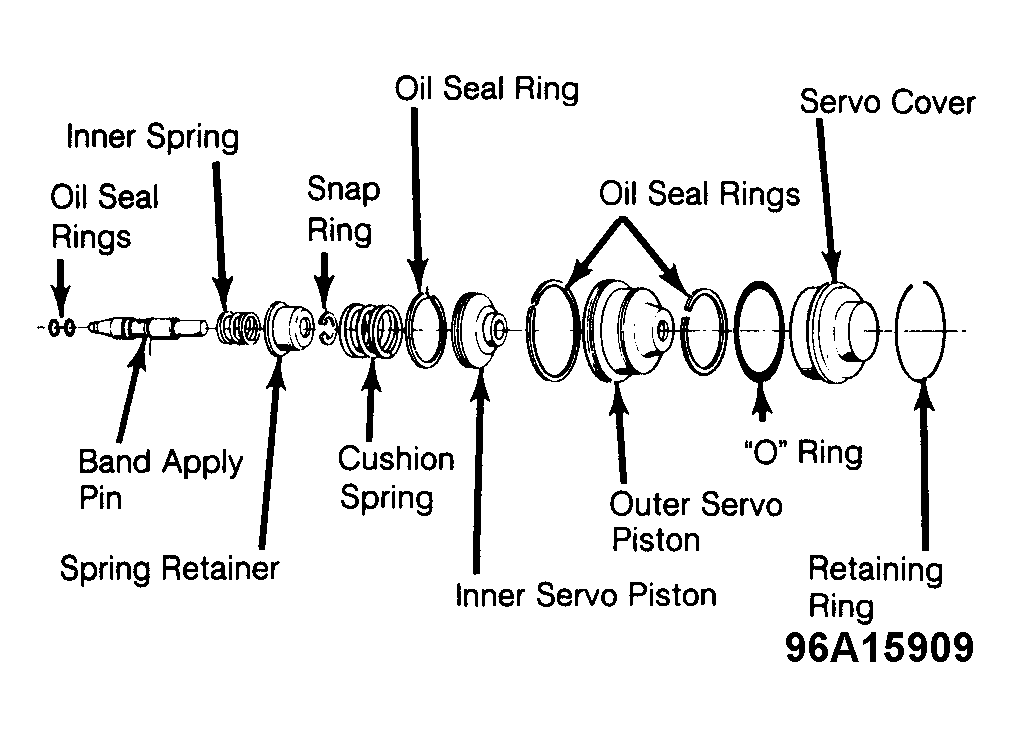

Fig 1: Exploded View of Intermediate Servo

Courtesy of GENERAL MOTORS CORP.
