Camshaft Position Sensor: Locations

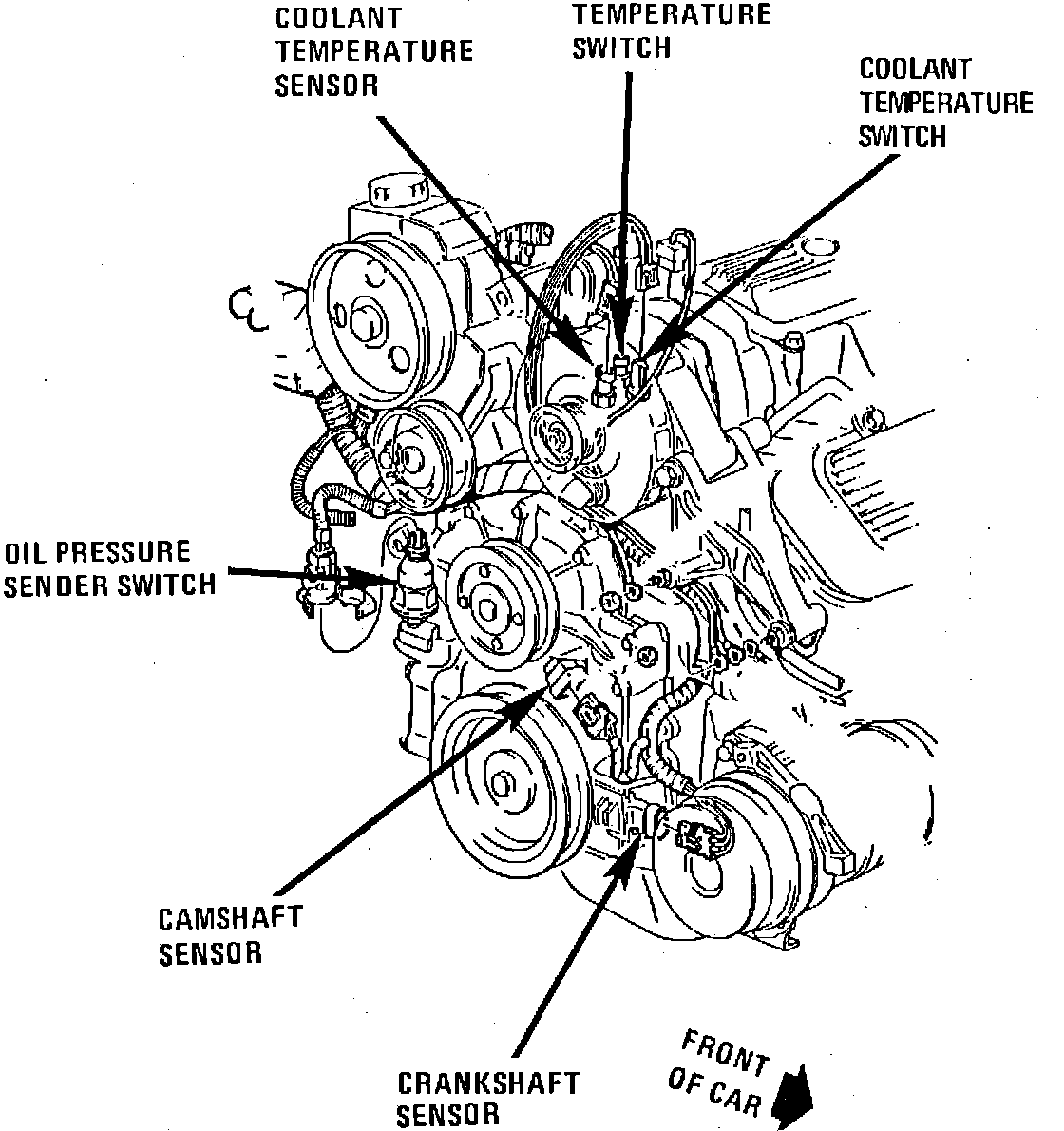

RH Side Of Engine:
The camshaft position sensor is located on the lower RH side of the engine, above the crank pulley.
The camshaft position sensor is located on the lower RH side of the engine, above the crank pulley.
