Wiper Control Module: Locations

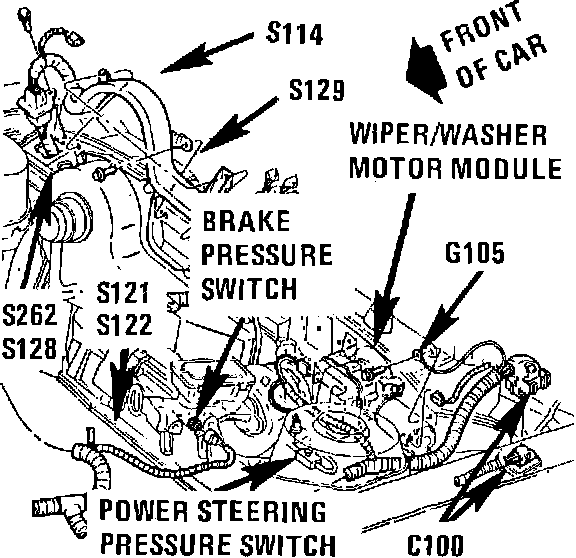

Front Of Dash.:

LH Front Of Dash, Left Of Power Brake Booster

Applicable to: 1987 Skylark & Somerset (4-151/2.5L Shown, V6-181/3.0L Similar)

LH Side Of Engine Compartment.:

LH Front Of Dash, Left Of Power Brake Booster

Applicable to: 1987 (V6-181/3.0L Shown, 4-121/2.0L & 4-151/2.5L Similar)
