System Check Table

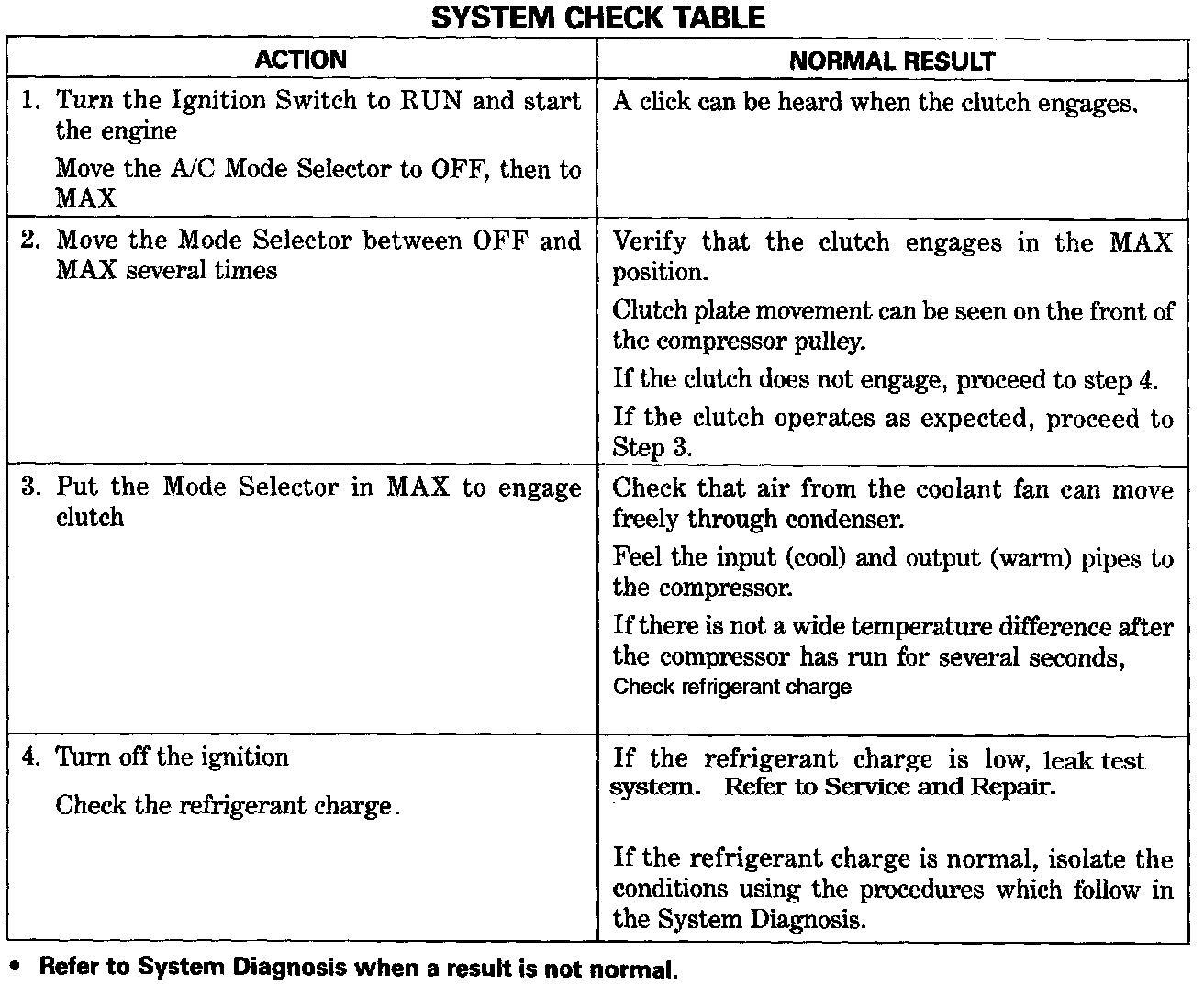

System Check Table:






^ Complete the A/C System Check in as a guide to normal operation of the A/C System. Testing and Inspection
^ Use the System Check Table as a guide to normal operation of the Compressor Controls.
^ Refer to Diagnostic Test when a result is other than normal. Testing and Inspection
