Electronic/Engine Control Module (ECM)

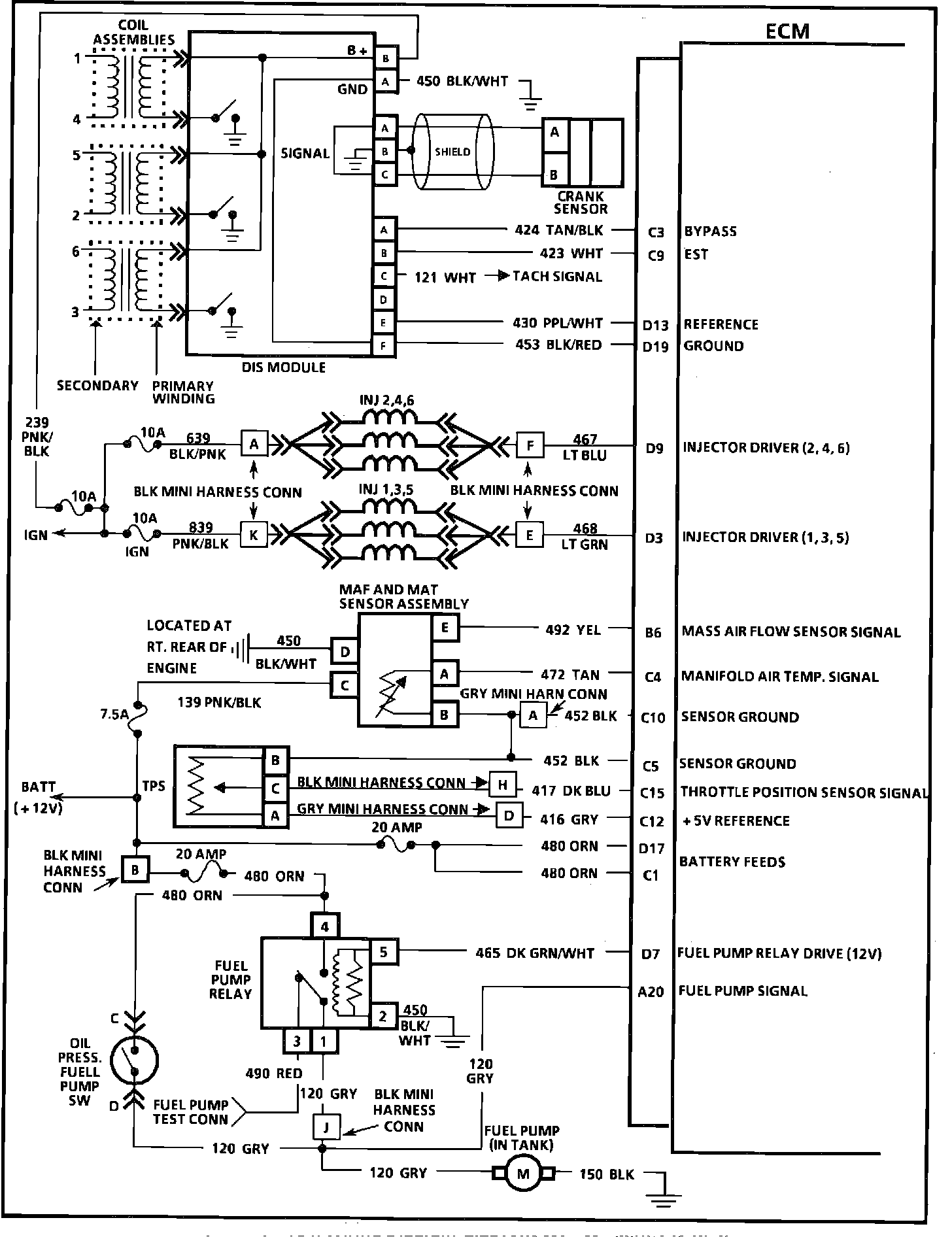

ECM Wiring Diagram (Part 1 of 3):

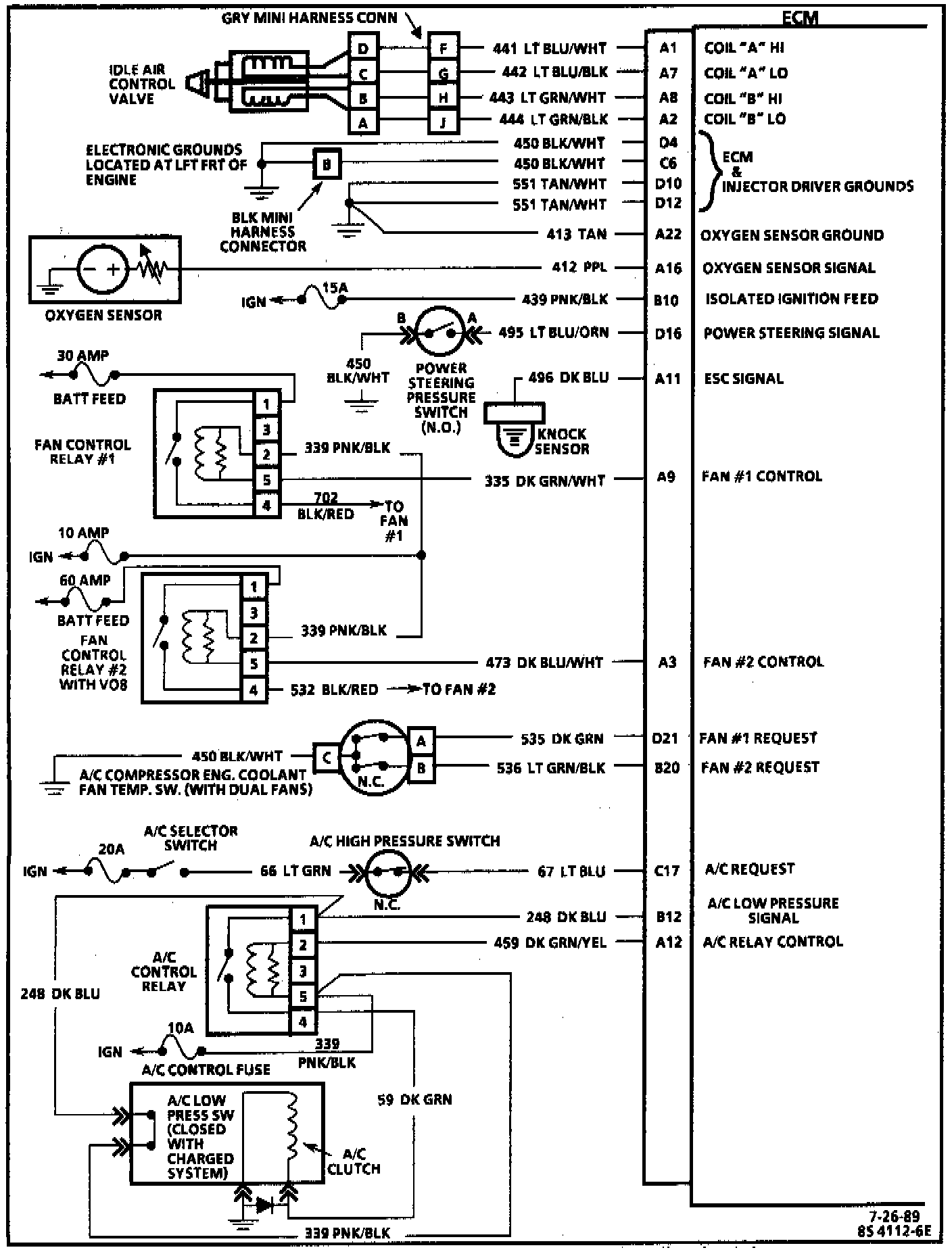

ECM Wiring Diagram (Part 2 of 3):

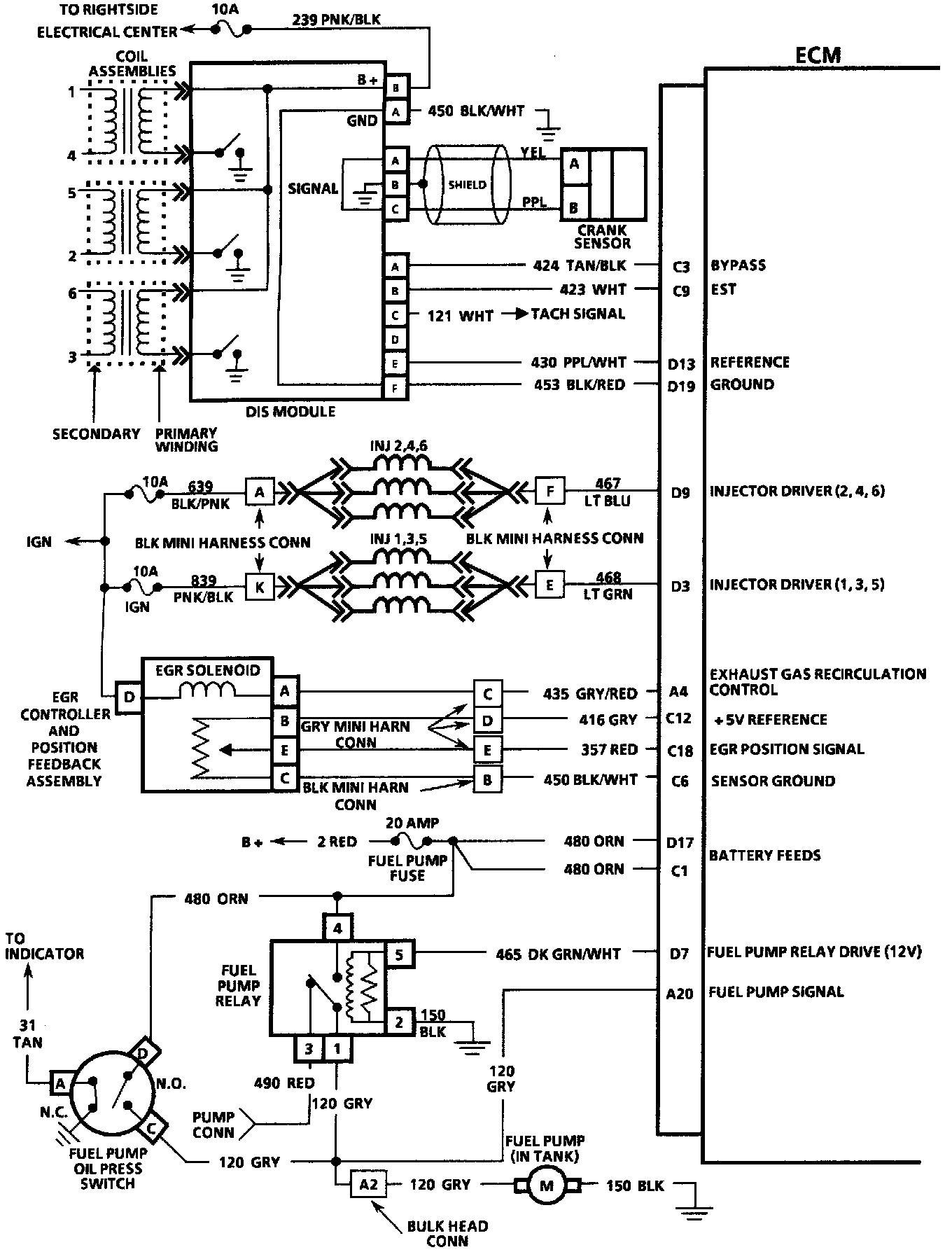

ECM Wiring Diagram (Part 3 of 3):

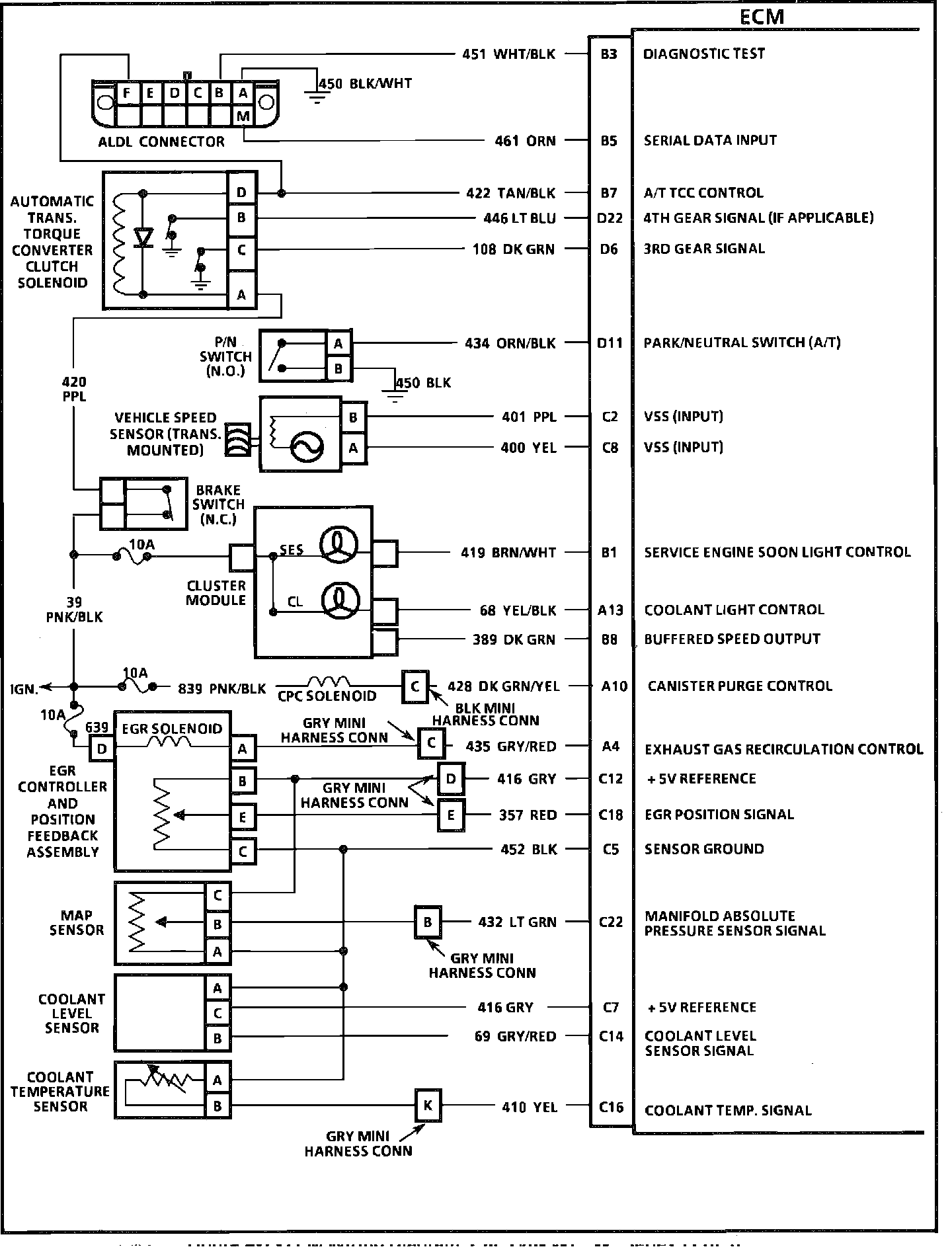

ECM Wiring Diagram:

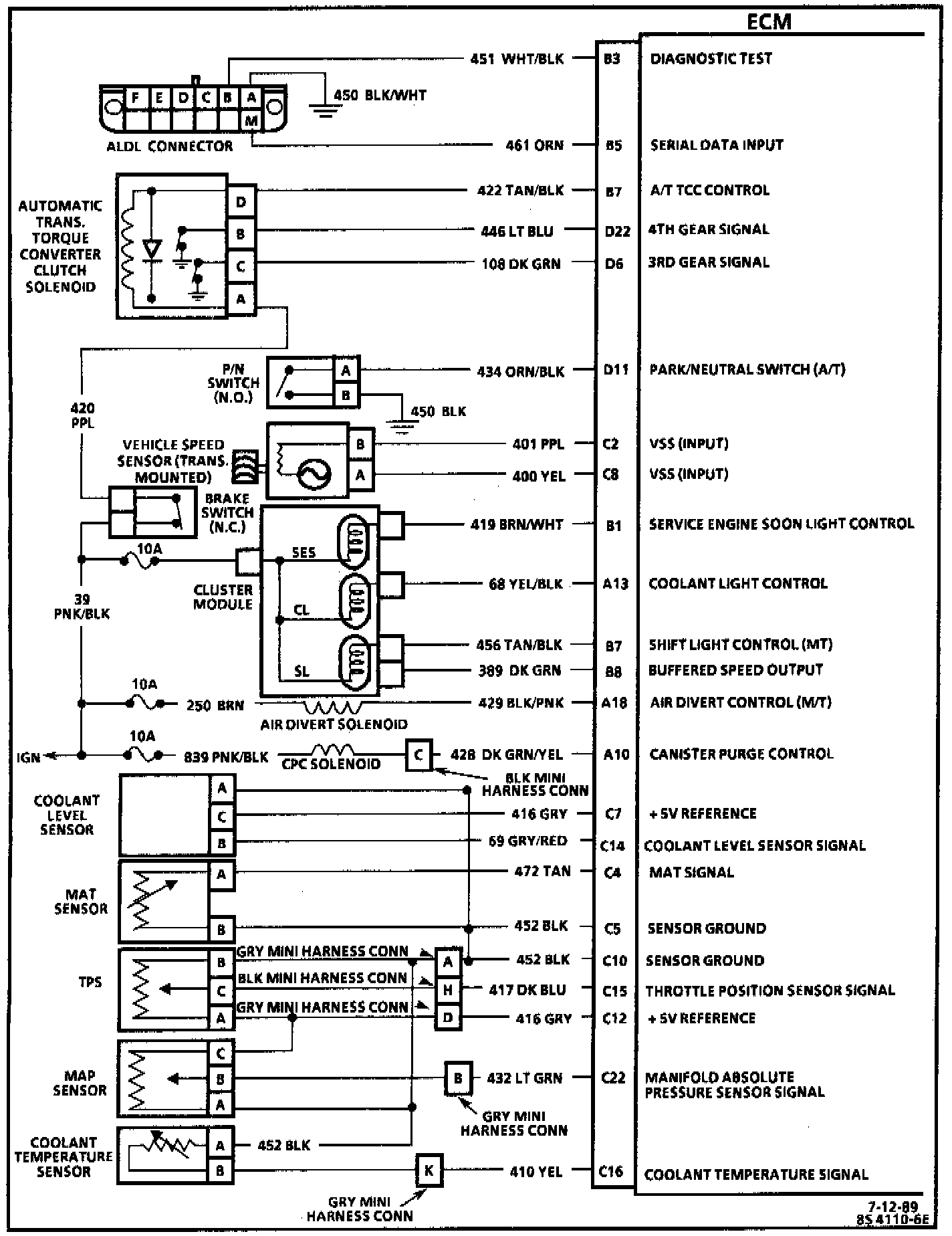

With Speed Density Update:

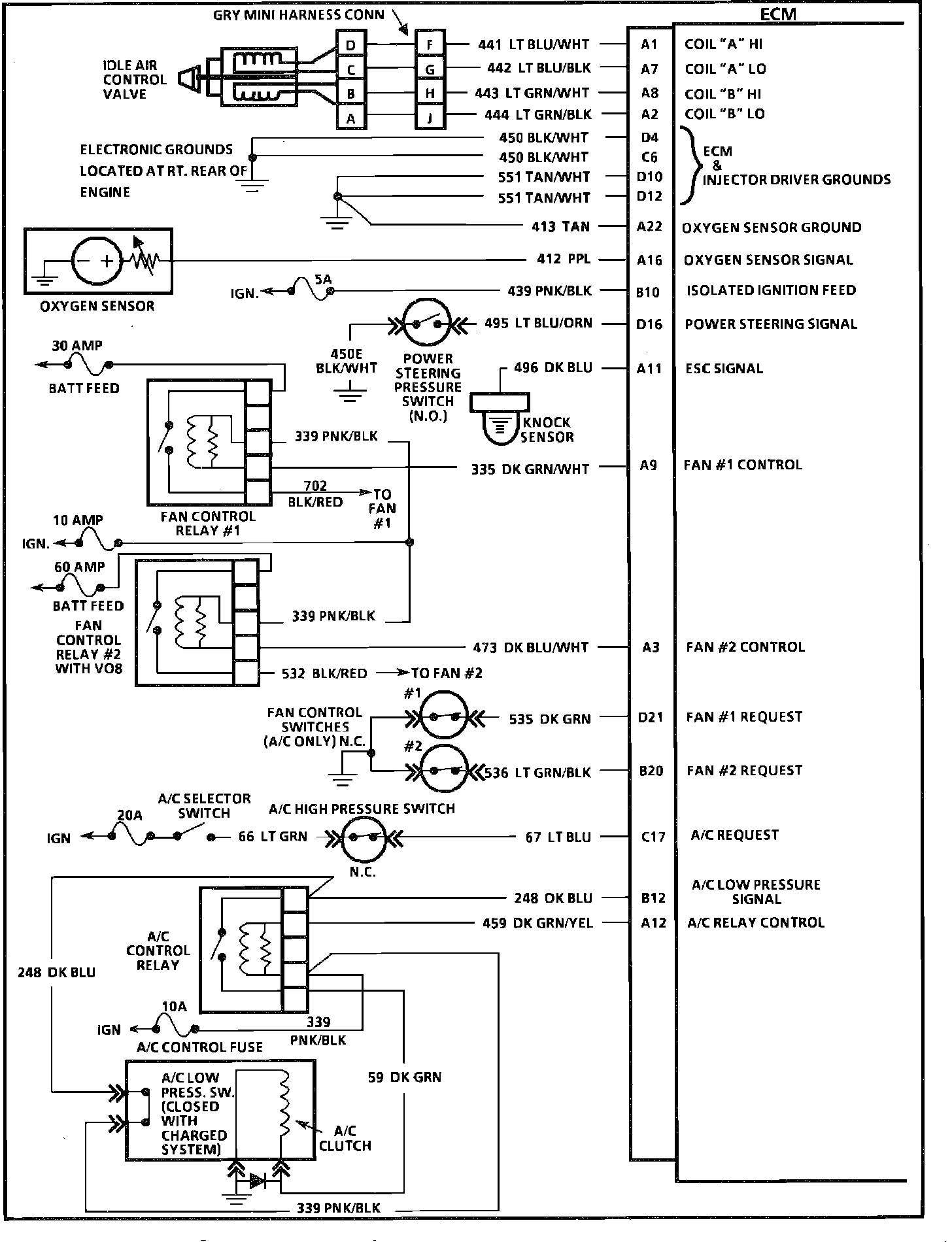

ECM Wiring Diagram:
