Chart A1 - EBCM Problem

Codes 11 and 12 indicates problem with EBCM. In most cases, either code indicates replacement of EBCM. Ensure ground circuit is okay. False code can be set due to external electromagnetic disturbances.

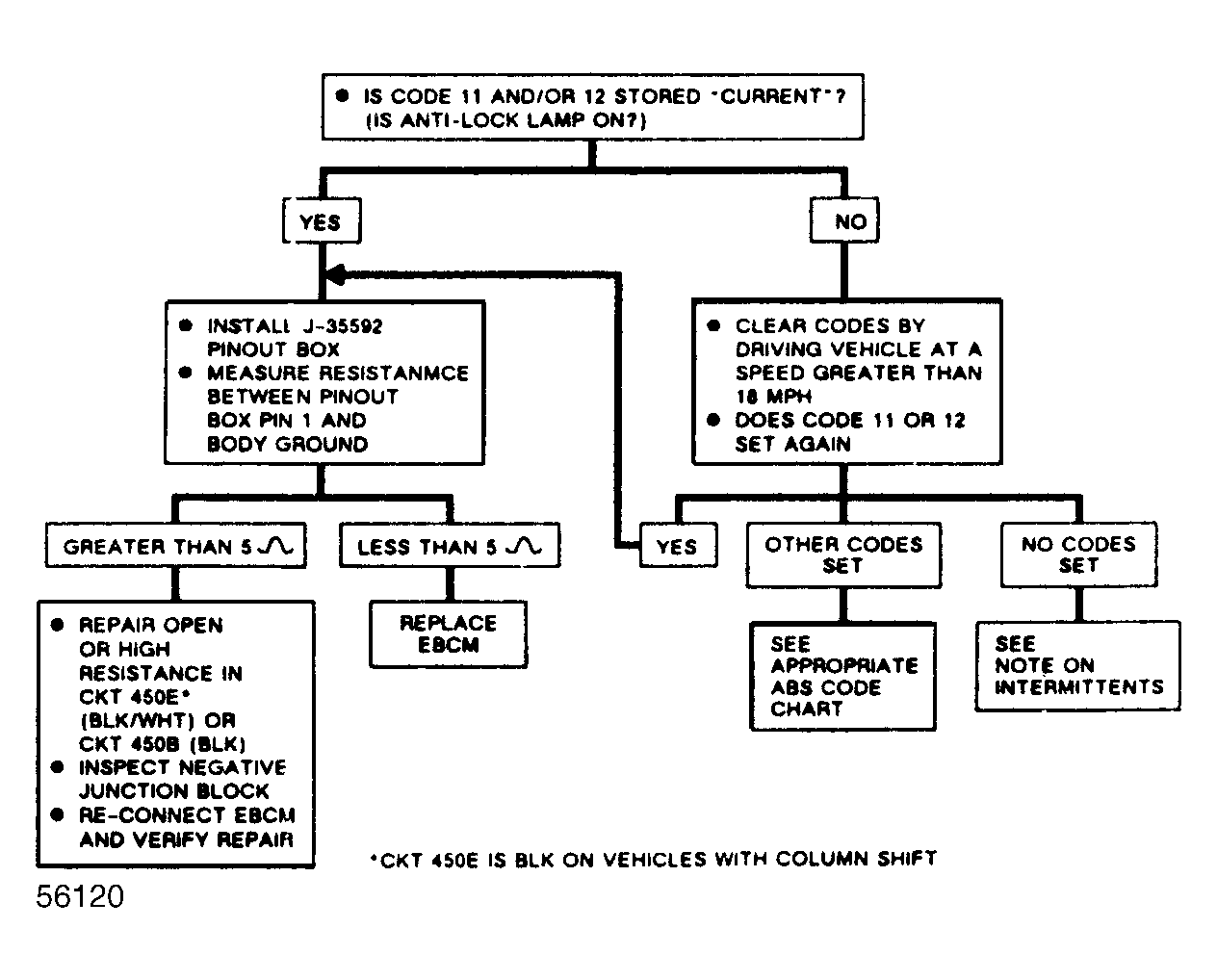

Fig 1: Flow Chart A1, Codes 11 & 12 - EBCM Problem

Fig 2: Flow Chart A1, Codes 11 & 12 - EBCM Problem
