Starting and Charging: Specifications

BATTERY SPECIFICATIONS

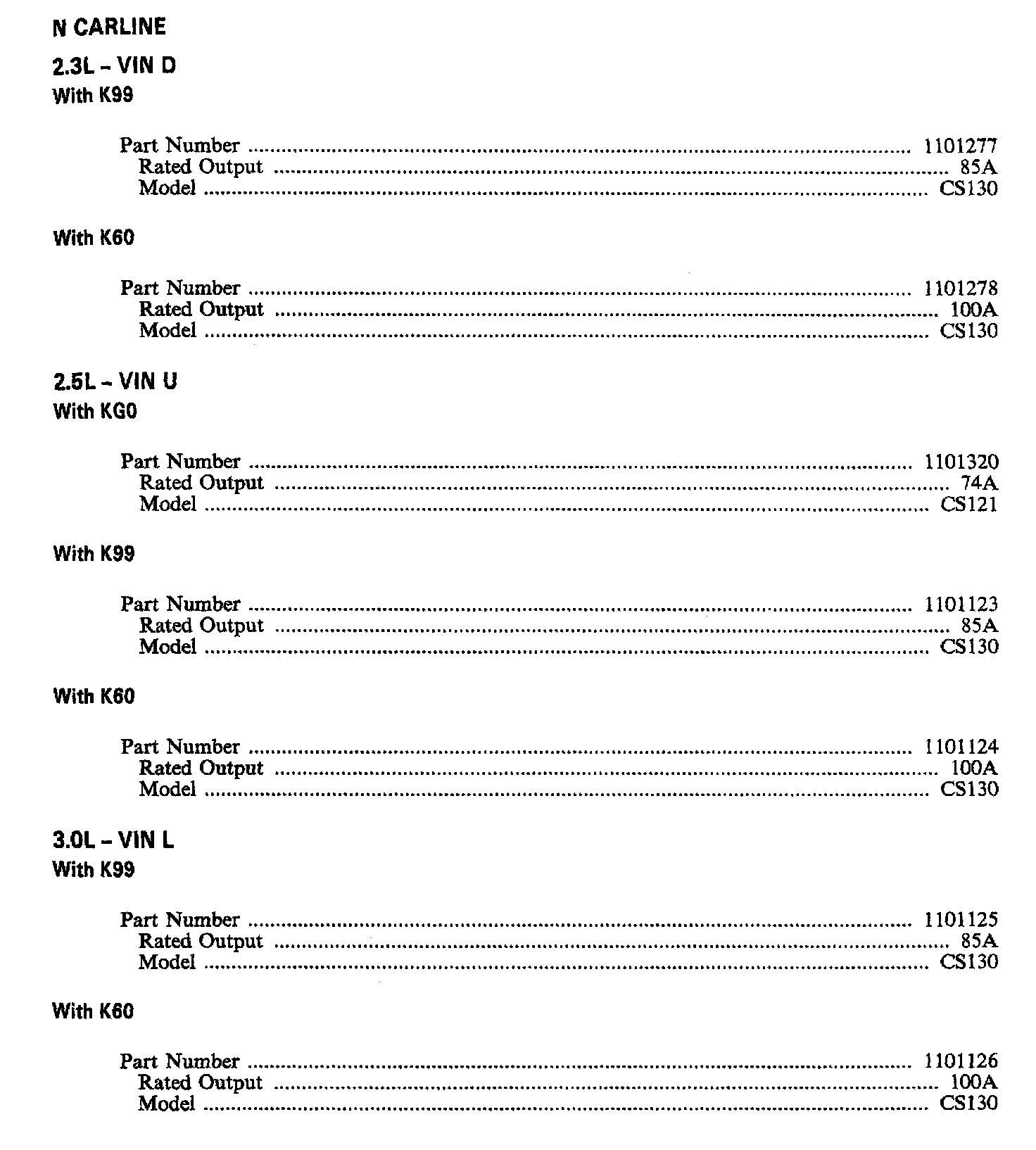

ALTERNATOR SPECIFICATIONS

J Chassis:

N Chassis:

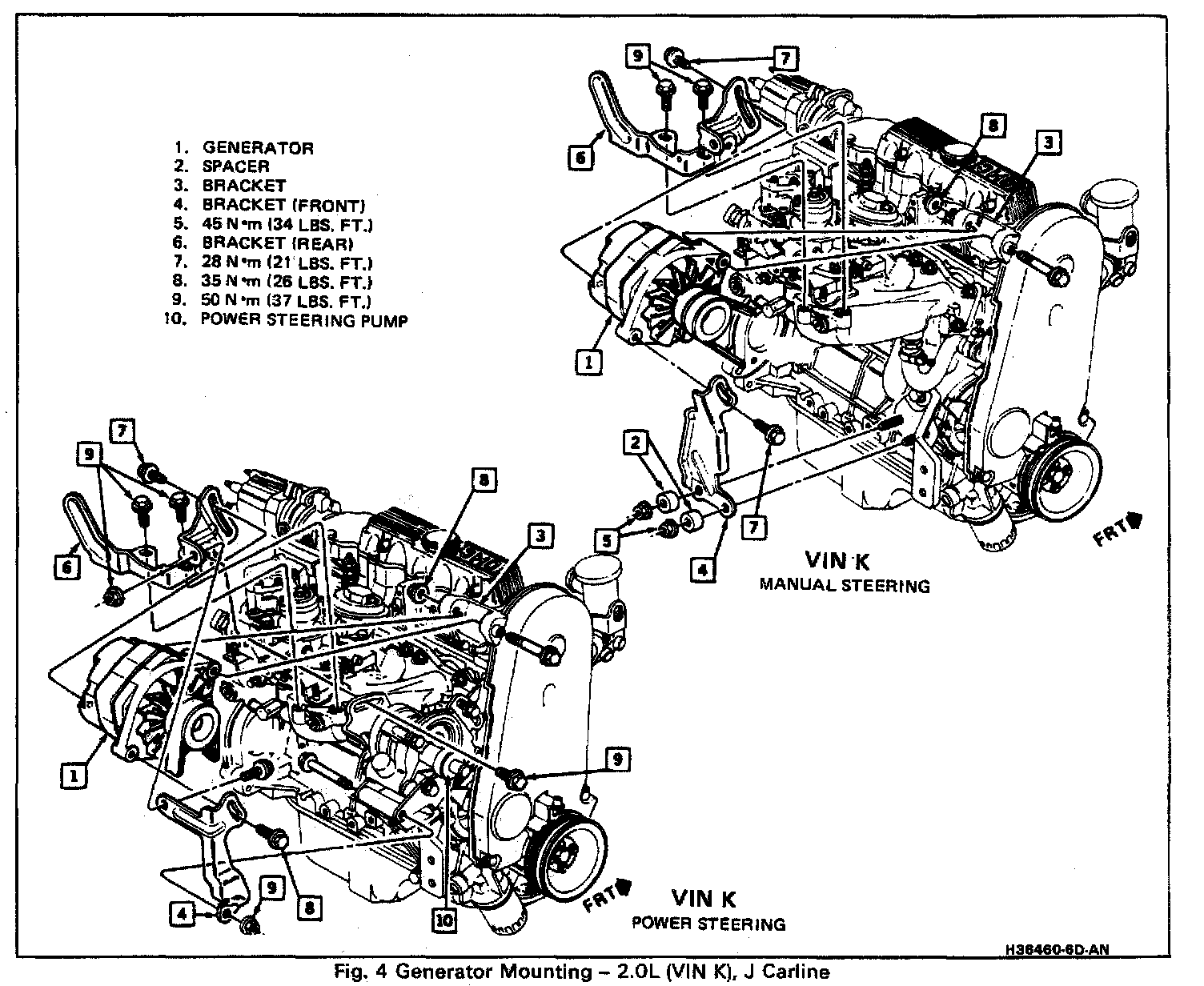

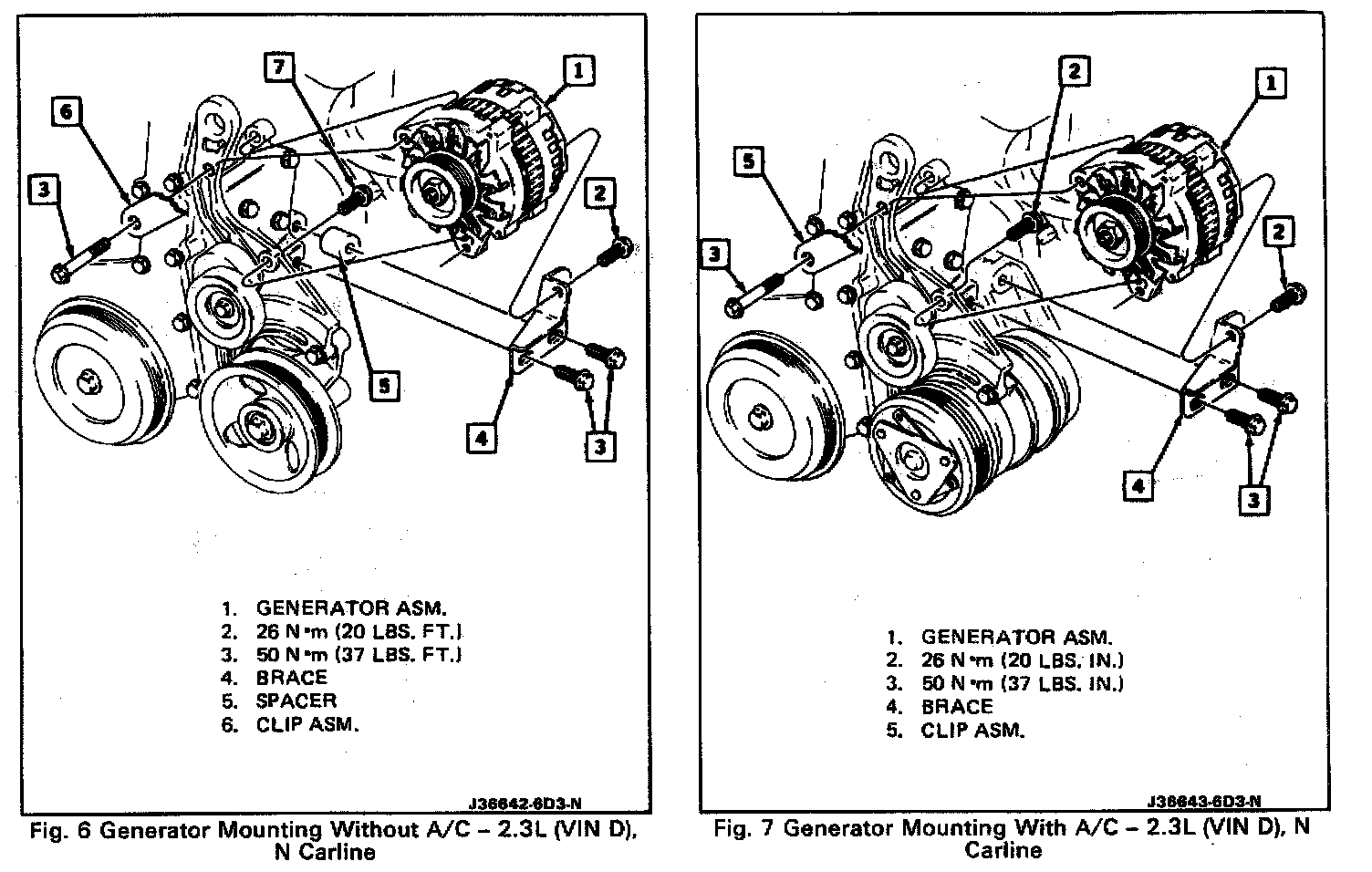

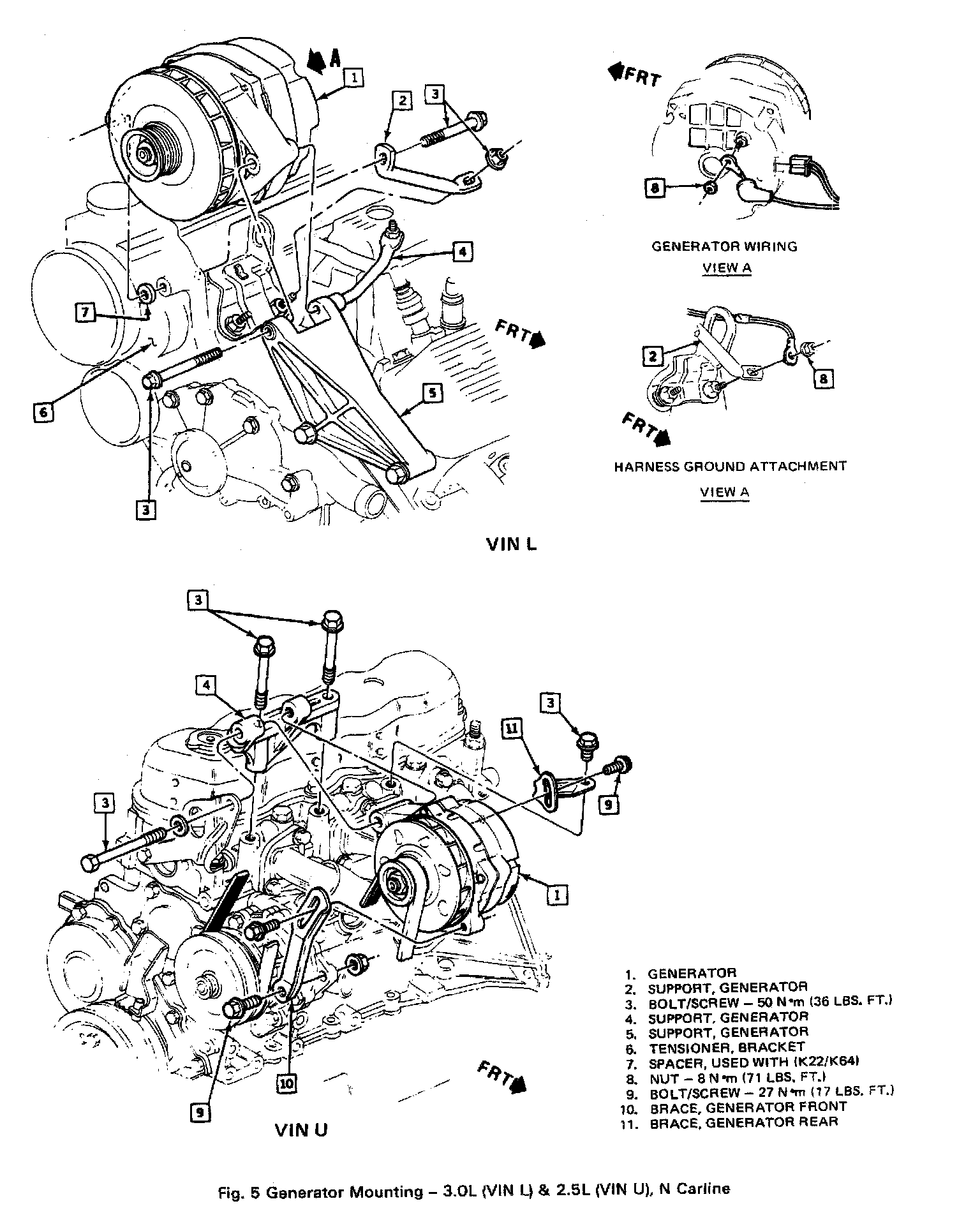

ALTERNATOR TORQUE SPECIFICATIONS

I Of III:

II Of III:

III Of III:

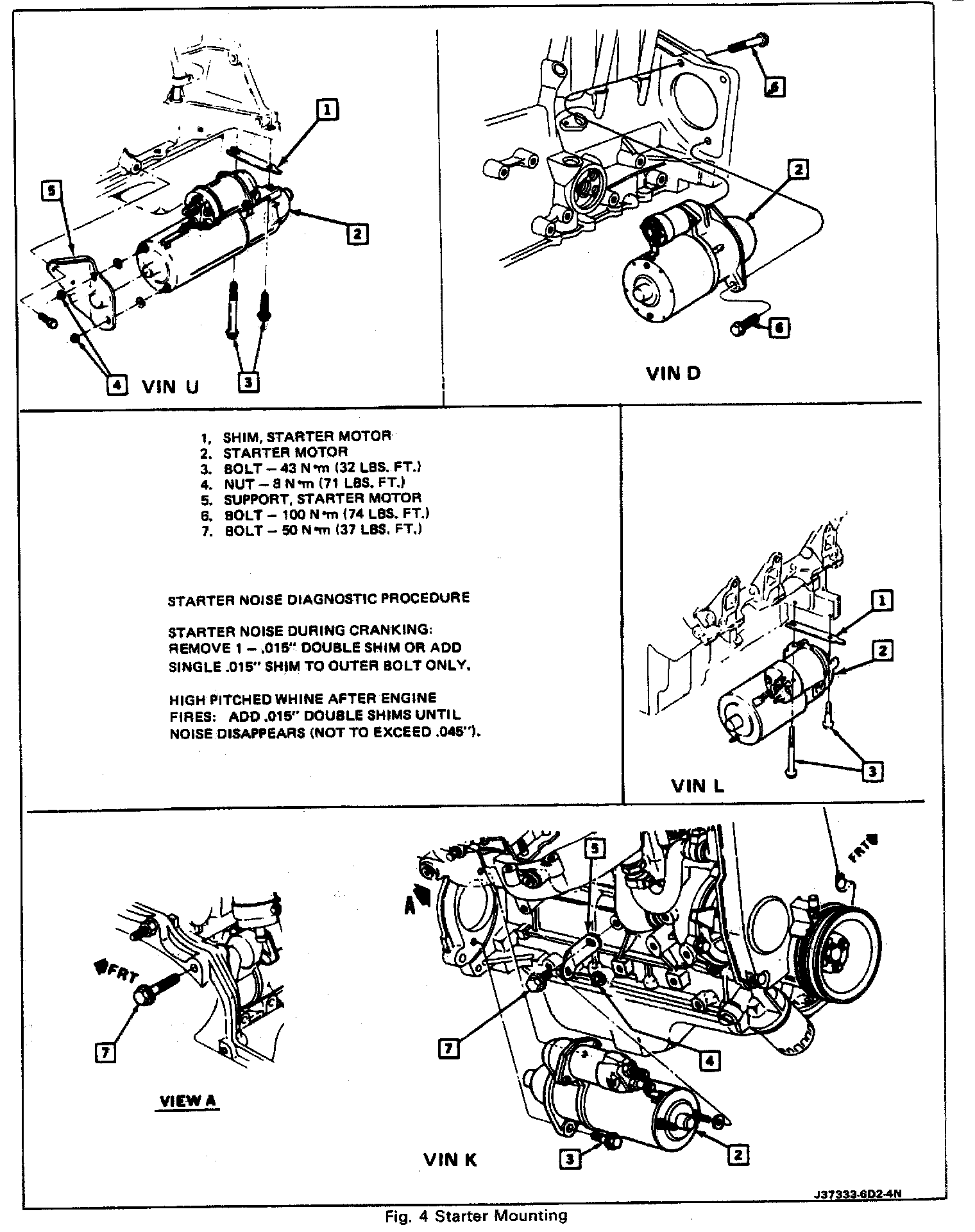

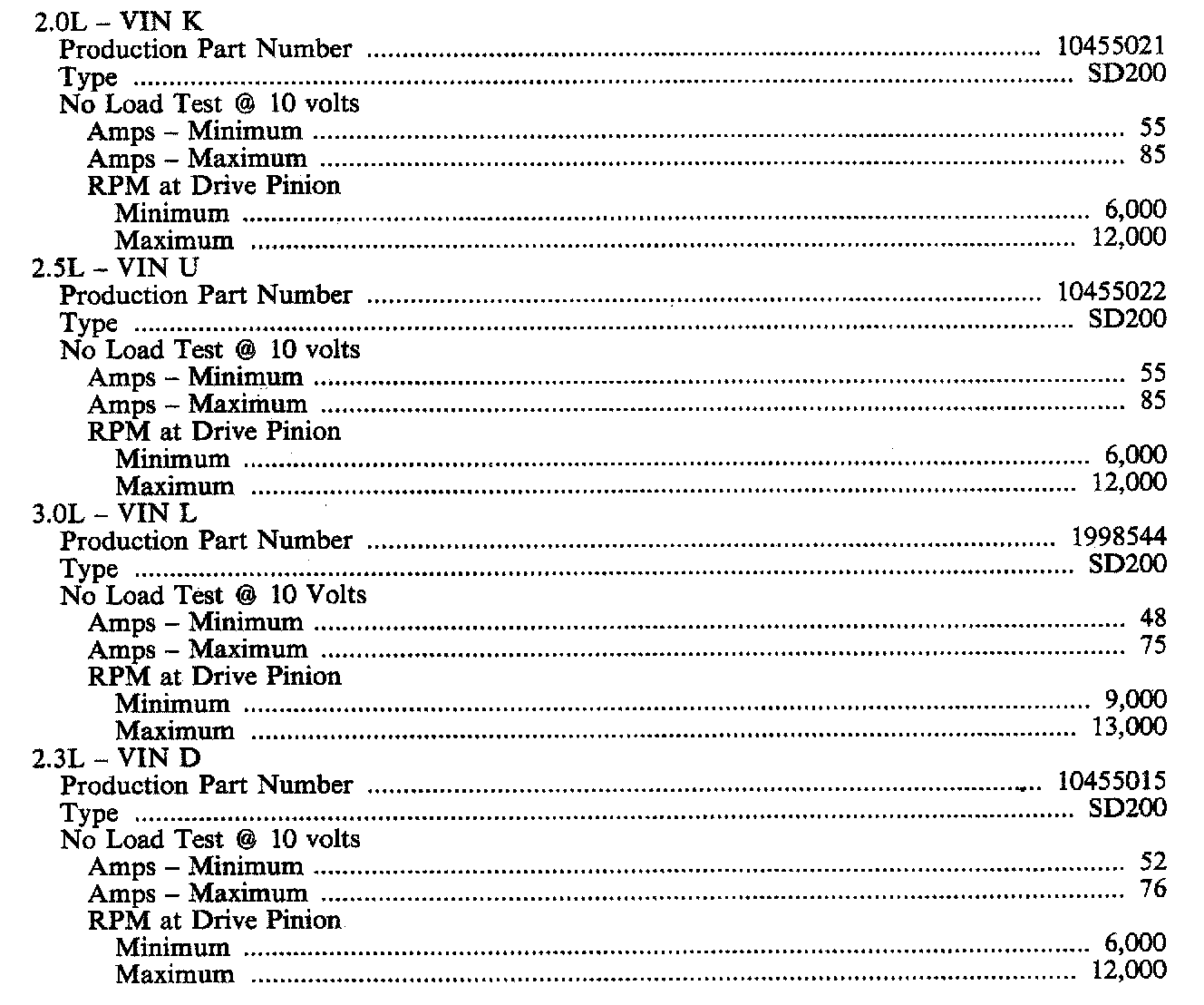

STARTER SPECIFICATIONS

STARTER TORQUE SPECIFICATIONS
