Fuse Panel Identification: Notes

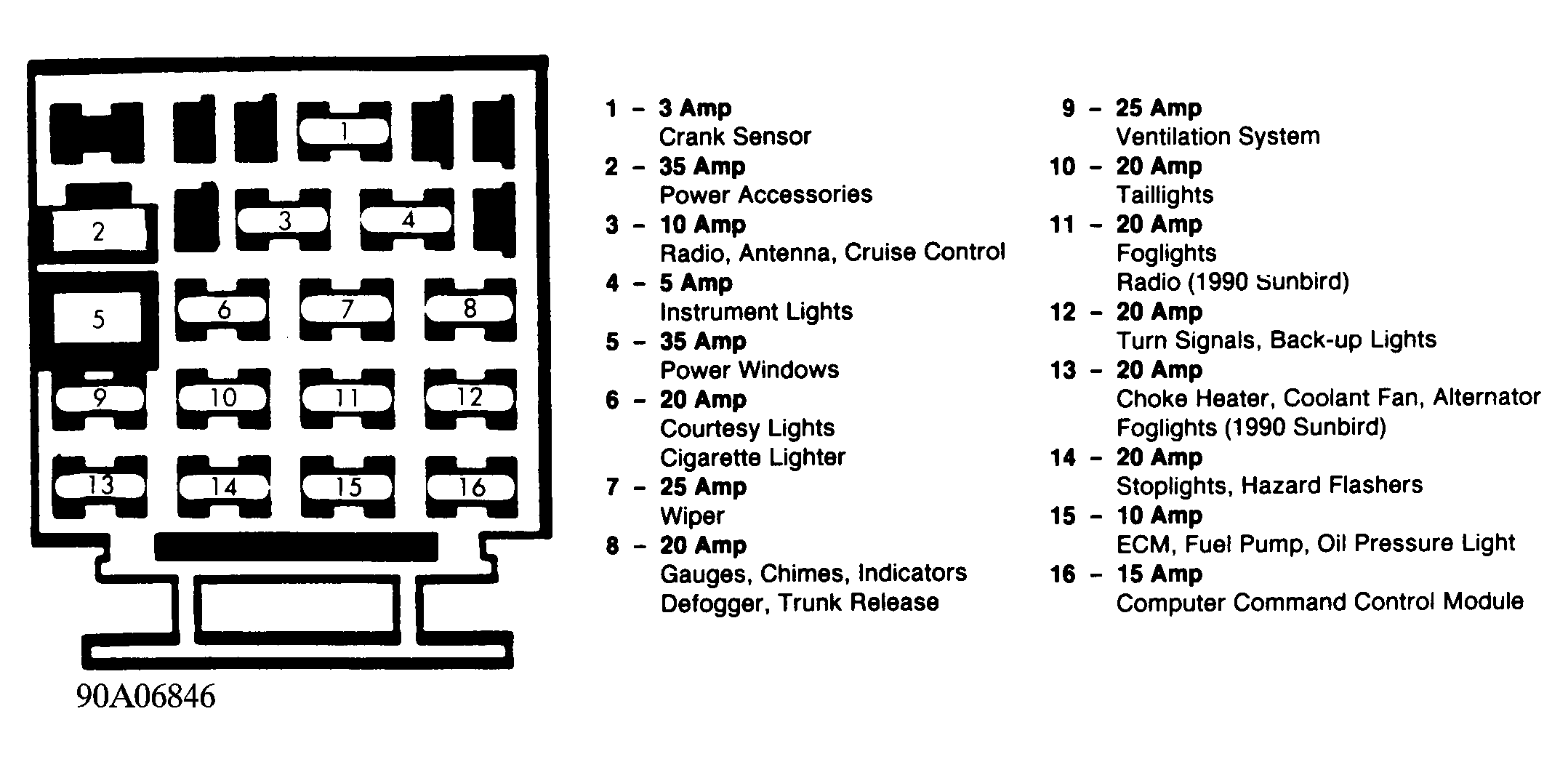

Fig 1: Fuse Panel Identification (Typical)

G90A06846

Courtesy of GENERAL MOTORS CORP.
