Inner Panel Cam: Installation

  1. Install inner panel cam (1) by locating over roller (3) of regulator (4). See Fig 1 .
  2. Install bolts (2). See Fig 1 .
  3. Install water deflector. SeeWATER DEFLECTOR  .
  4. Install sound absorber. SeeSOUND ABSORBER PAD  .
  5. Install trim panel. SeeTRIM PANEL  .

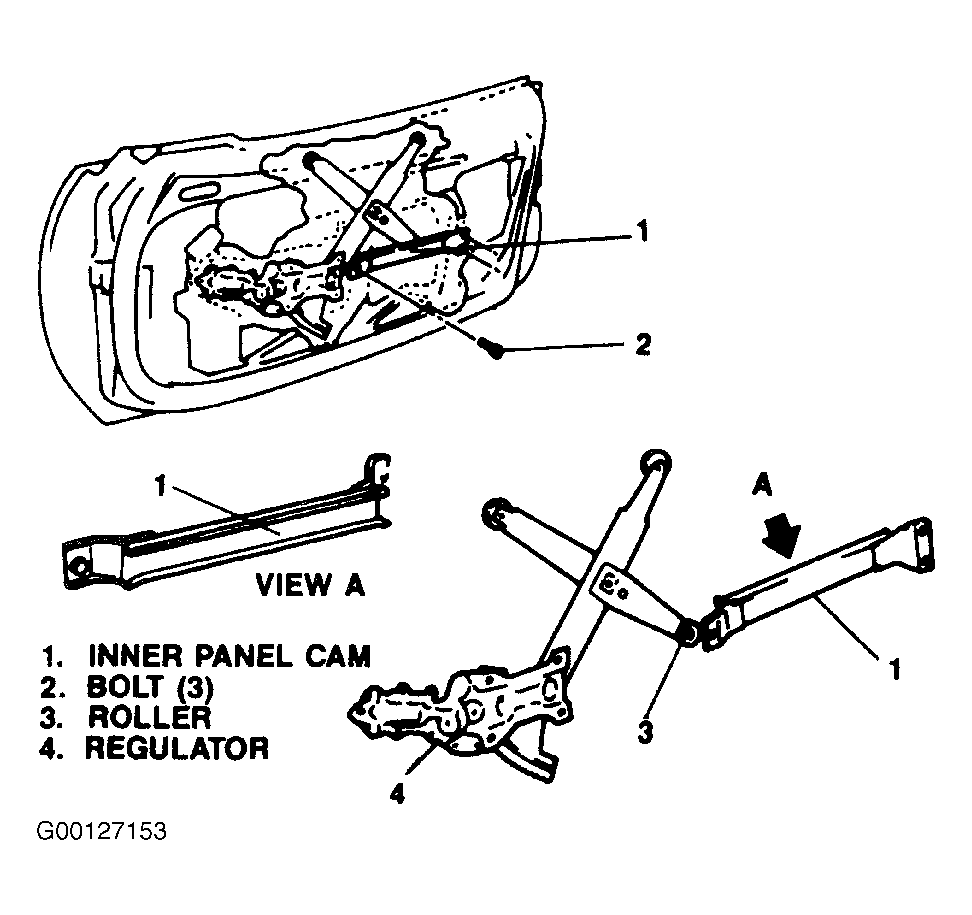

Fig 1: Identifying Inner Panel Cam (Reatta)
G00127153Courtesy of GENERAL MOTORS CORP.
