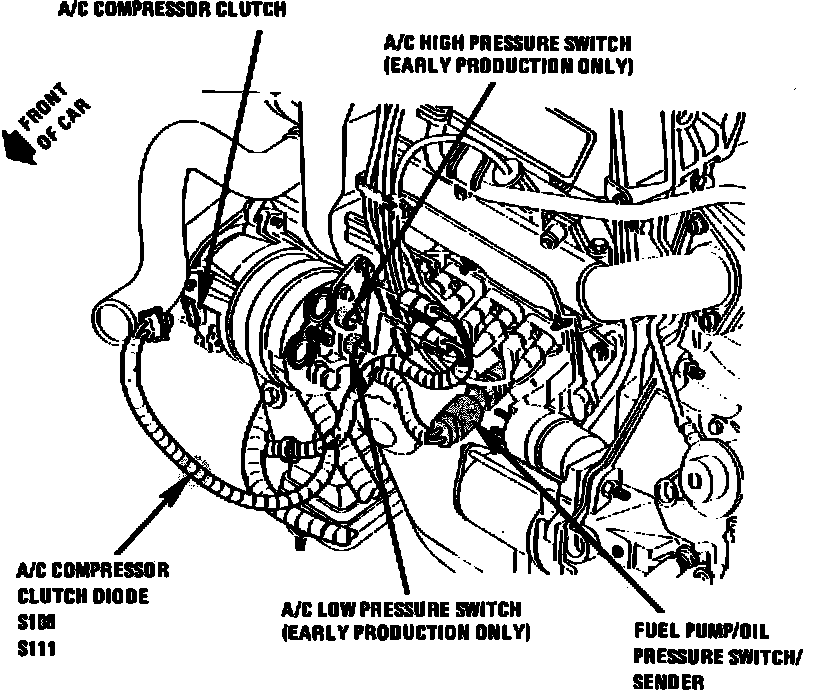

A/C Compressor Clutch Diode

RH Front Of Engine.:




Engine Harness, Near A/C Compressor Clutch Connector

Applicable to: 1991 Regal w/3.1L/V6-192
