Switch Continuity

If all seat functions do not operate, check power and ground at suspect seat switch. See Fig 1 .
If some seat functions do not operate, see Fig 1 .

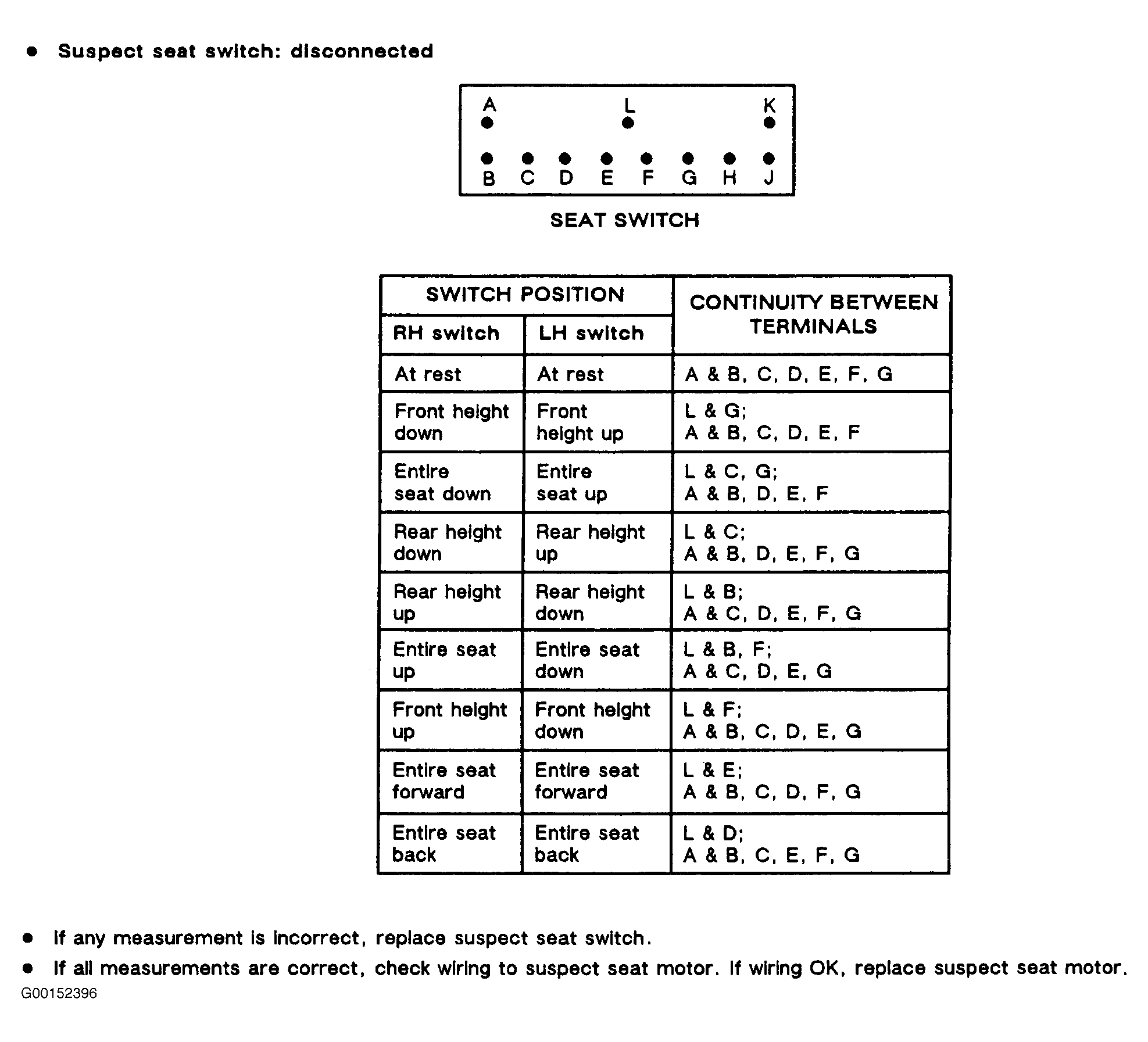

Fig 1: Testing Switch Continuity

Courtesy of GENERAL MOTORS CORP.
