Rear Door Module Assembly: Removal
- Remove trim panel. See TRIM PANEL . Remove water deflector. See WATER DEFLECTOR .
- Tape window to door.

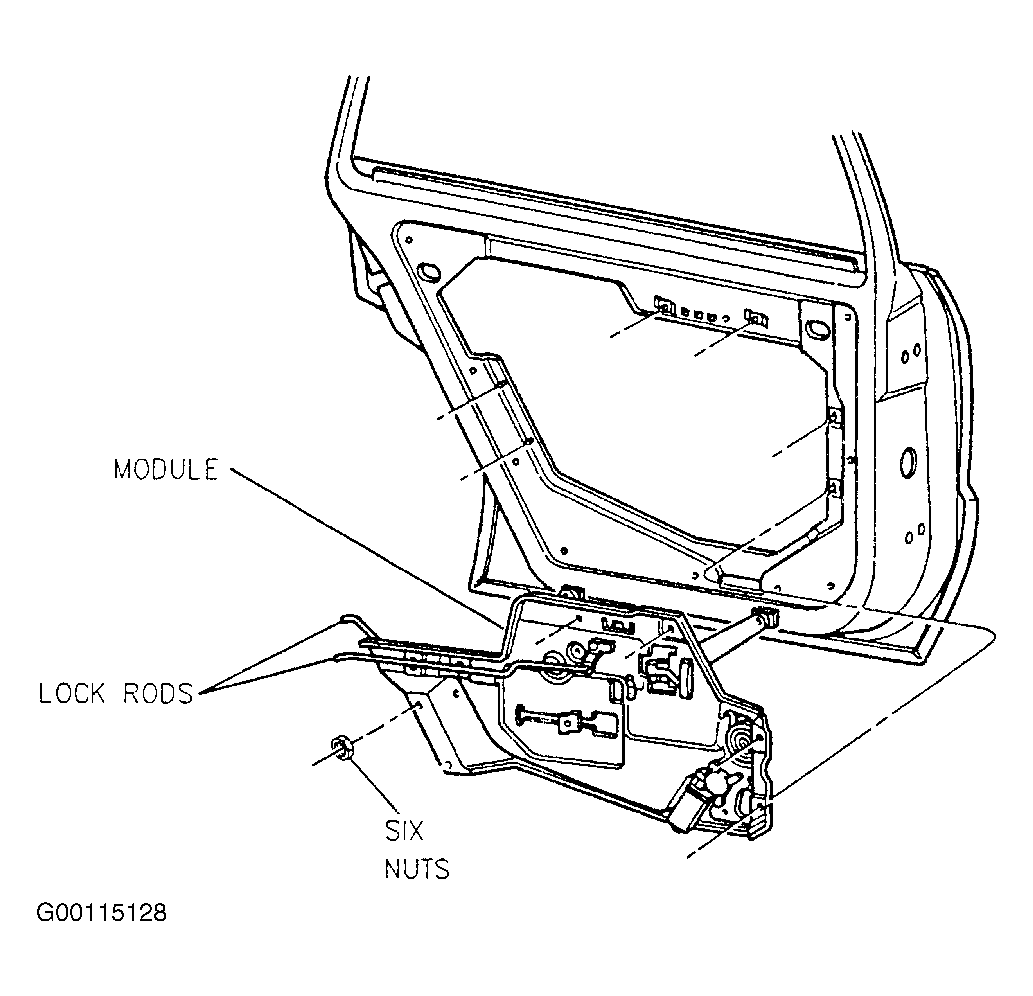

- Disconnect lock rods from latch. See Fig 1. Discard lock rod clips.
- Disconnect wire harness bundle and position out of the way.
- Remove six nuts on module and two nuts from window sash to module.
- Remove module.
