System Operation Check

Use the System Check as a guide to normal operation. See Fig 1.
If problem exists, repair by symptom. See Fig 2. Perform appropriate test. See SYSTEM TESTS .

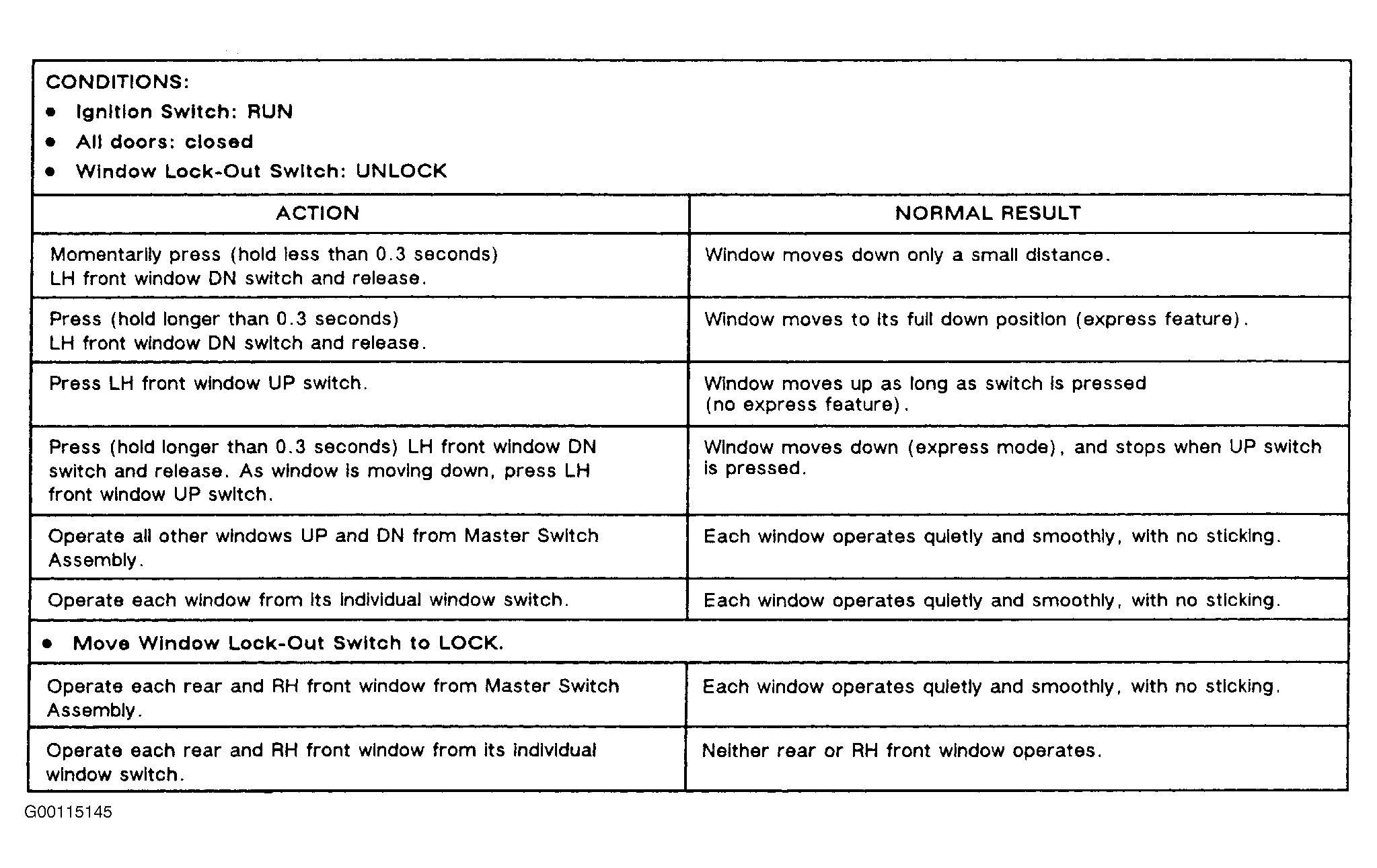

Fig 1: System Operation Check

Courtesy of GENERAL MOTORS CORP.

Fig 2: Power Window Symptom Table

Courtesy of GENERAL MOTORS CORP.
