Inline Resistor

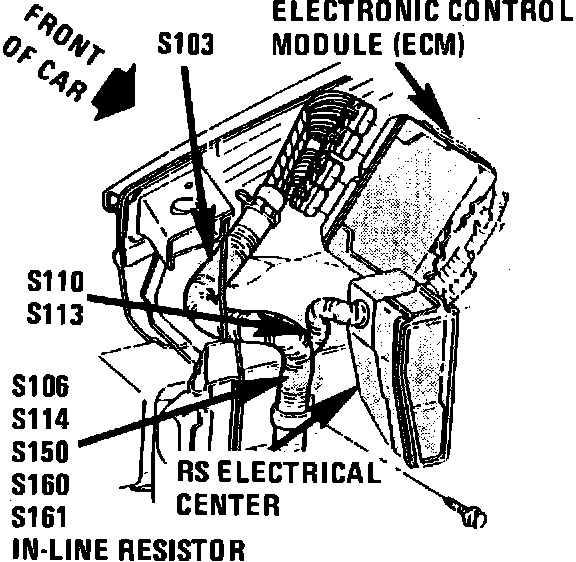

RH Front Of Engine Compartment:






The Inline Resistor is located in engine harness, approx. 4 cm from Electronic Control Module (ECM) breakout.
