Chime Module

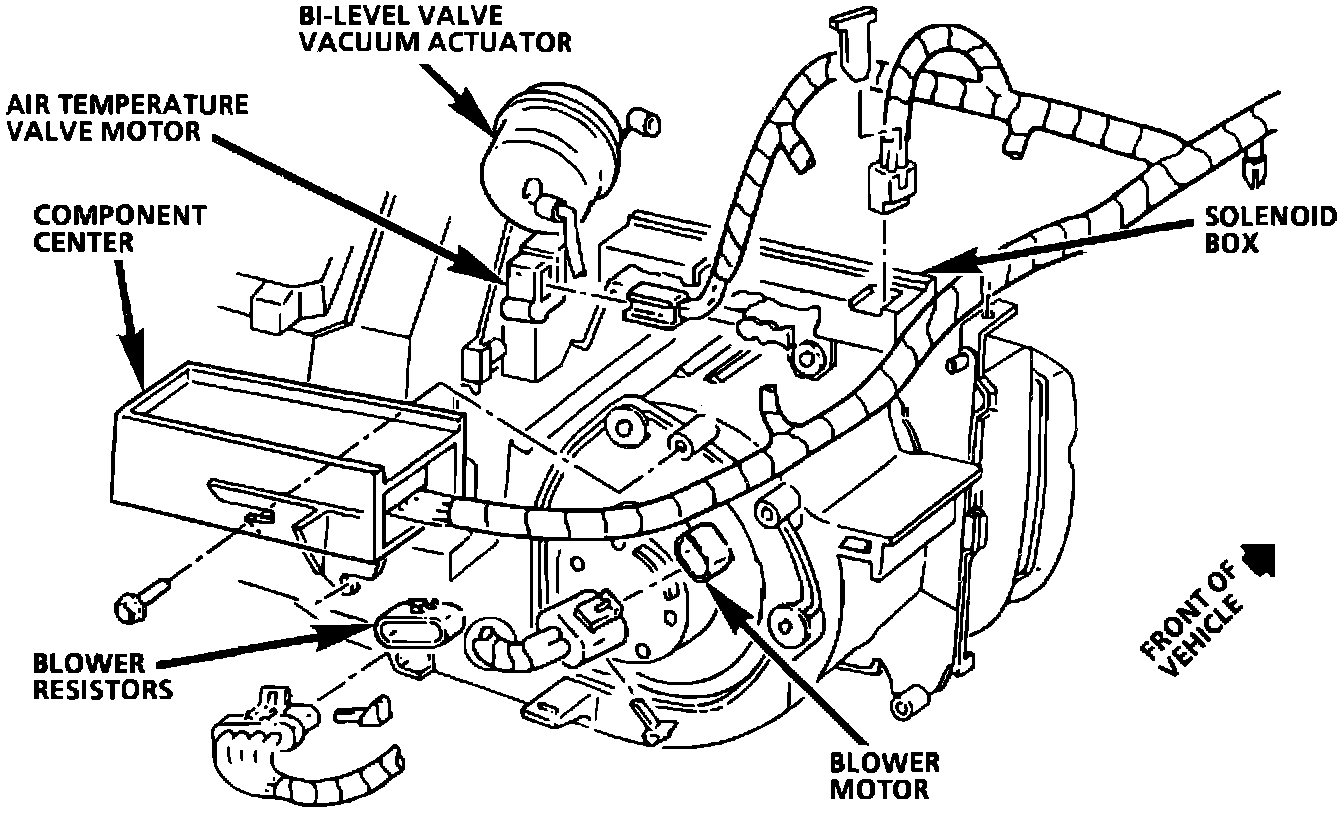

Behind RH Side Of Instrument Panel:

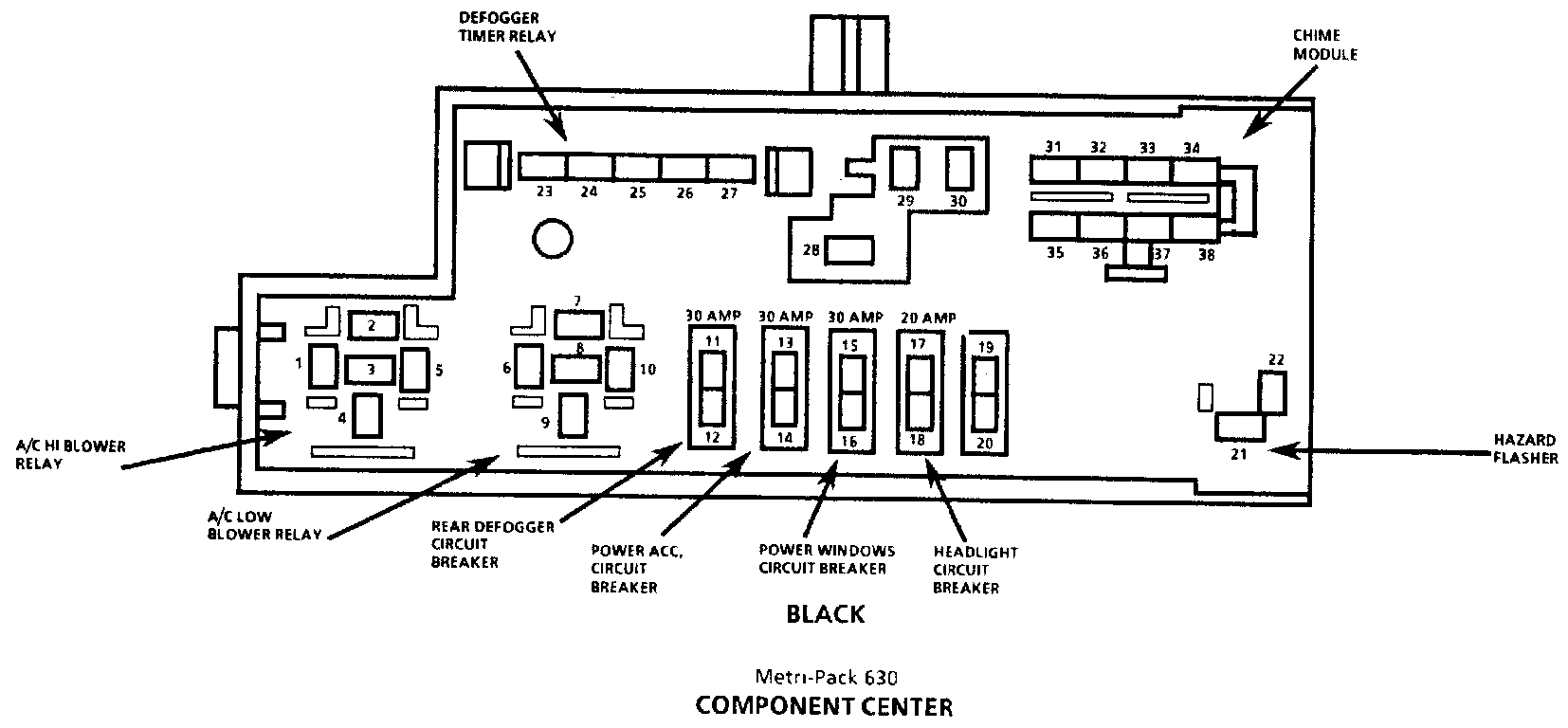

Component Center:







The Chime Module is located in the Component Center. The Componenet Center is located behind RH side of I/P.
