Manifold Pressure/Vacuum Sensor: Service and Repair

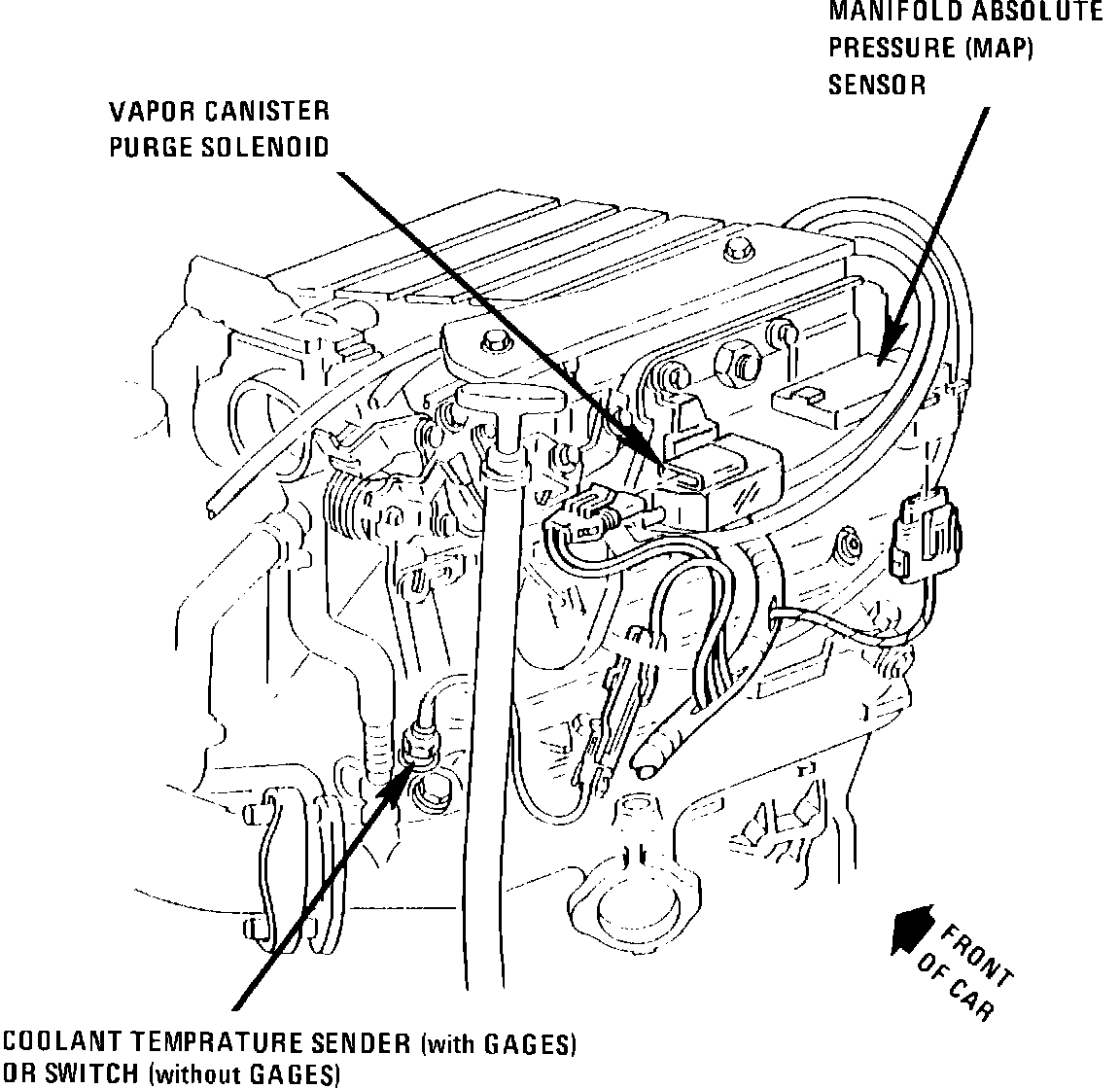

Rear of Engine:

REMOVAL

- Negative battery cable.
- MAP sensor retaining clip.
- Electrical connector.
- Vacuum hose.
- Sensor.

INSTALLATION

- Electrical connector.
- Vacuum hose.
- MAP sensor retaining clip.
- Negative battery cable.
