Ignition Switch

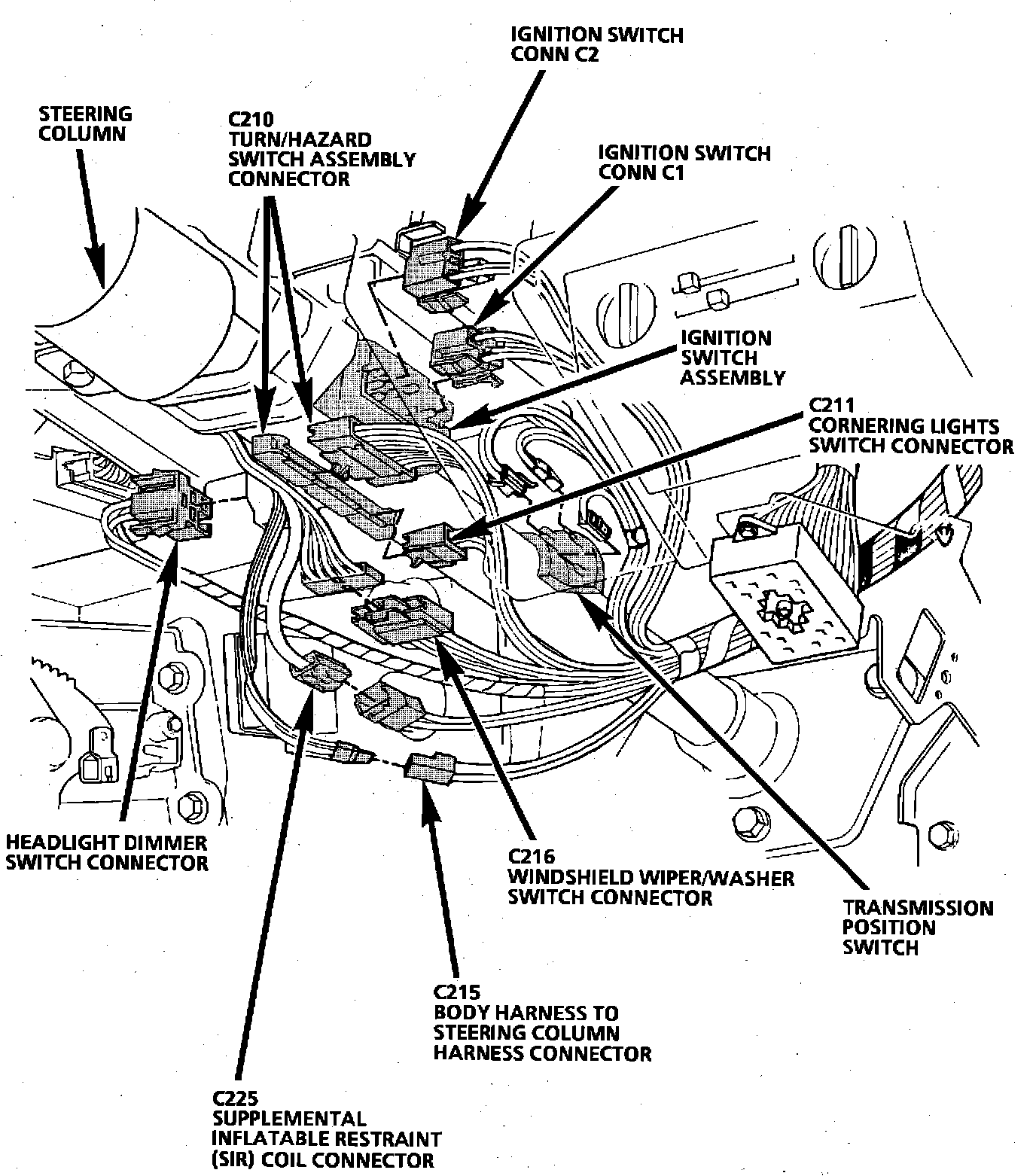

Component Location View. Base of Steering Column:

Ignition Switch - Mounted on upper RH side of Steering Column
