Air Injection Control Valve: Service and Repair

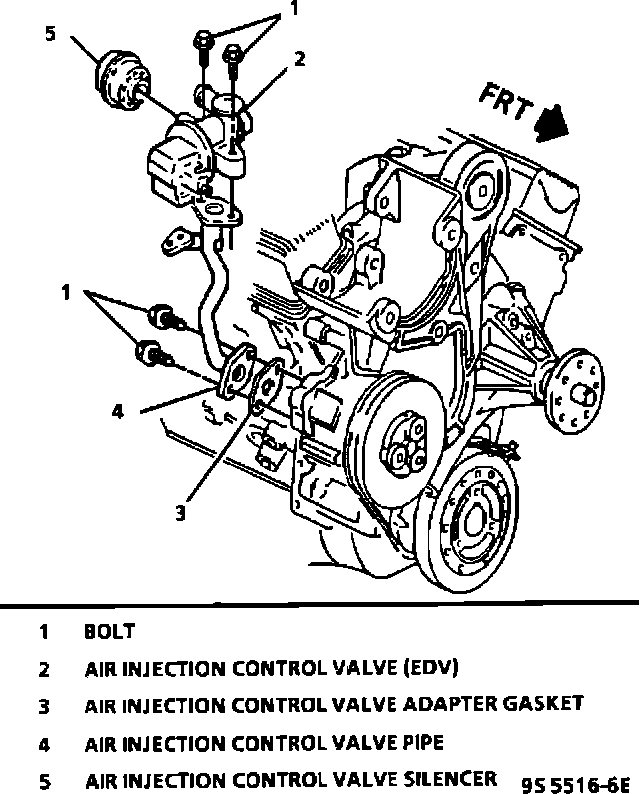

A.I.R. Control Valve Removal And Installation:

1. Disconnect negative battery terminal.
2. Remove adapter bolts.
3. Remove air outlet hoses from valve.
4. Remove splash guard, control valve cover.
5. Disconnect electrical connectors and hoses to valve.
6. Remove A.I.R. control valve.
7. Reverse removal procedures to install.
