Master Power Window Switch Assembly

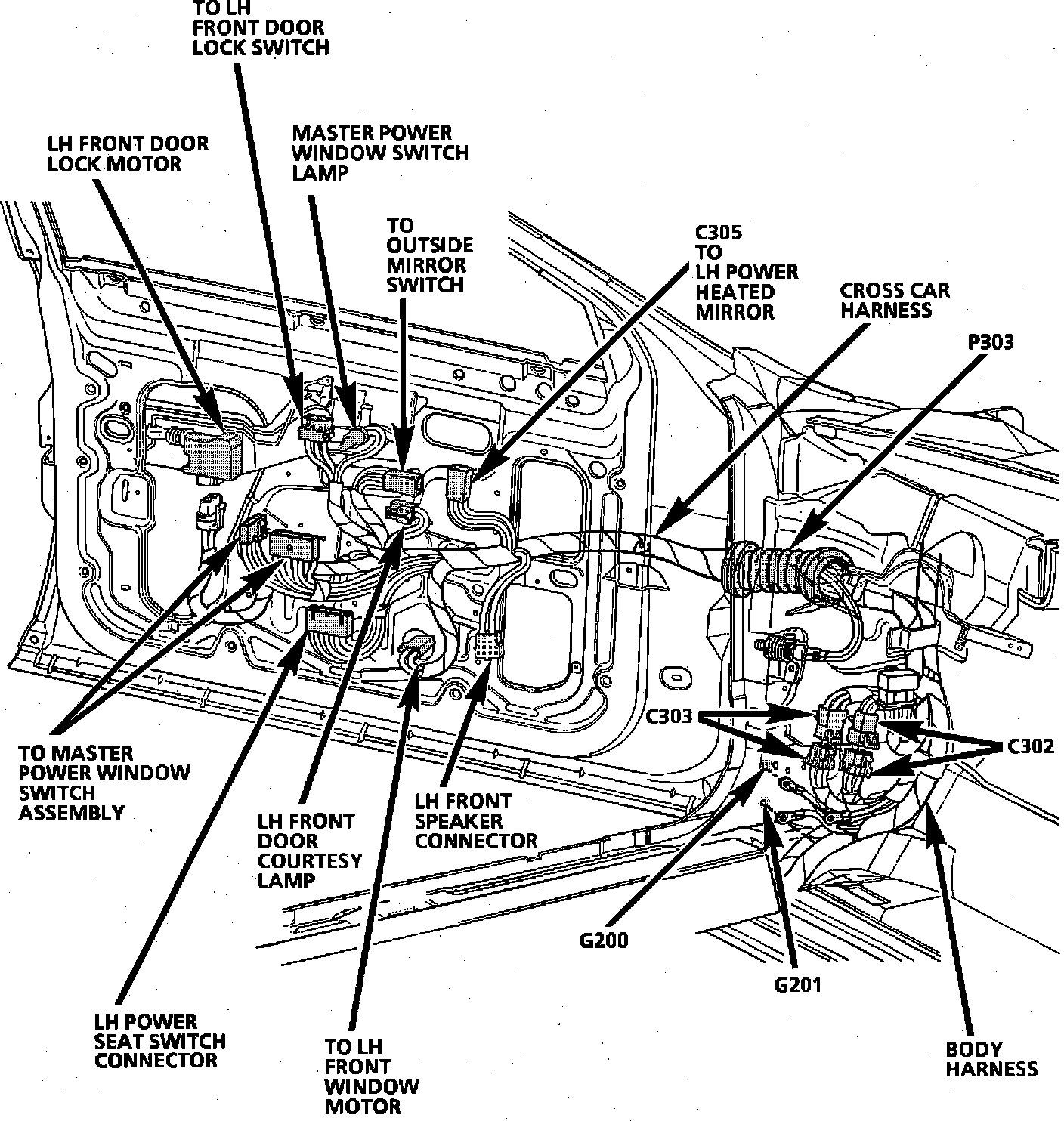

Component Location View. LH Front Door and "A" Pillar:

LH Front Door Armrest
