Window Control Module: Installation

  1. Install module (2). See Fig 1 .
  2. Connect wiring connector (4).
  3. Install driver's door water deflector. See WATER DEFLECTOR
  4. Install driver's door trim panel. See DOOR TRIM PANEL  .

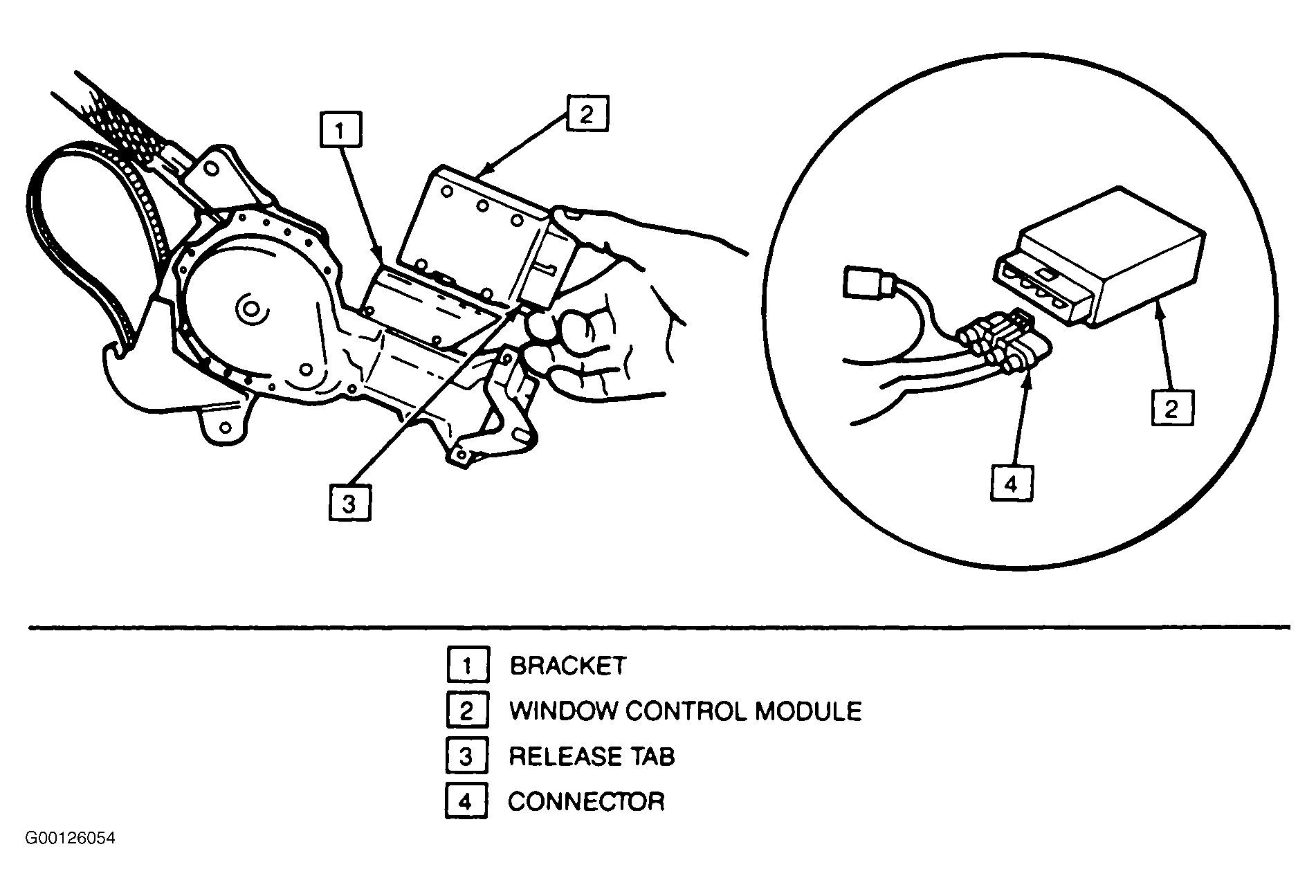

Fig 1: Removing & Installing Window Control Module
G00126054Courtesy of GENERAL MOTORS CORP.
