Test C: Power Window Control Module Test

To perform test procedure, see Fig 1 .

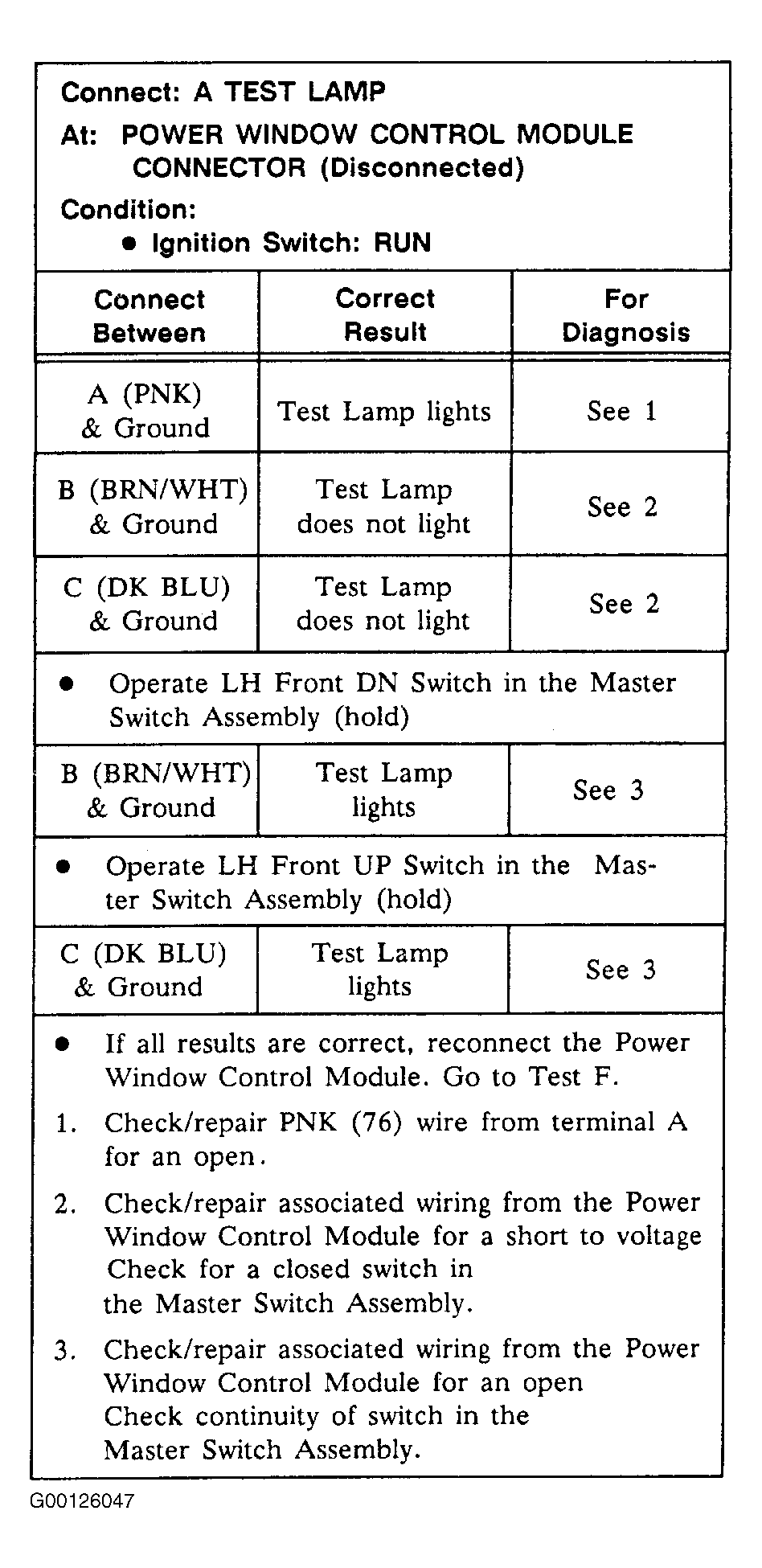

Fig 1: Power Window Control Module Test
G00126047Courtesy of GENERAL MOTORS CORP.
