Electronic/Powertrain Control Module (ECM/PCM)

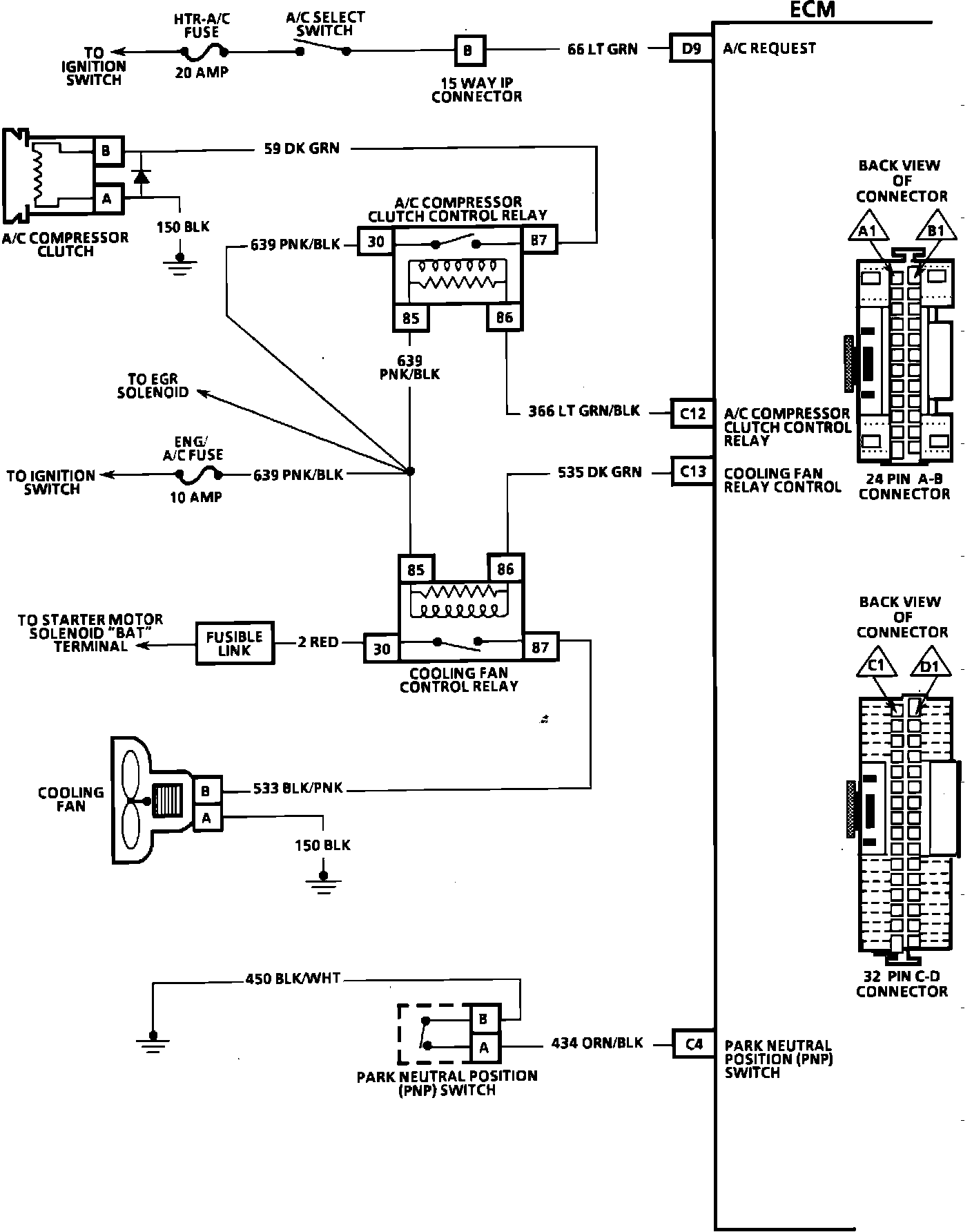

ECM Wiring Diagram:

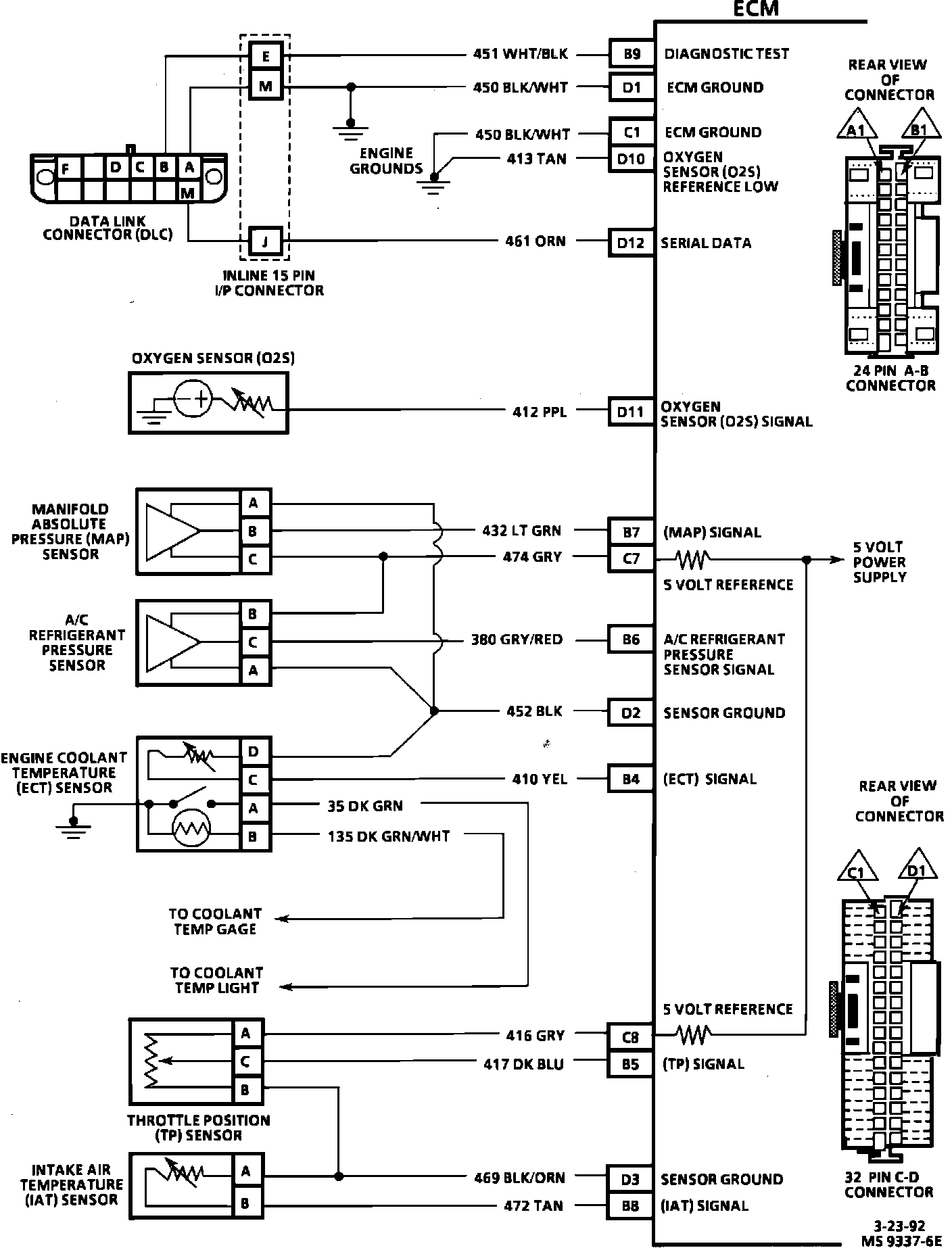

ECM Wiring Diagram:

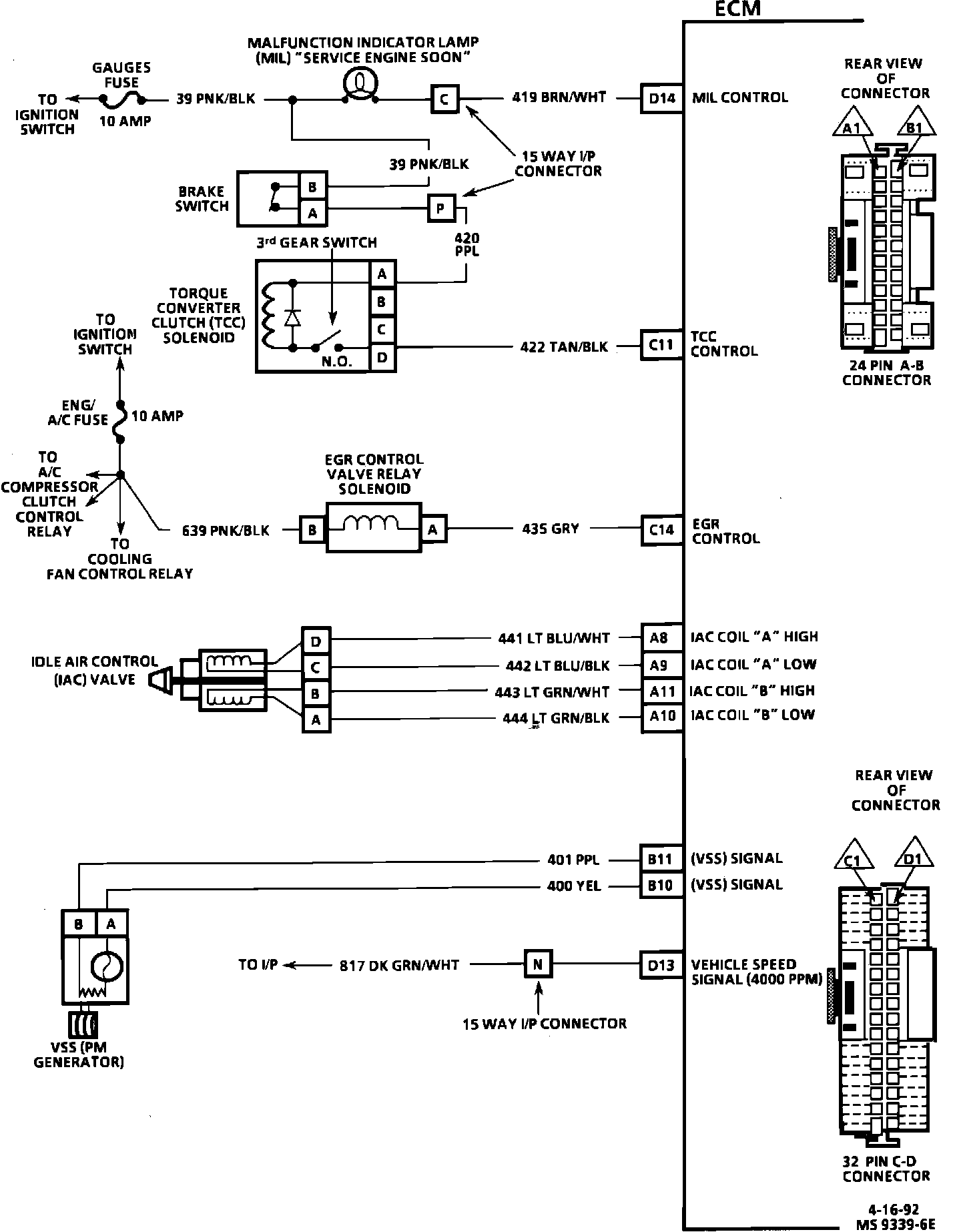

ECM Wiring Diagram:

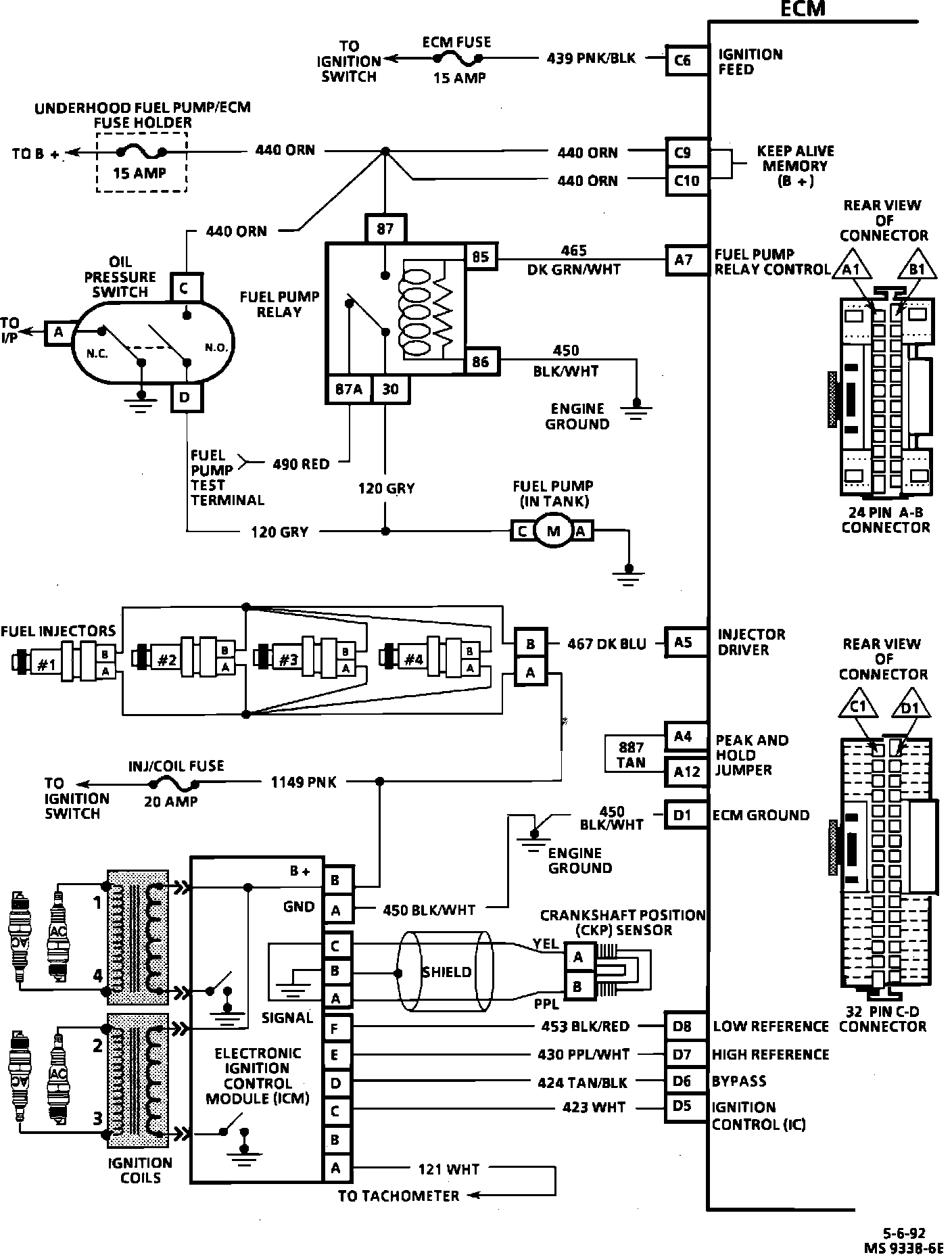

ECM Wiring Diagram:
