Code 26 - Quad-Driver Error (3 Of 3)

NOTE: Test number refers to number on diagnostic chart.

4)

This step determines if problem is circuit or component. Factory-installed ECM has an internal fuse and is unlikely to need replacement.

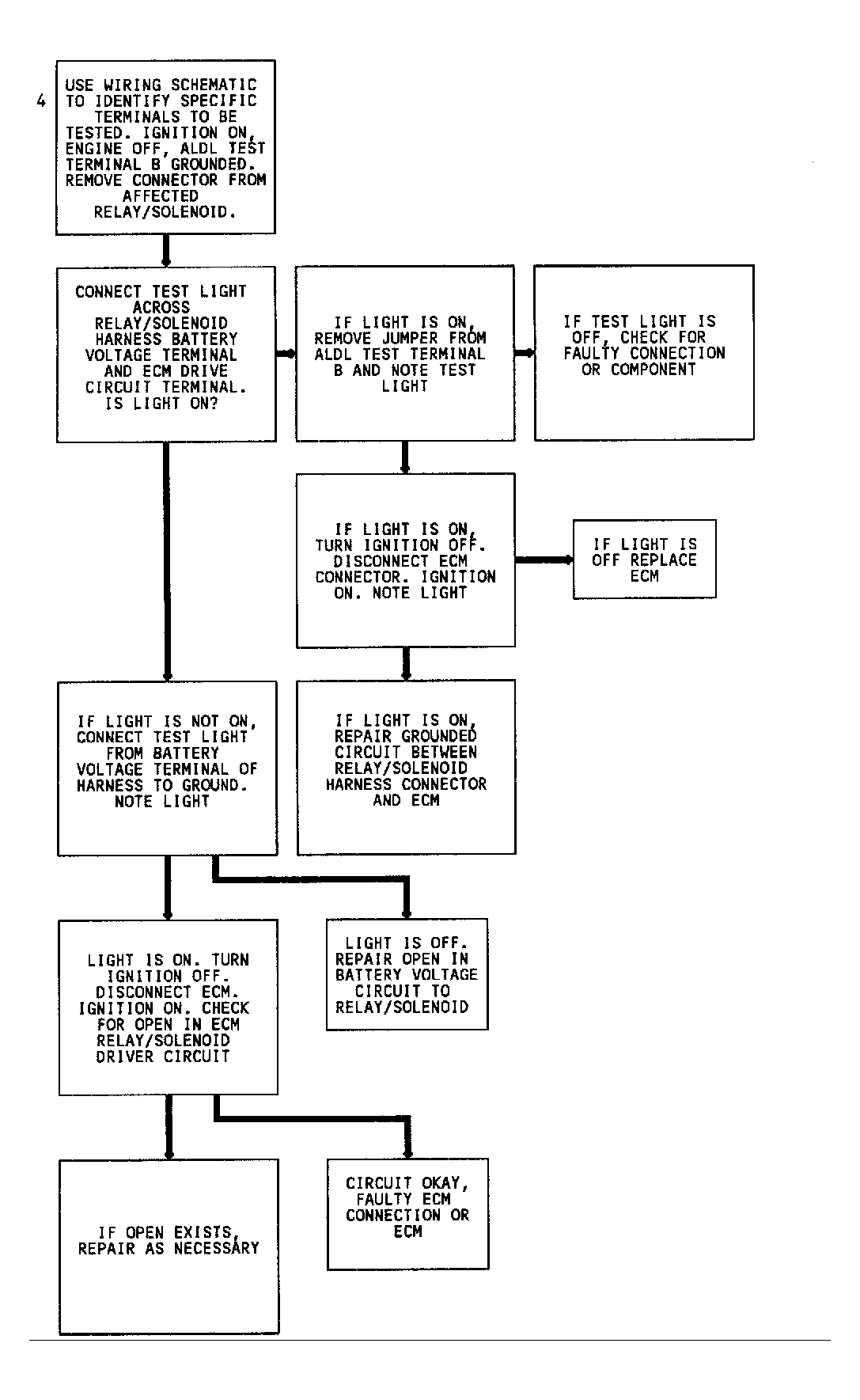

Fig 1: Code 26 Flow Chart (3 of 3) Quad-Driver Error
