Power Window Switch

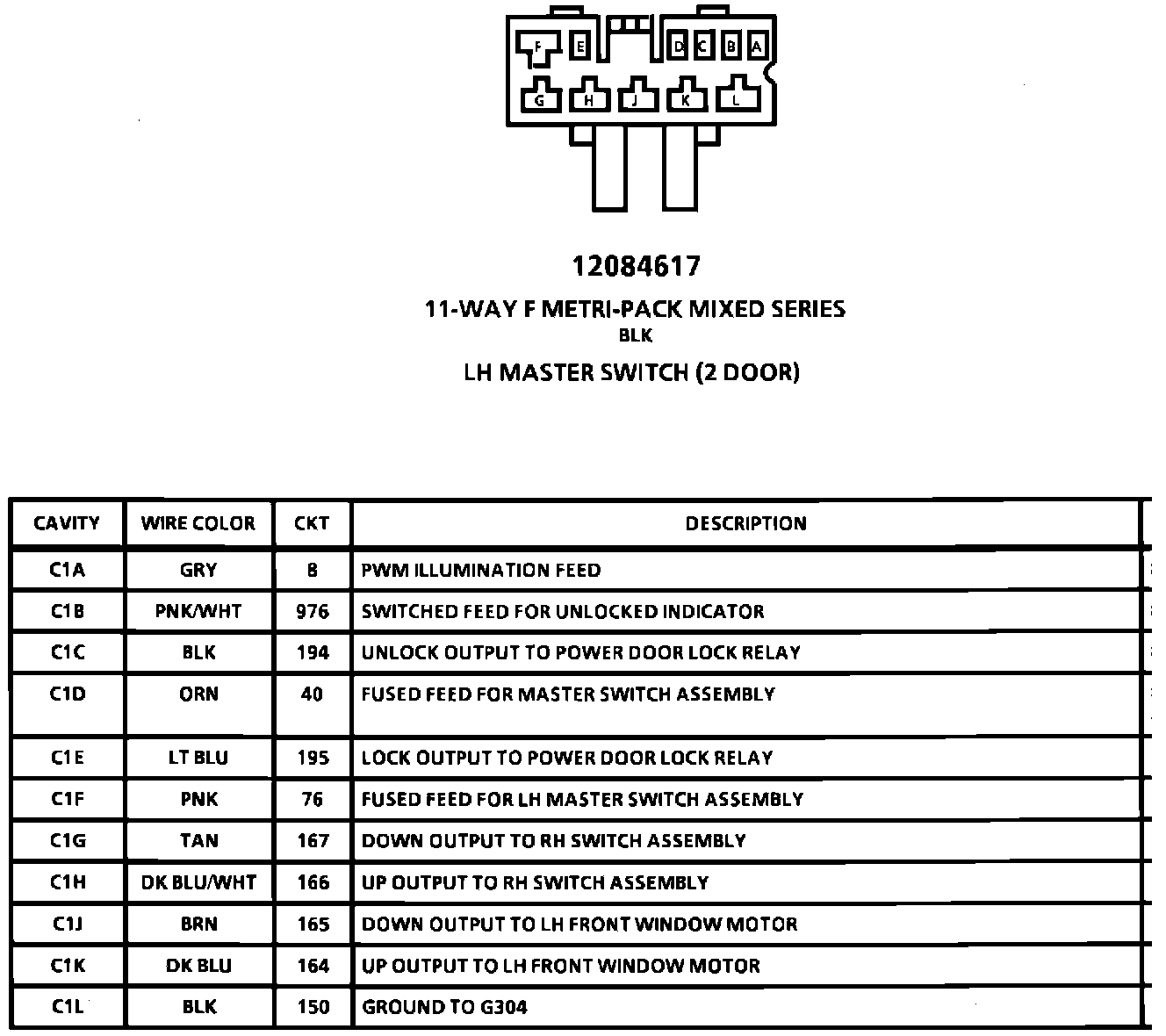

LH Master Switch (2 Door) Connector:



RH Power Window (2 Door) Connector:



LH Master Switch, RH Power Window Switch:



Rear Window Switch Connector:
