Manifold Pressure/Vacuum Sensor: Service and Repair

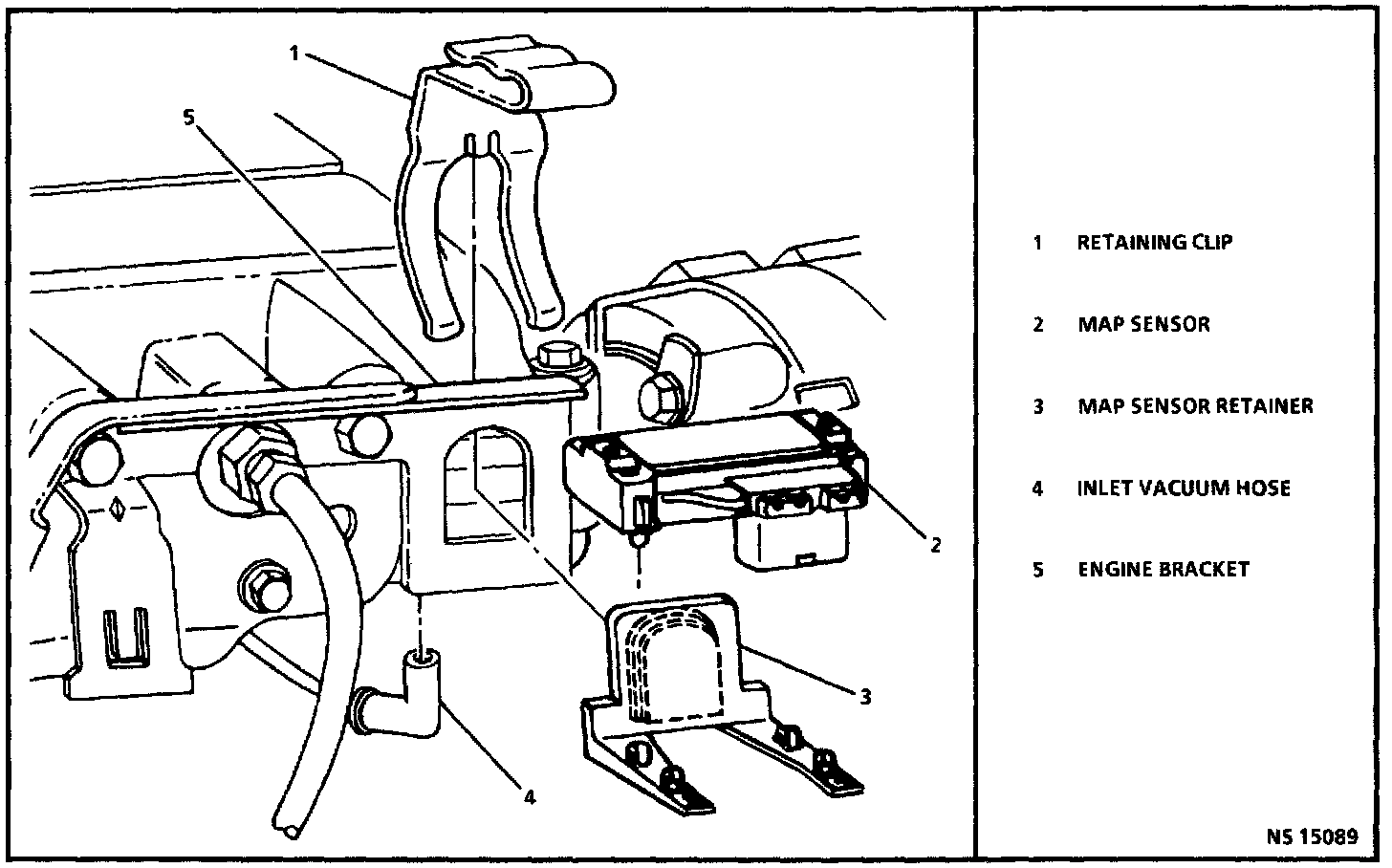

Rear of Engine:

MAP Sensor Service:

REMOVAL
- Negative battery cable.
- MAP sensor retaining clip from engine bracket.
- Electrical connector.
- Inlet vacuum hose.
- MAP sensor retainer and MAP sensor.
- Retainer from MAP sensor.


INSTALLATION
- MAP sensor to retainer.
- Electrical connector.
- Inlet vacuum hose.
- MAP sensor and retainer to engine bracket.
- Negative battery cable.
- Retaining clip.
