Power Window Switch

SEDAN

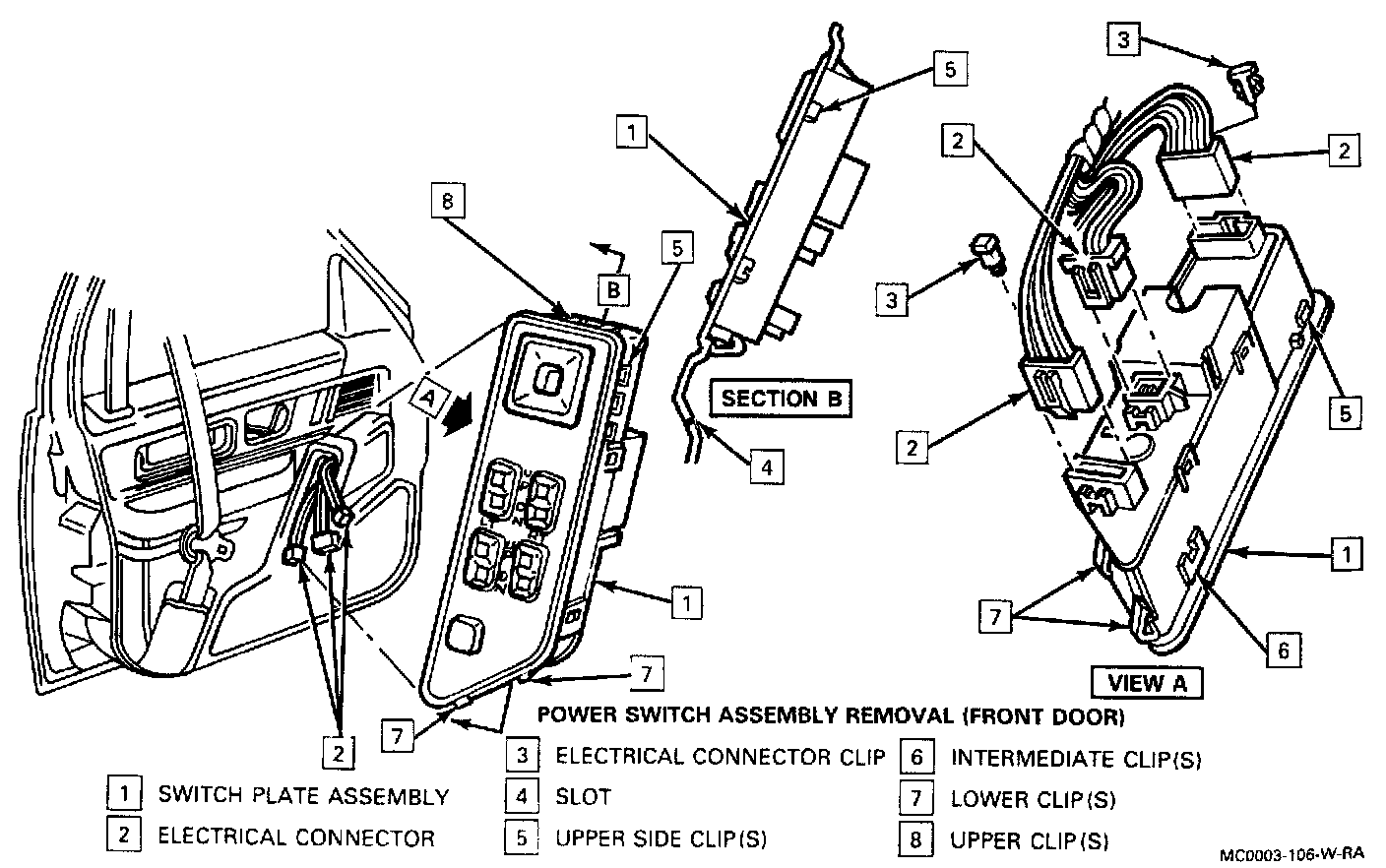

Power Switch Assembly:

NOTICE: When removing a door trim panel or switch plate, the ignition switch must be in the OFF position. This will eliminate the possibility of shorting out the switch if a screwdriver, awl or metal object is used to remove the switch from the harness.

Remove or Disconnect

1. Switch assembly by prying lower clips, using a puny knife, through slot in trim panel at bottom of switch housing.
^ Lift lower part of switch assembly from housing using hand.
2. Intermediate clips using a nylon spatula.
^ Slide spatula between side of switch assembly and housing, pry loose.
3. Upper clips.
^ Remove from assembly.
4. Connectors.

Install or Connect

1. Connectors.
2. Upper clips to switch assembly.
^ Rebend to original shape and slide into position.
3. Switch assembly to trim panel.
^ Press into position with hand.
