Anti-Lock Brake System - BOSCH 2U: Wiring Diagram

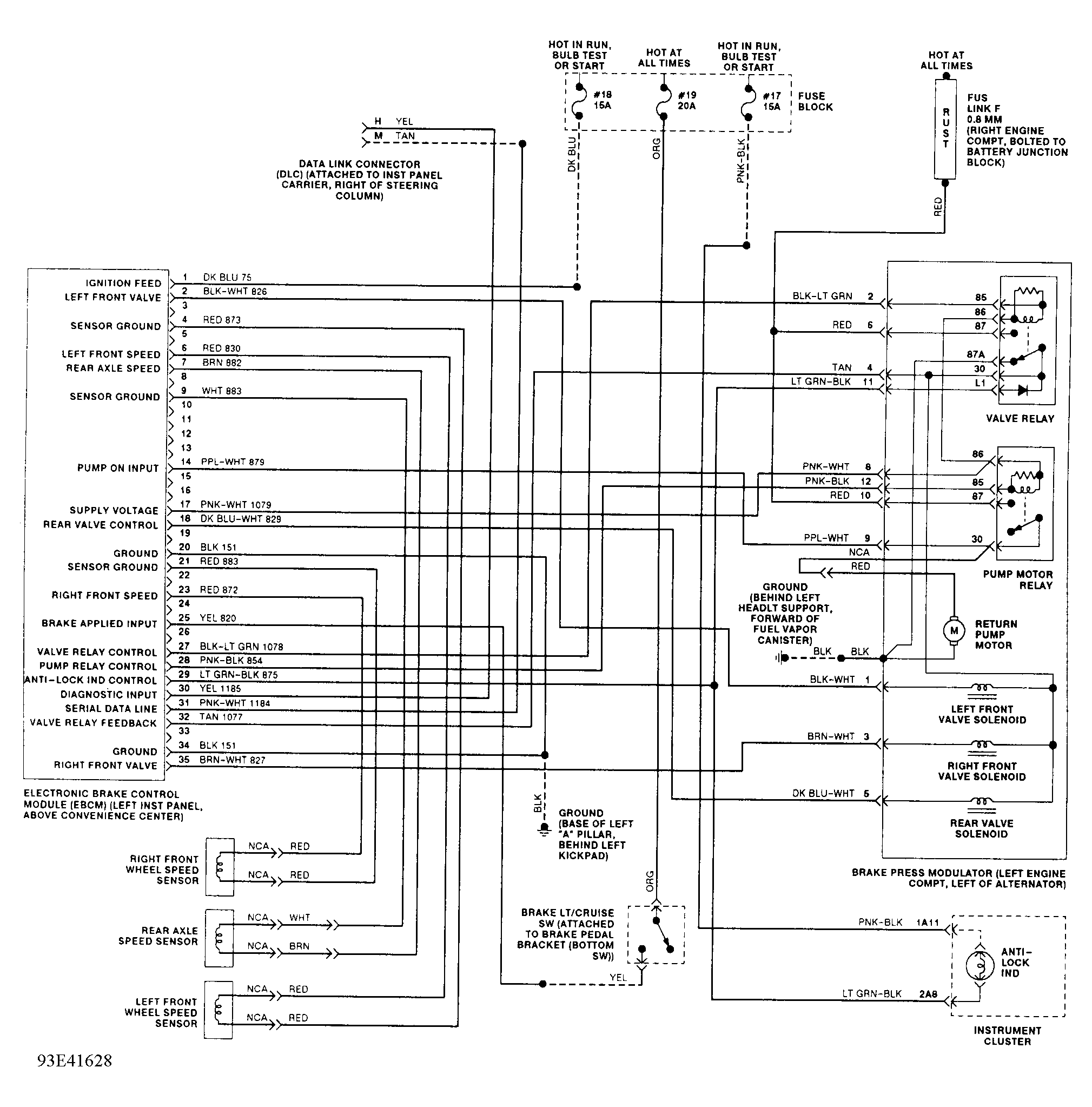

Fig 1: Anti-Lock Brake System Wiring Diagram (Caprice & Roadmaster)

G93E41628
