Wiring Diagrams

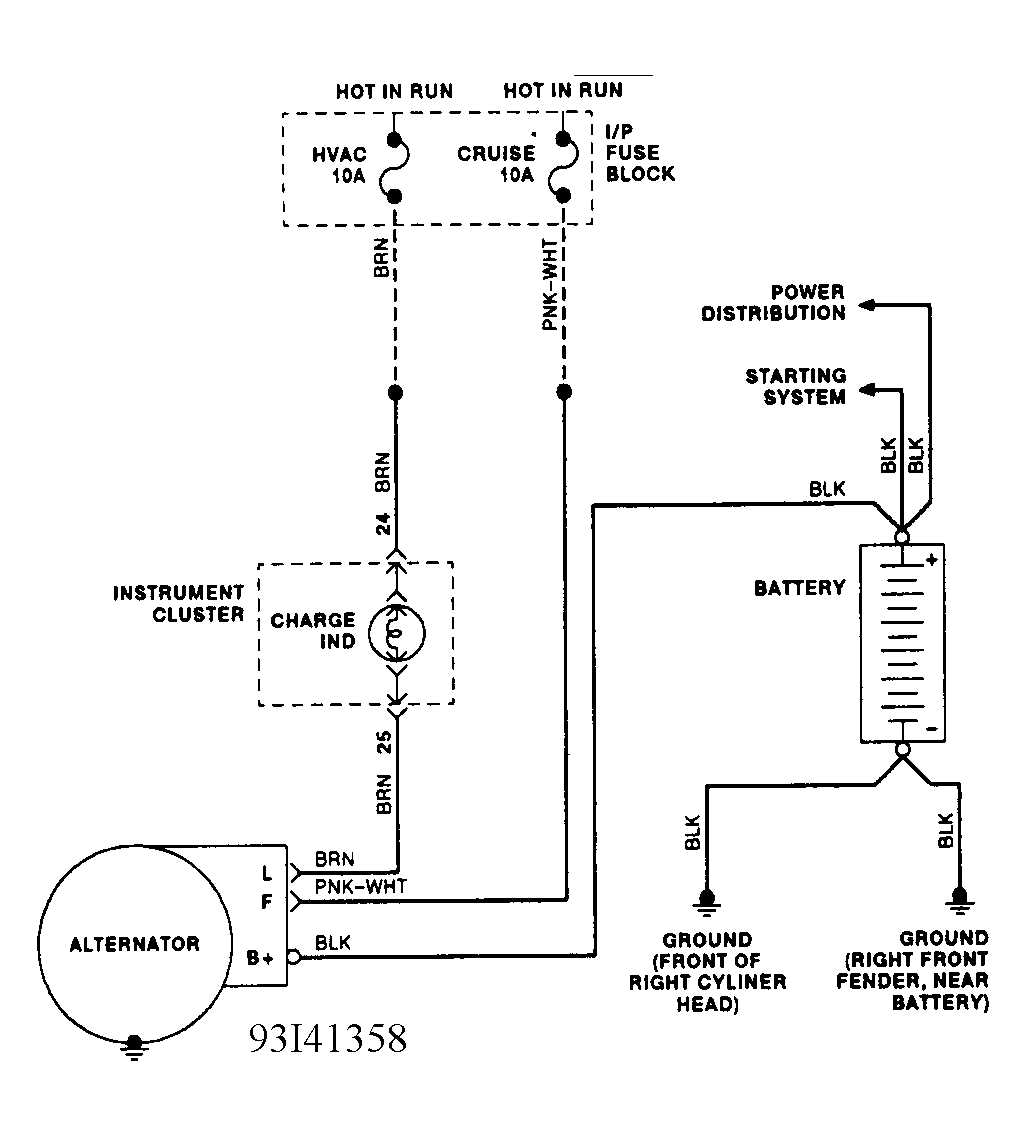

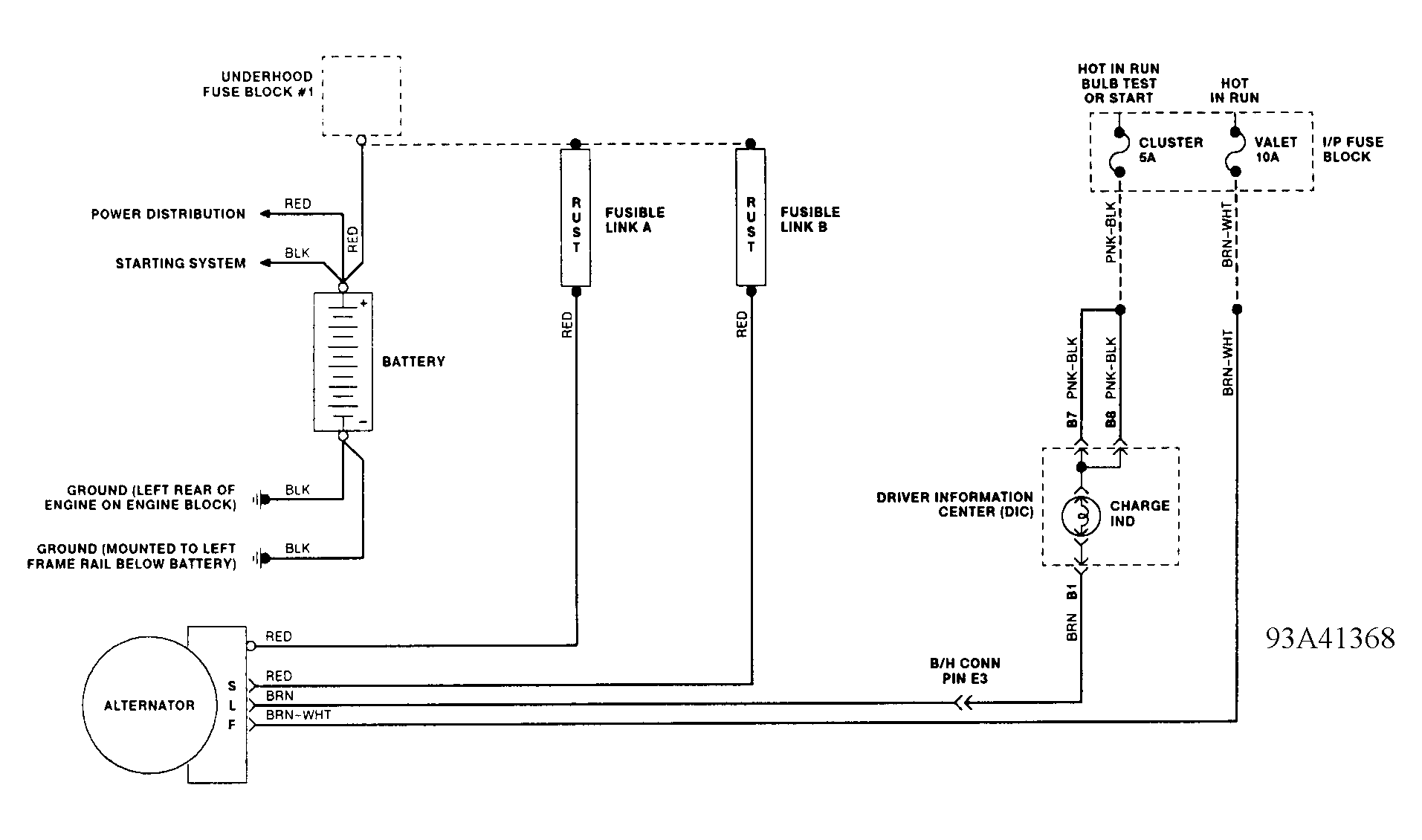

Fig 1: Charging System Schematic (Achieva, Grand Am & Skylark)

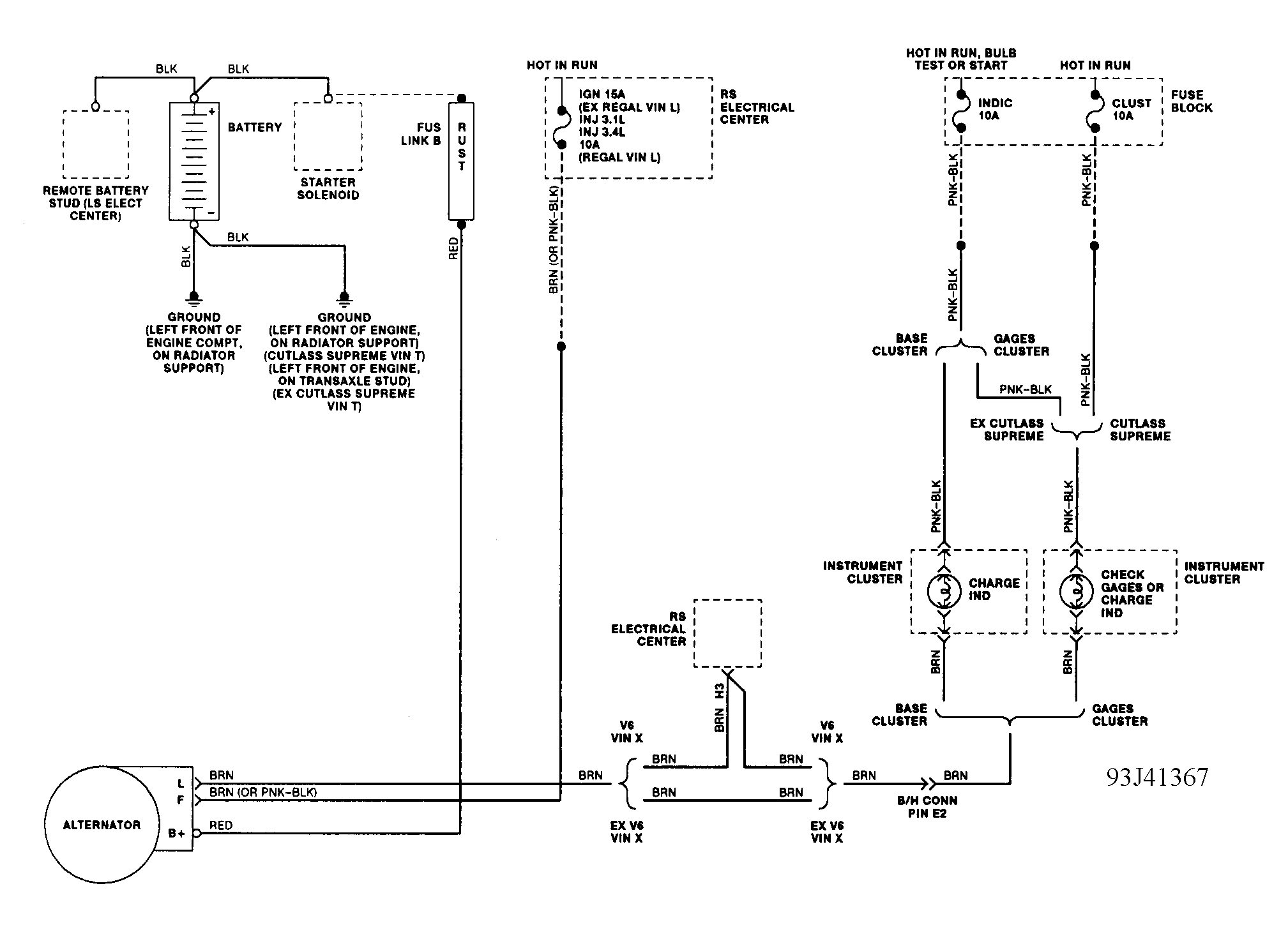

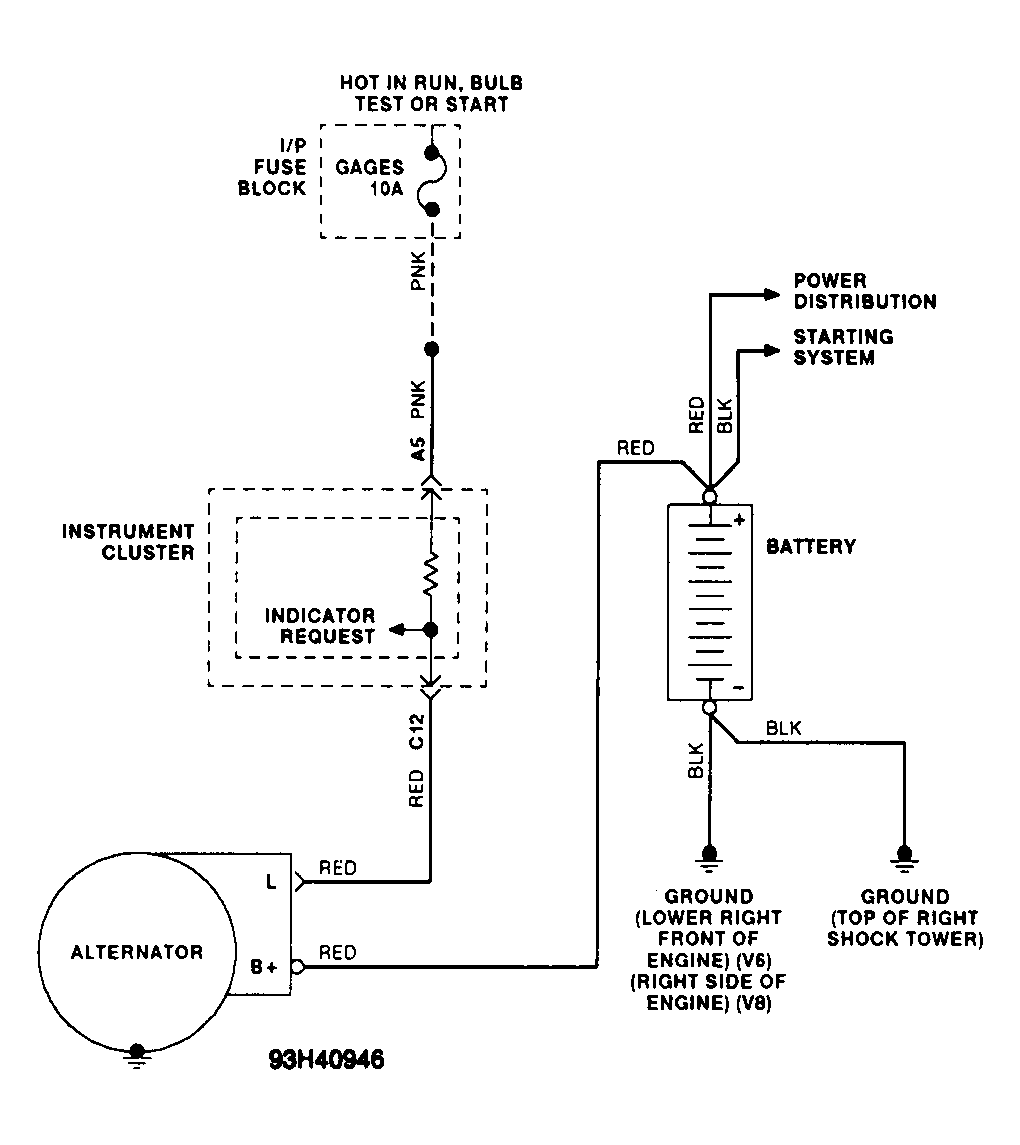

Fig 2: Charging System Schematic (Beretta & Corsica)

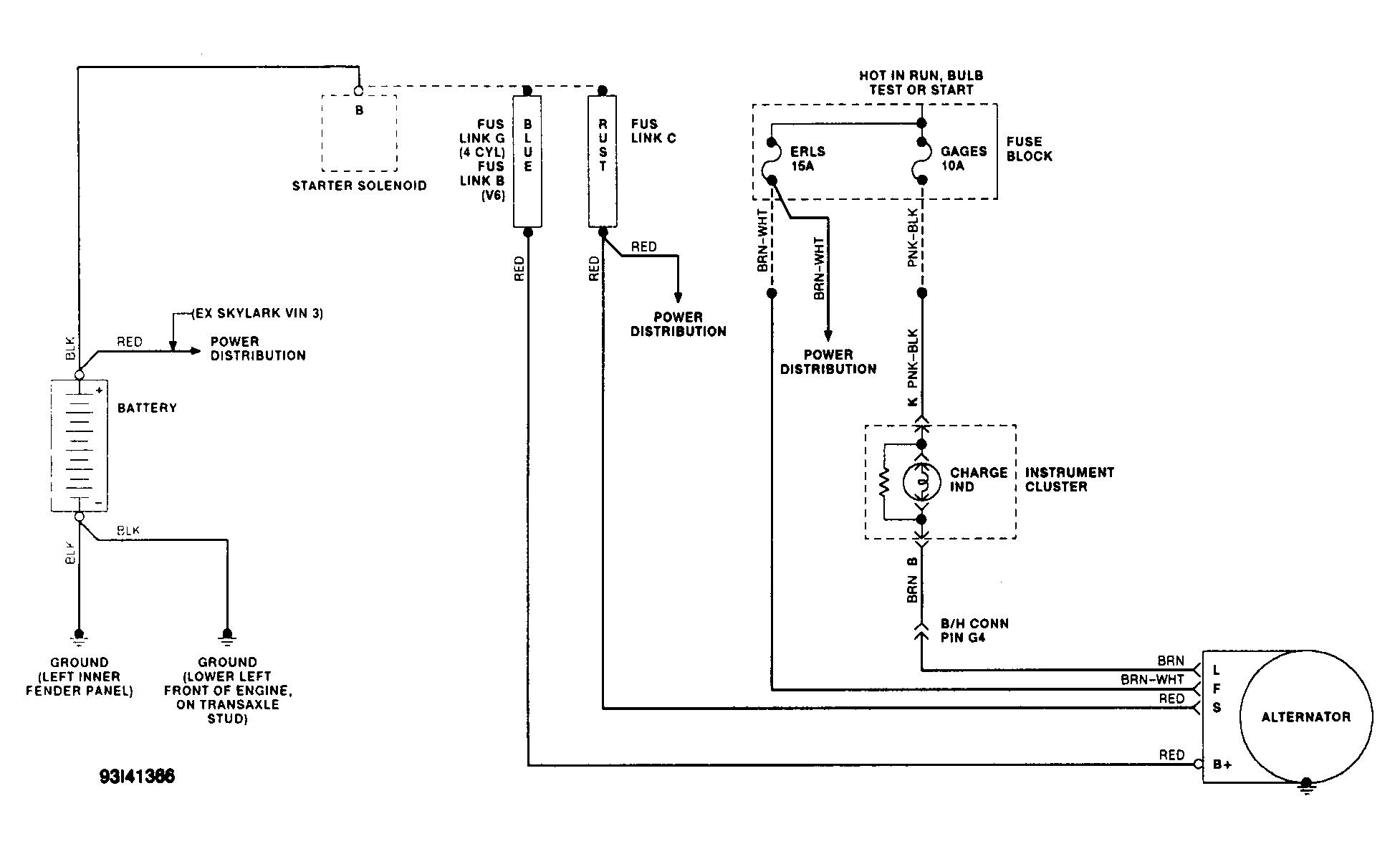

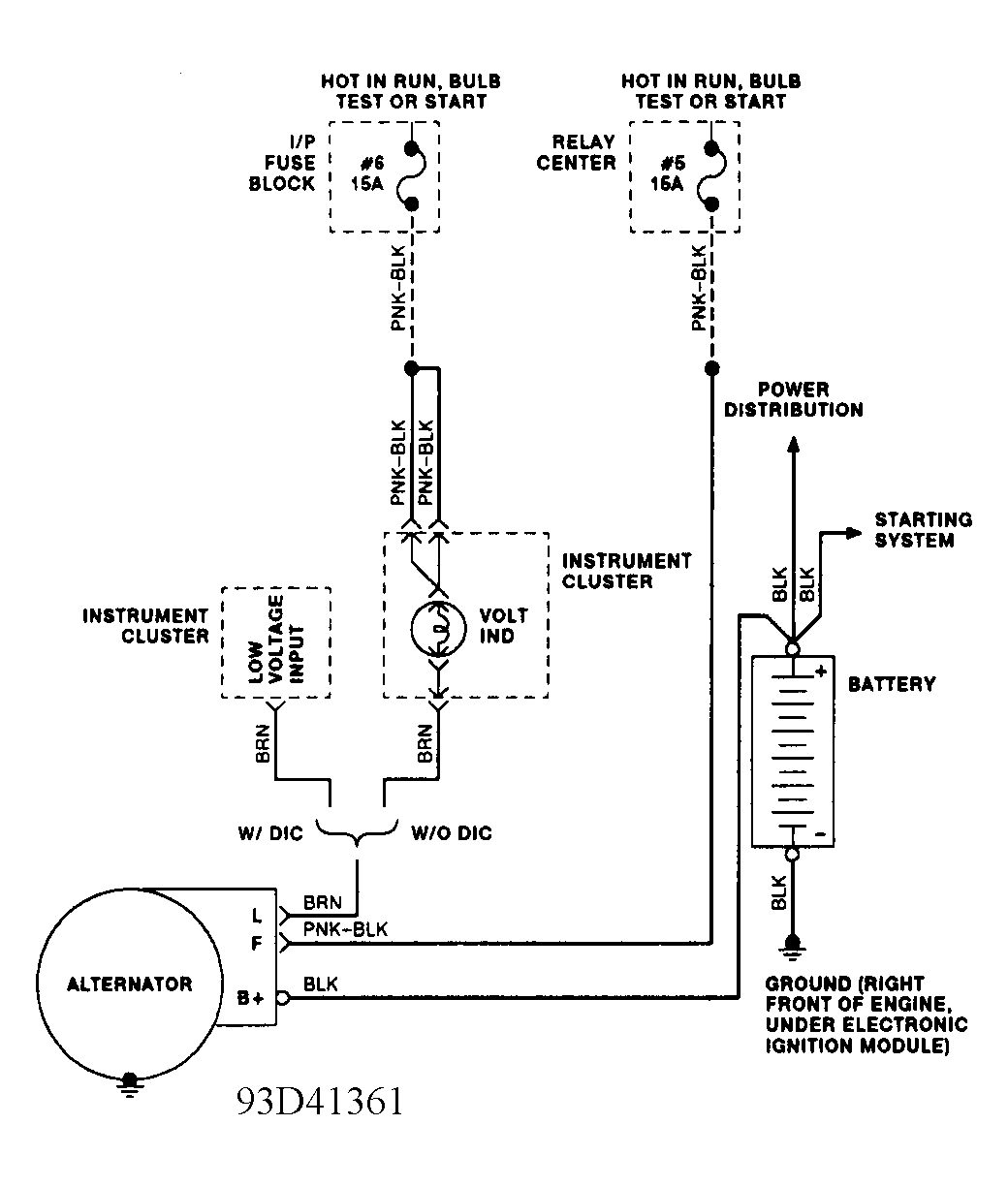

Fig 3: Charging System Schematic (Bonneville)

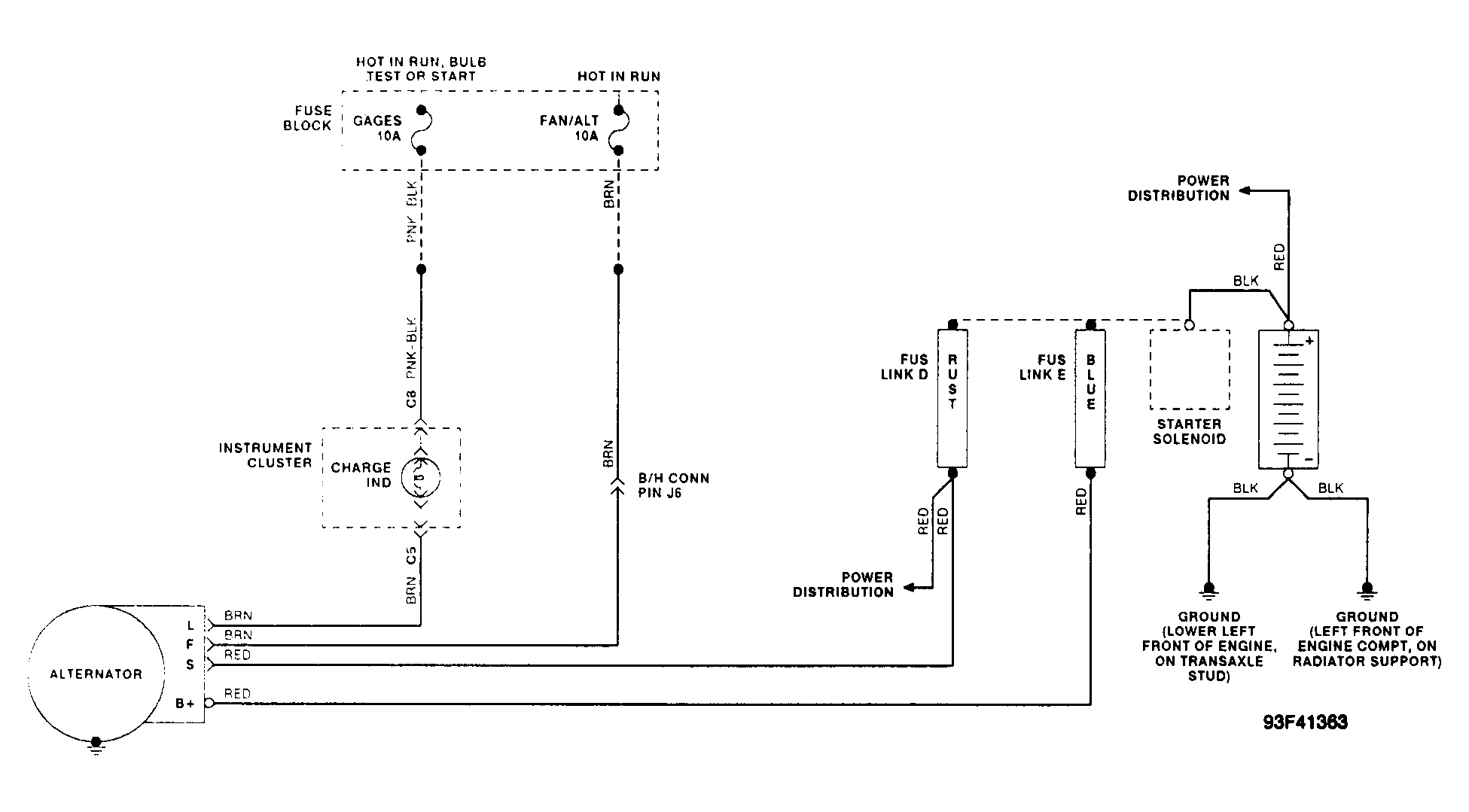

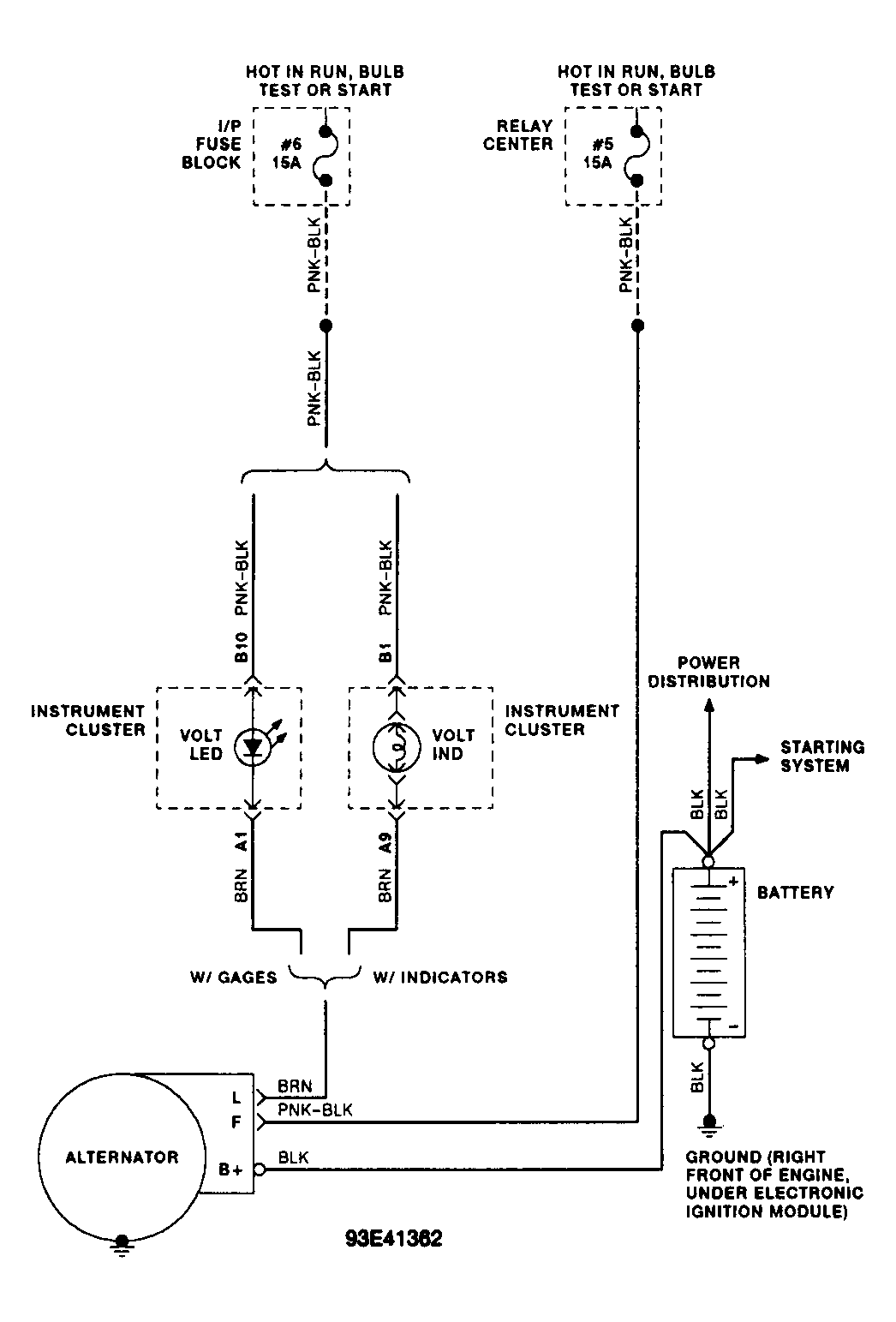

Fig 4: Charging System Schematic (Fleetwood)

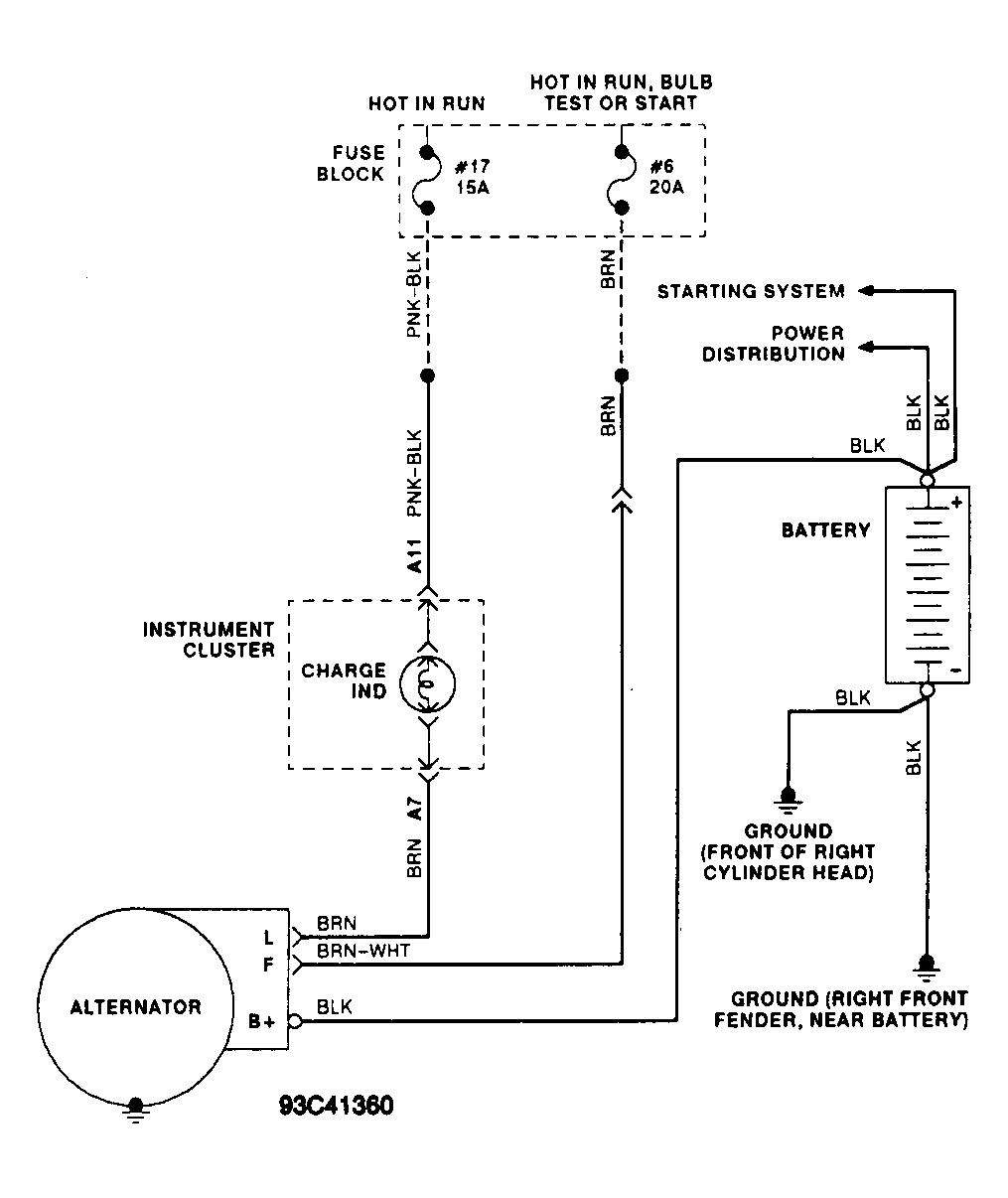

Fig 5: Charging System Schematic (Camaro & Firebird)

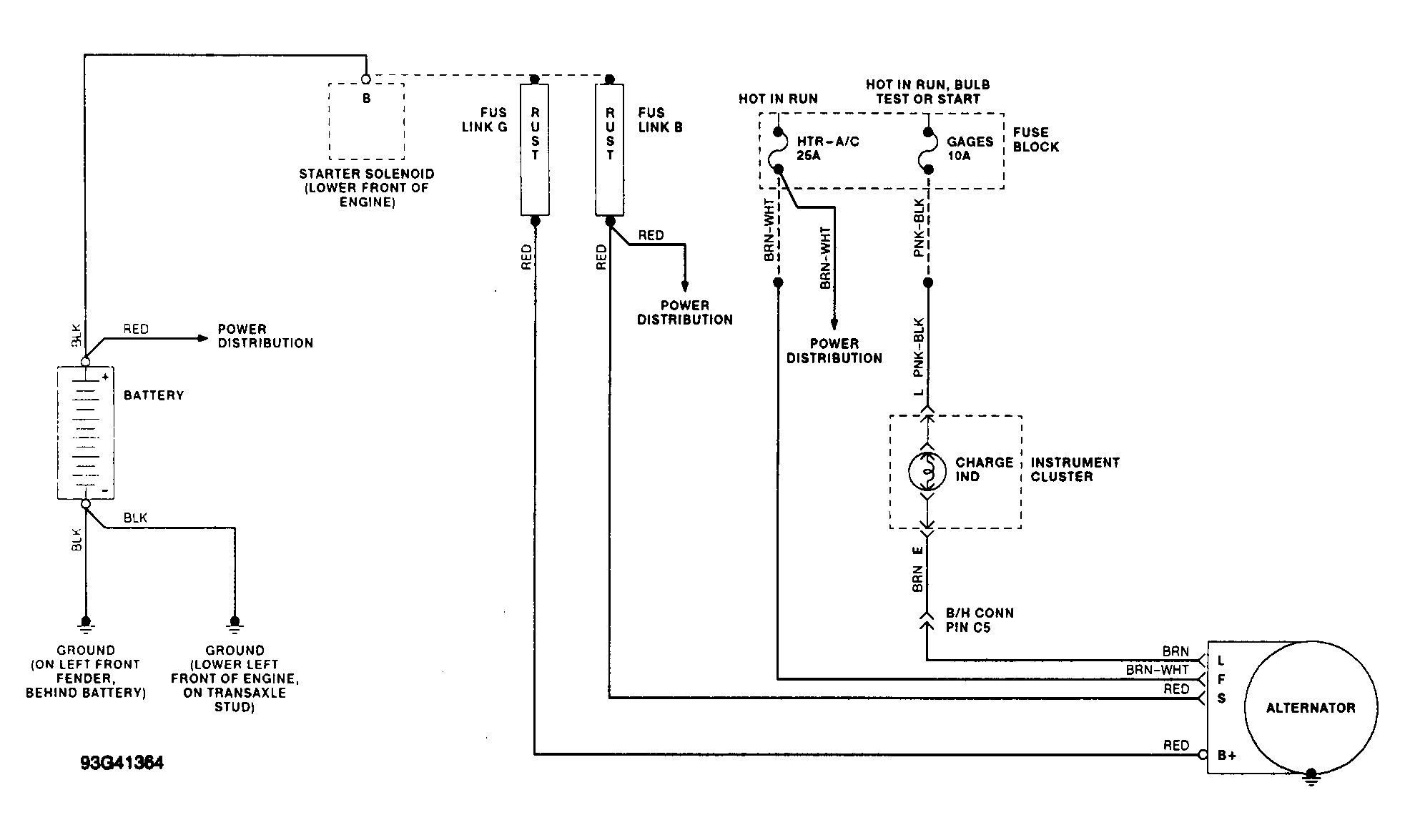

Fig 6: Charging System Schematic (Caprice & Roadmaster)

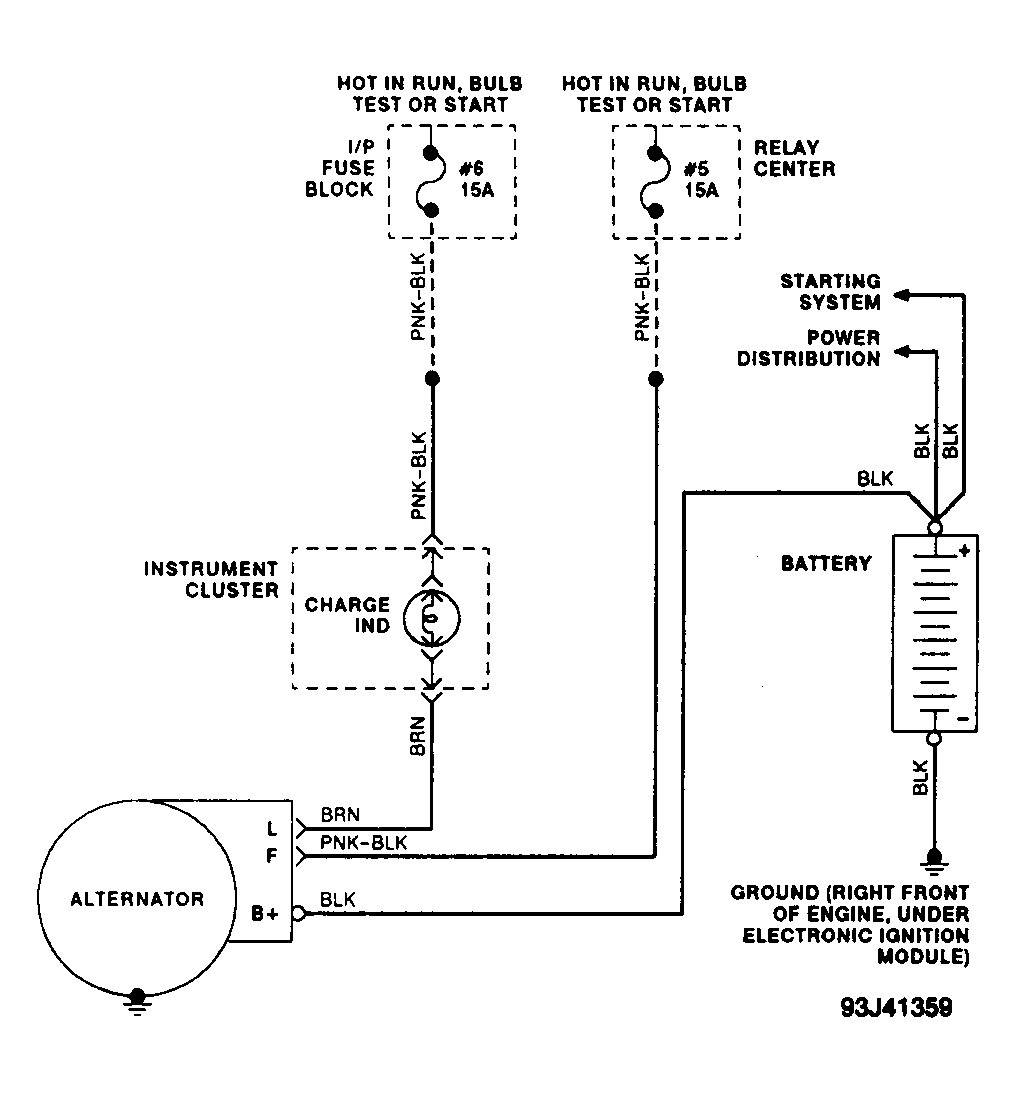

Fig 7: Charging System Schematic (Cavalier & Sunbird)

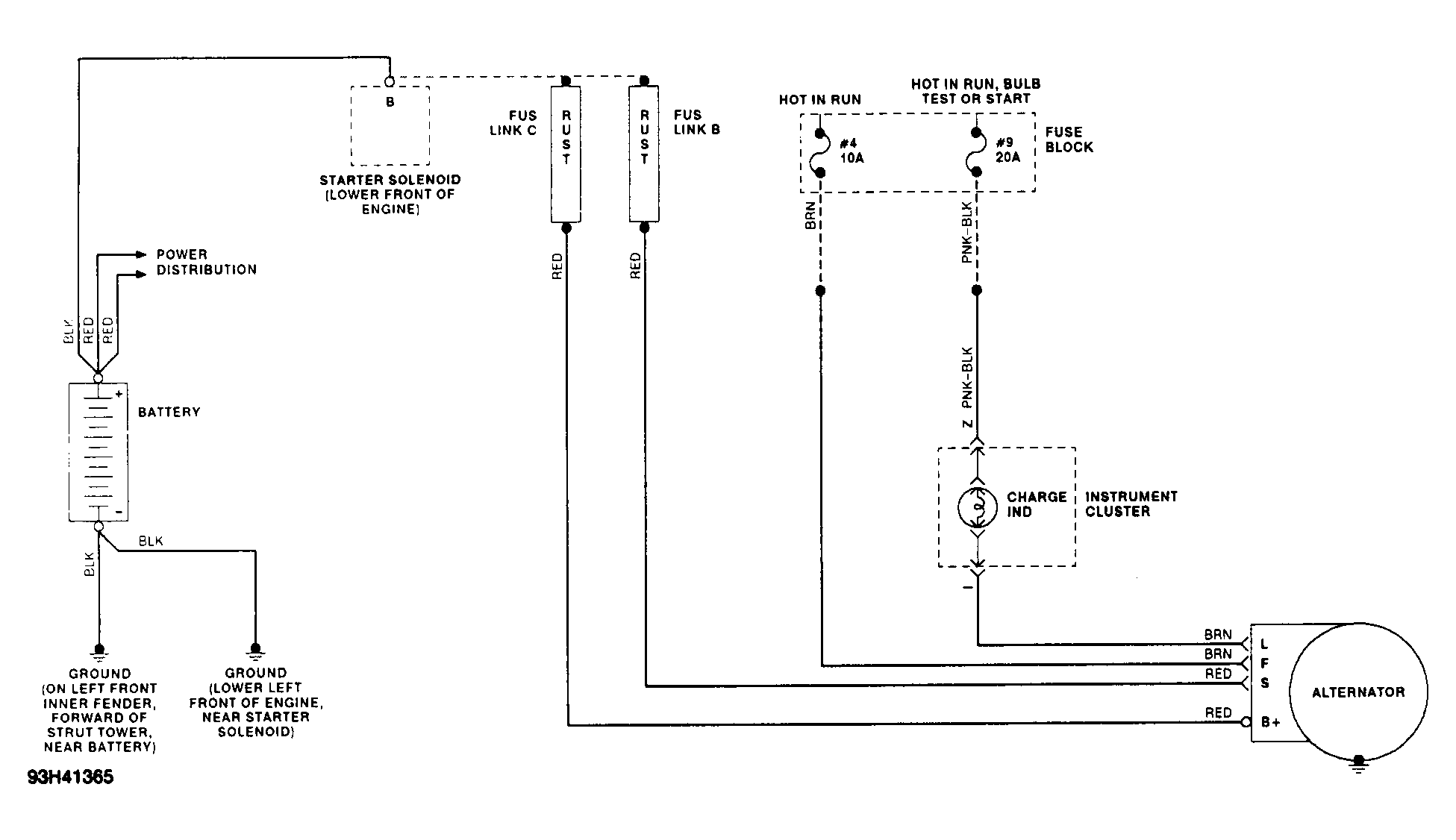

Fig 8: Charging System Schematic (Century, Cutlass Ciera & Cutlass Cruiser)

Fig 9: Charging System Schematic (Corvette)

Fig 10: Charging System Schematic (Cutlass Supreme, Grand Prix, Lumina & Regal)

Fig 11: Charging System Schematic (Eighty-Eight & Ninety Eight)

Fig 12: Charging System Schematic (Park Avenue & LeSabre)
