Steering System - Variable Effort: Wiring Diagram

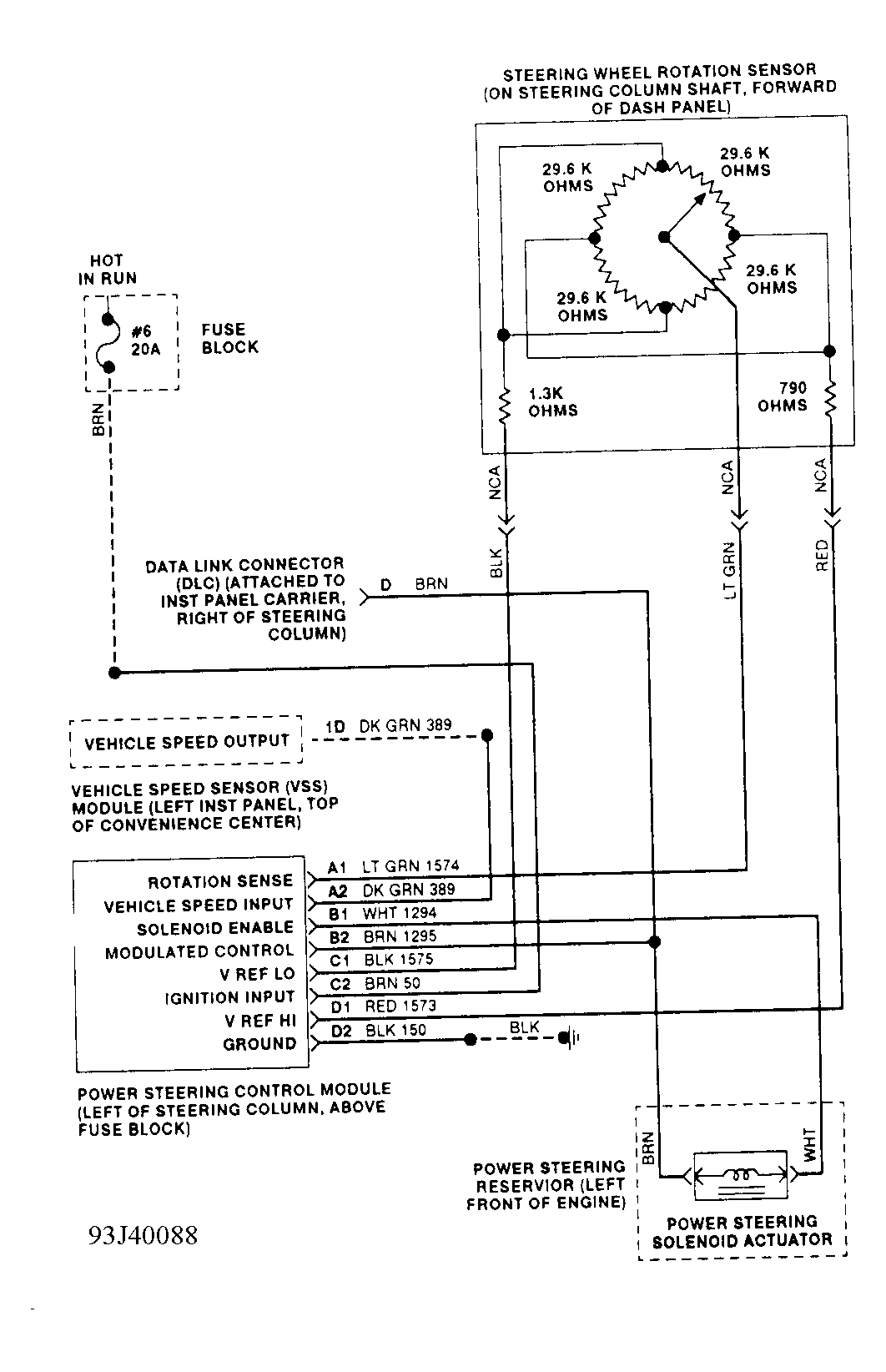

Fig 1: Variable Effort Steering (VES) System Wiring Diagram

G93J40088
