Catalytic Converter: Service and Repair

Exhaust Manifold Attachment:

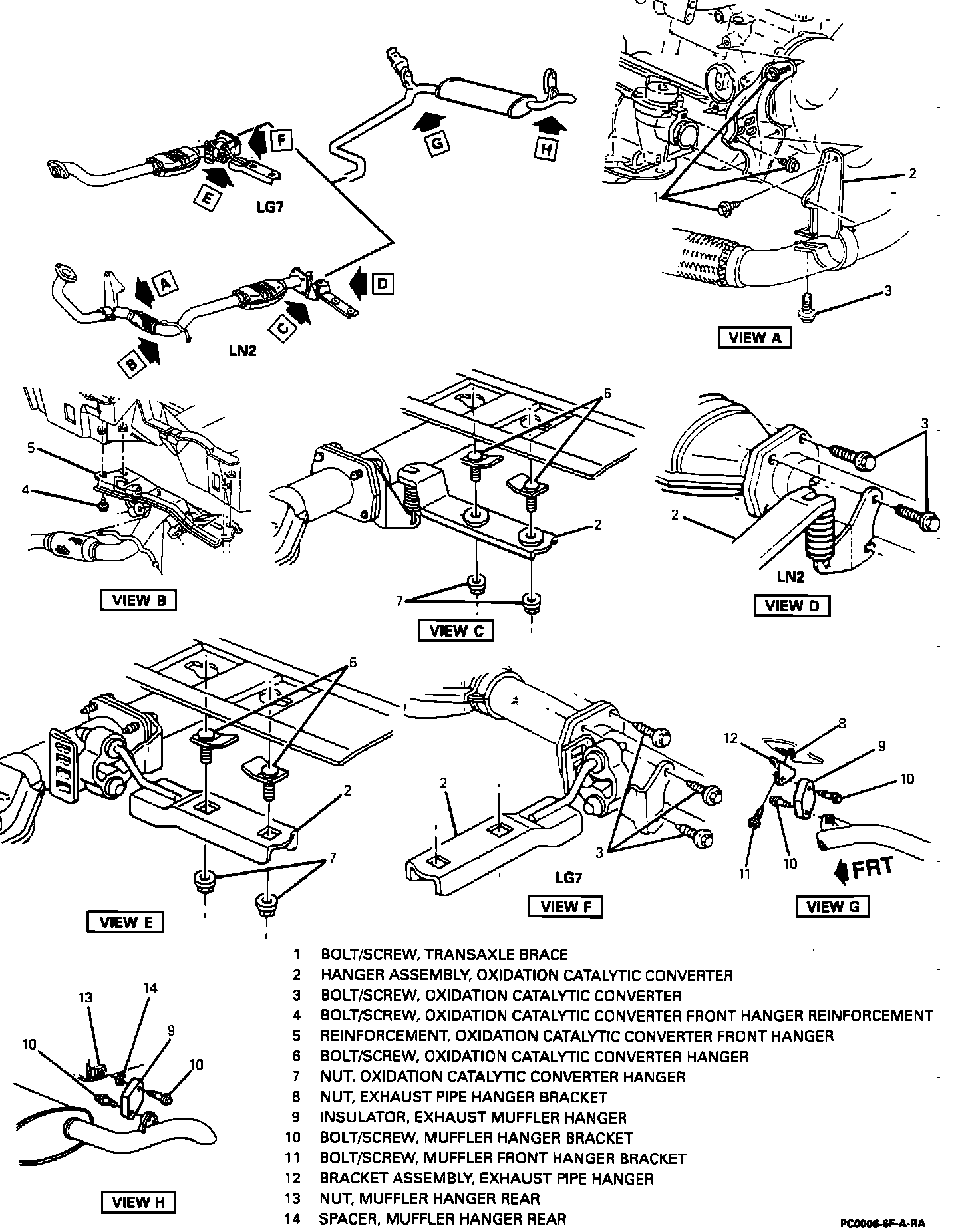

Exhaust System And Hangers:

Removal
1. Raise vehicle and suitably support.
2. Exhaust pipe nuts from manifold.
3. Support the catalytic converter and remove bolts/screws from rear of catalytic converter.
4. Oxidation catalytic converter and pipe assembly.

Installation
1. Oxidation catalytic converter and pipe assembly.
2. Exhaust pipe nuts to manifold. Tighten nuts to 53 N-m (39 lb.ft.).
3. Bolts/screws to rear of oxidation catalytic converter. Tighten bolts/screws to 47 N-m (35 lb.ft.).
4. Lower vehicle.
