Ignition Cable: Service and Repair

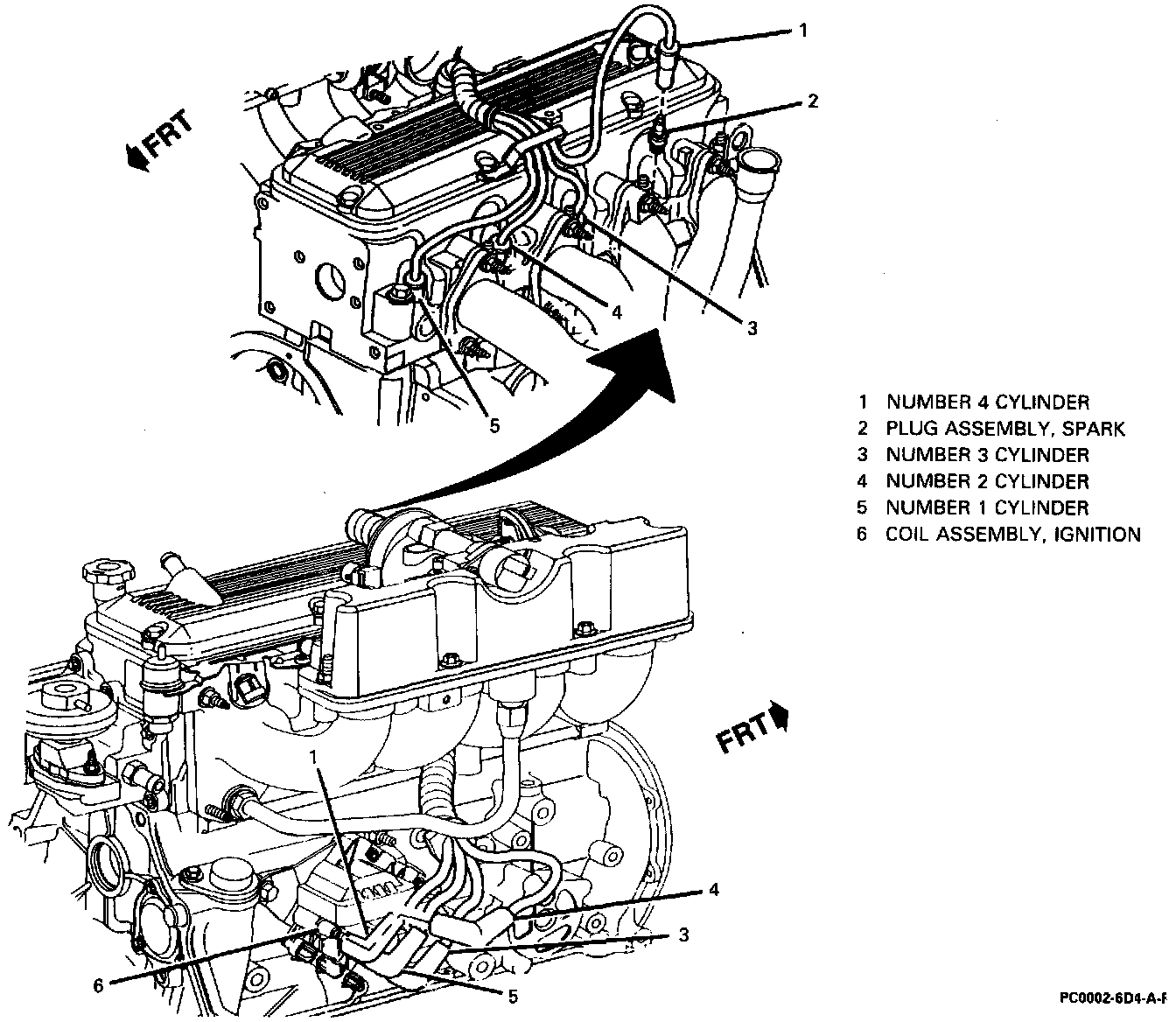

Spark Plug Wire Routing:

Removal
1. Remove spark plug wires from plugs.
2. Rotate engine forward.
3. Remove plug wires from looms.
4. Remove plug wires from module and engine.

Installation
1. Attach plug wires to engine and module.
2. Attach plug wires to looms.
3. Properly position engine.
4. Attach plug wires to plugs.
