Flow Chart 5B, Middle Lumbar Support Inoperative Upper &

LOWER SUPPORTS OPERATE NORMALLY (ROADMASTER)

CAUTION: To Avoid Misdiagnosis And Replacement Of Good Parts, Be Sure Pneumatic Line Is Connected And Not Broken Or Pinched

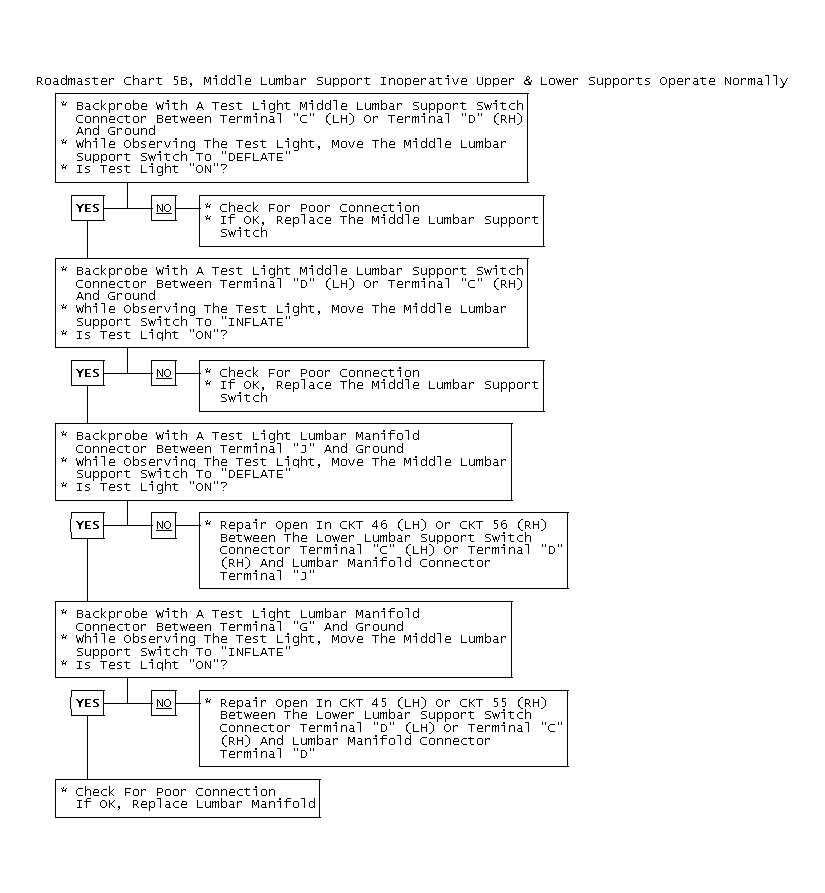

Fig 1: Roadmaster Chart 5B, Middle Lumbar Support Inoperative Upper & Lower Supports Operate Normally
