C2 (Clear)

PCM Connector End Views:






PINS 1-16

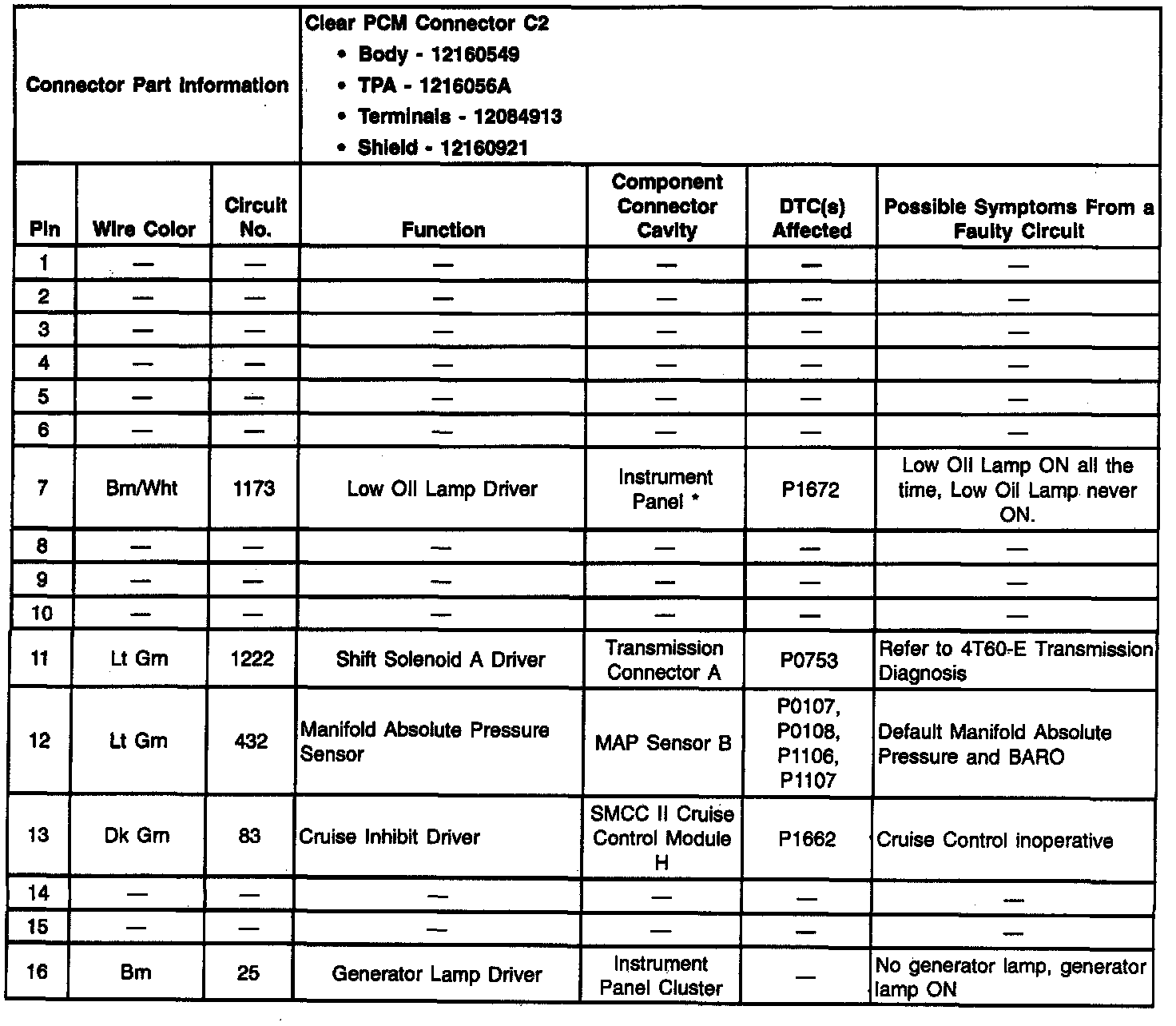

Clear PCM Connector C2 (1 Of 4):






PINS 17-43

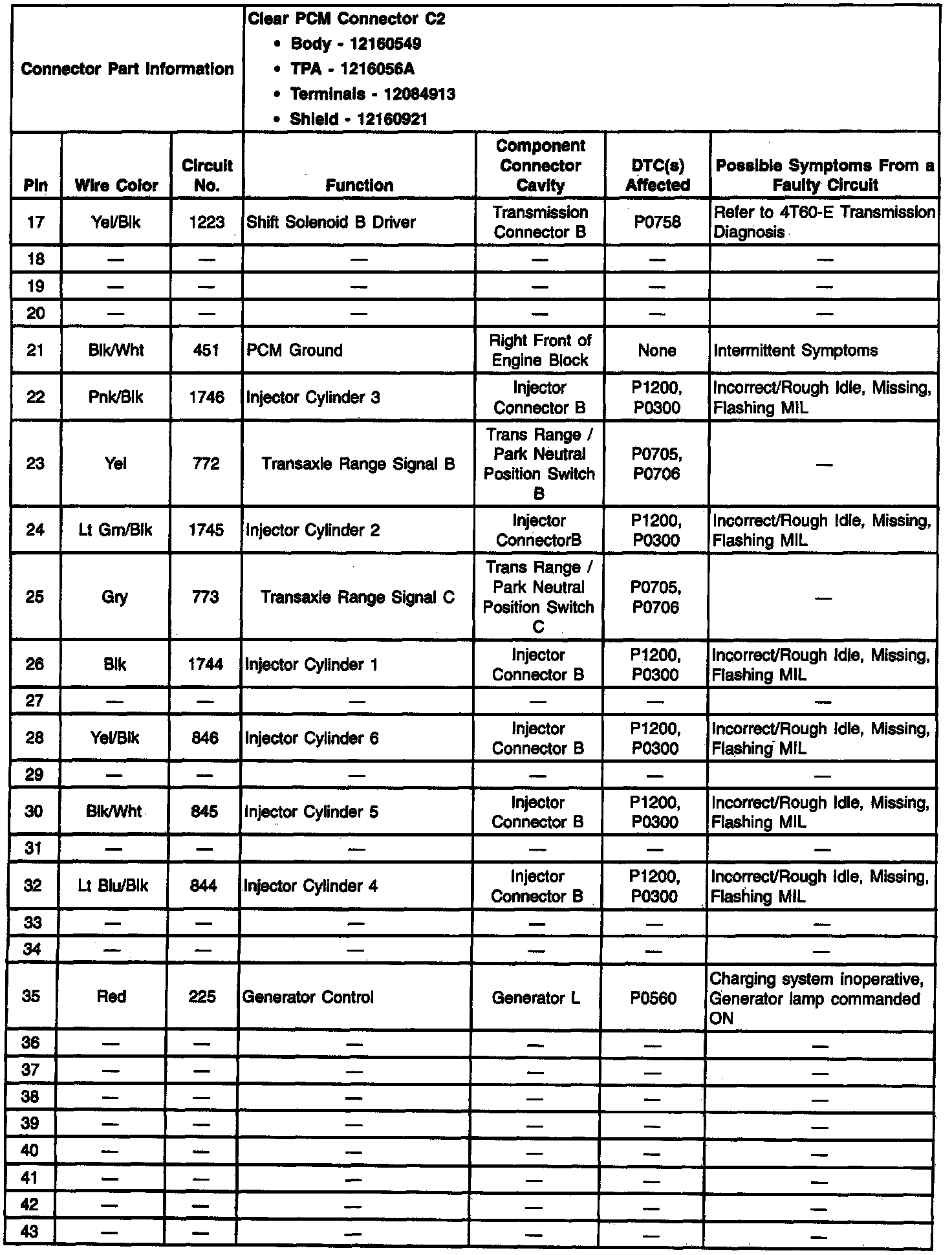

Clear PCM Connector C2 (2 Of 4):






PINS 44-68

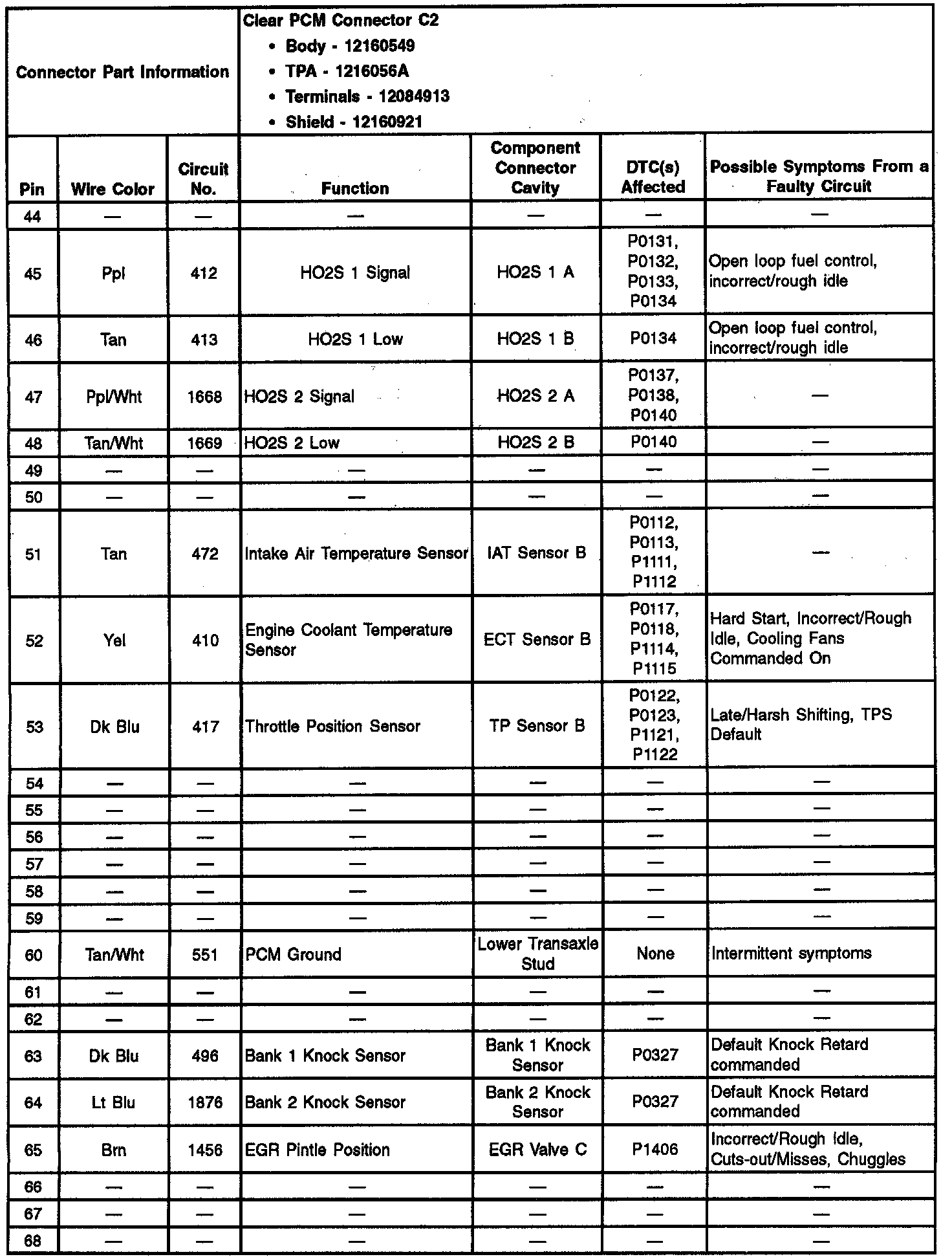

Clear PCM Connector C2 (3 Of 4):






PINS 69-80

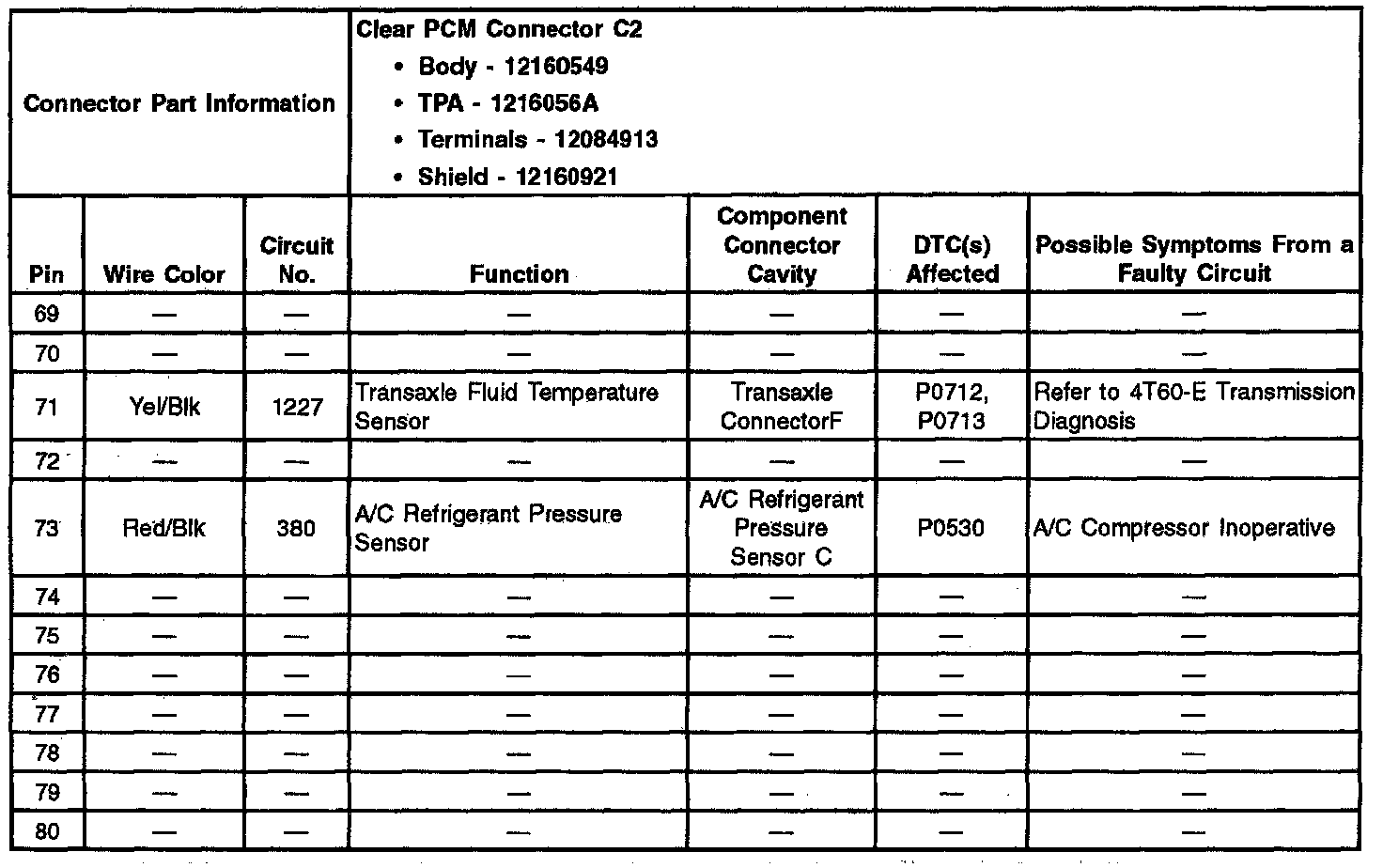

Clear PCM Connector C2 (4 Of 4):
