Component Locations

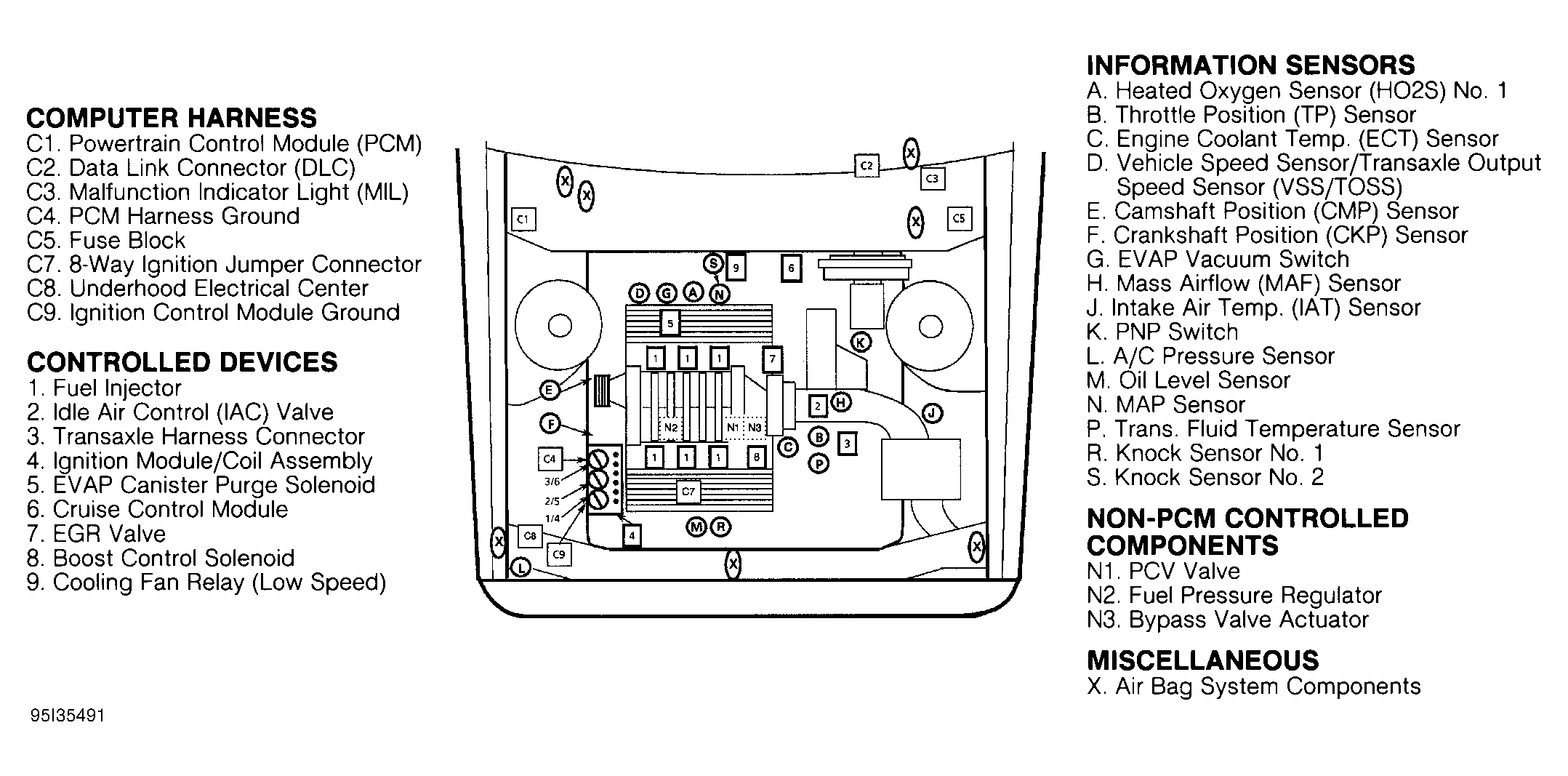

Fig 1: Component Locations (VIN K)
G95I35491Courtesy of GENERAL MOTORS CORP.

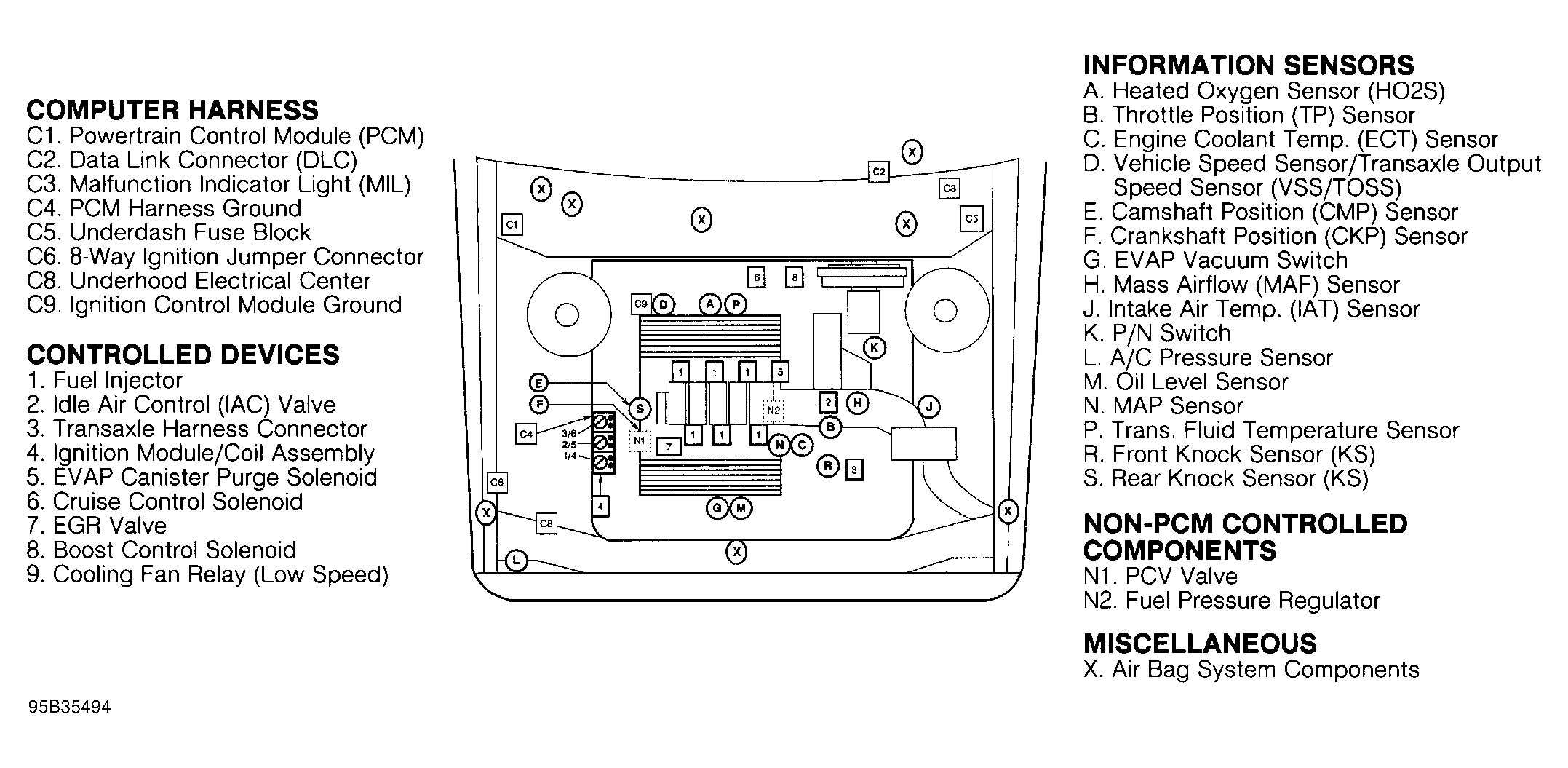

Fig 2: Component Locations (VIN 1)
G95B35494Courtesy of GENERAL MOTORS CORP.
