Connector Identification

NOTE: To identify SIR wiring connector terminals, see Fig 1 .

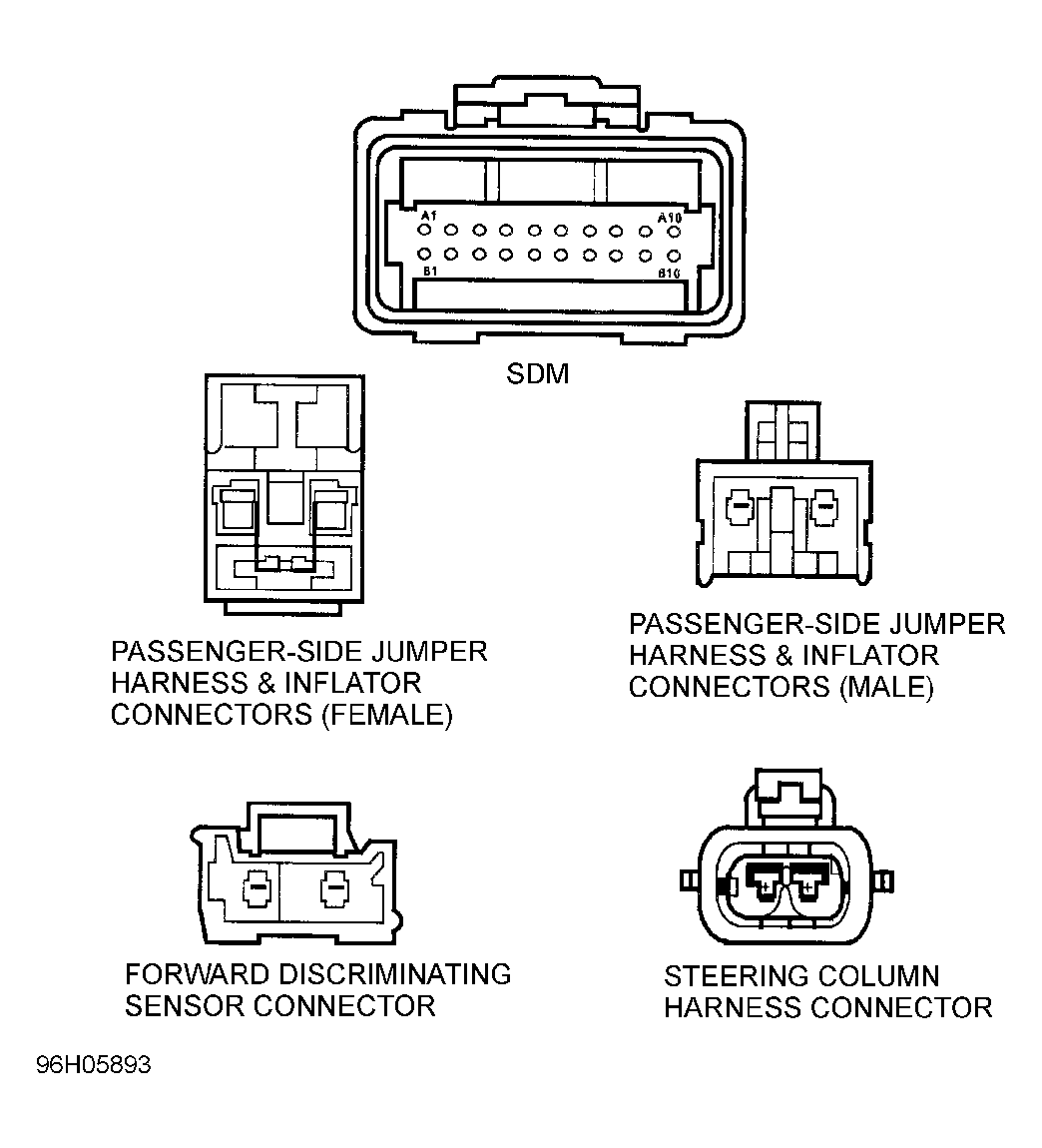

Fig 1: Identifying SIR Wiring Connector Terminals
G96H05893Courtesy of GENERAL MOTORS CORP.
