Blower Motor Control Module C1

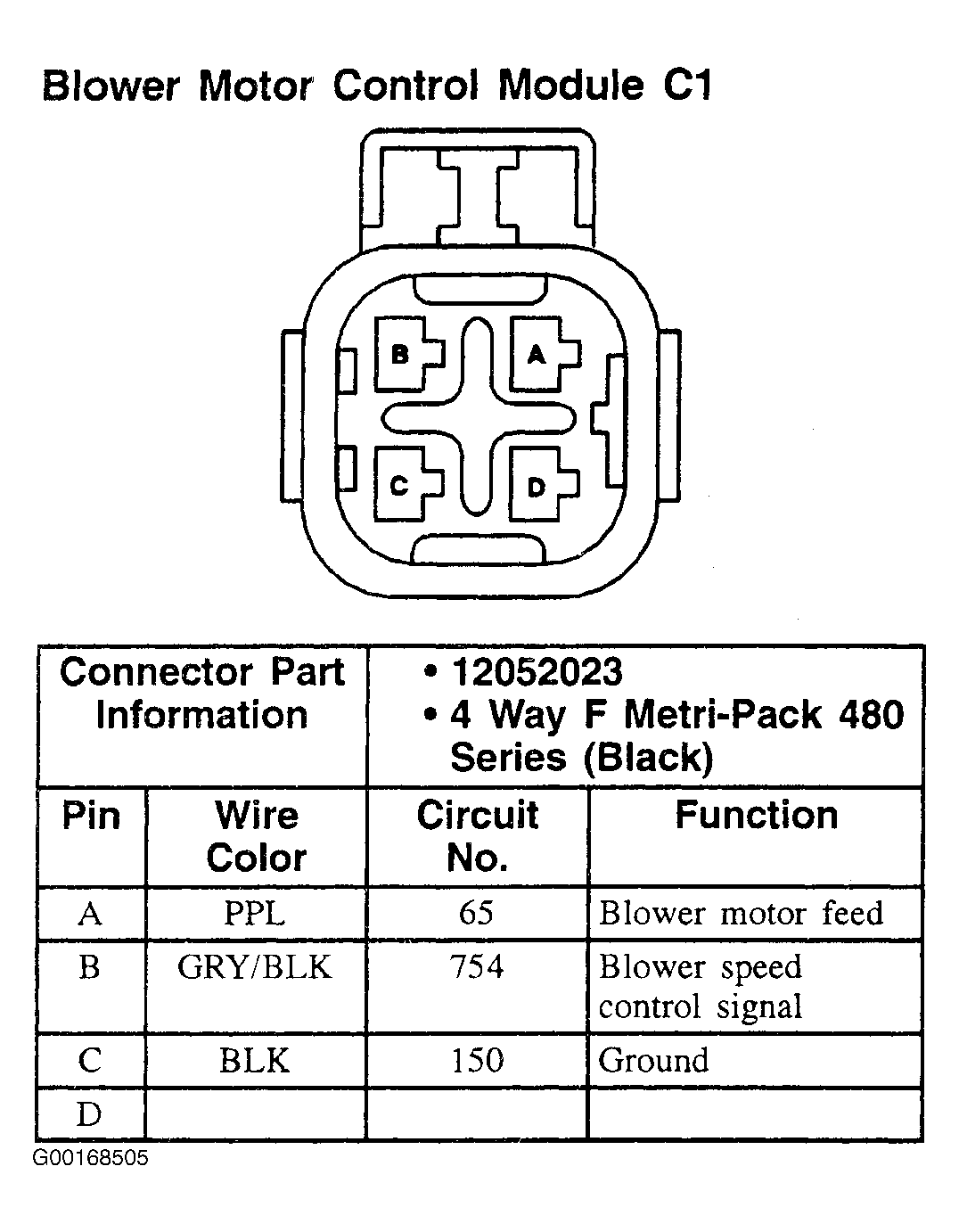

Fig 1: Blower Motor Control Module C1 (Cutlass Supreme, Lumina & Monte Carlo) - 4-Pin Connector (Black)
G00168505Courtesy of GENERAL MOTORS CORP.
