C113
>>
Grand Prix
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Grand Prix

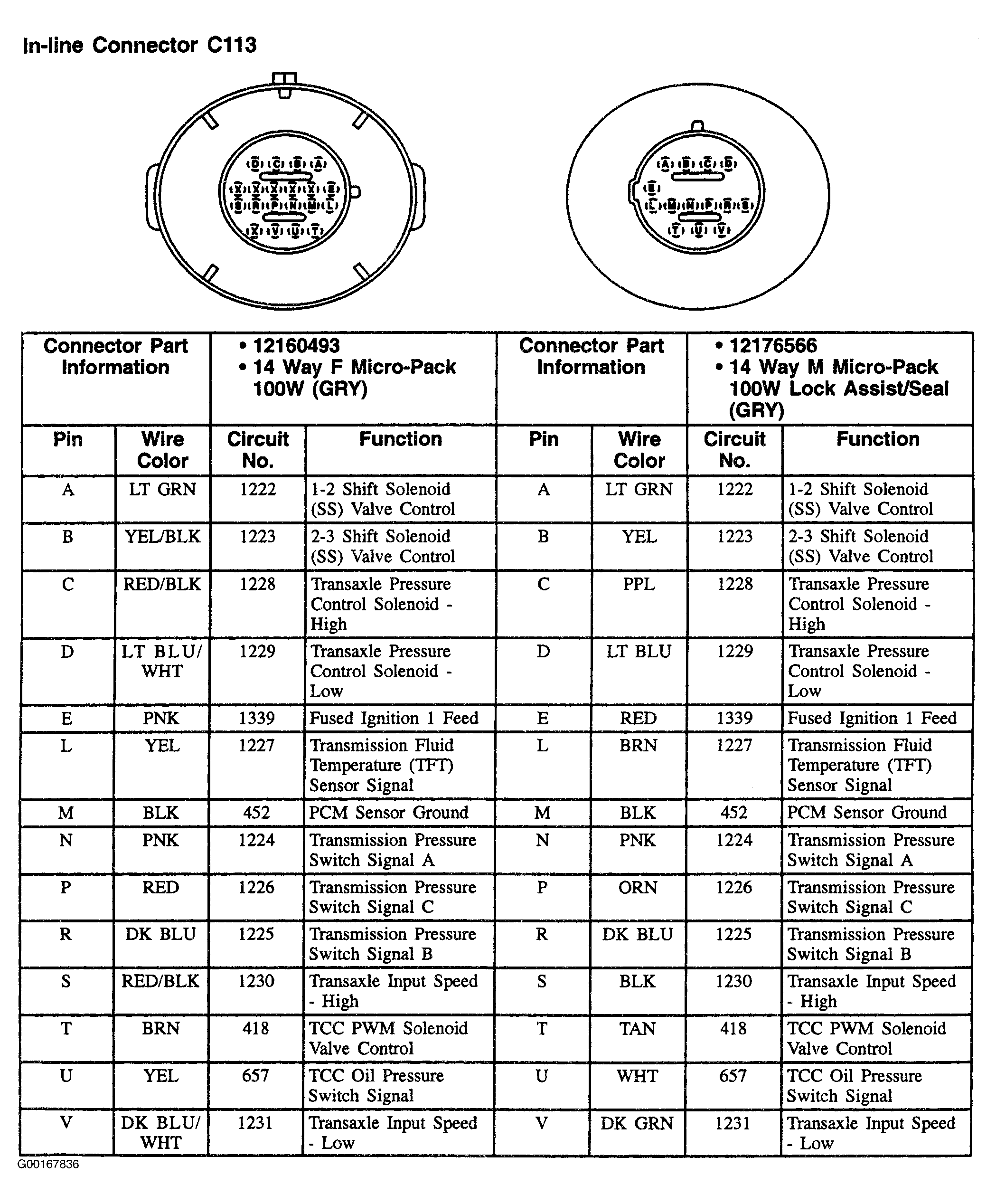

Fig 1: C113 (Grand Prix) - 14-Pin Connector (Gray/Gray)
Courtesy of GENERAL MOTORS CORP.
