Cutlass Supreme, Lumina & Monte CARLO

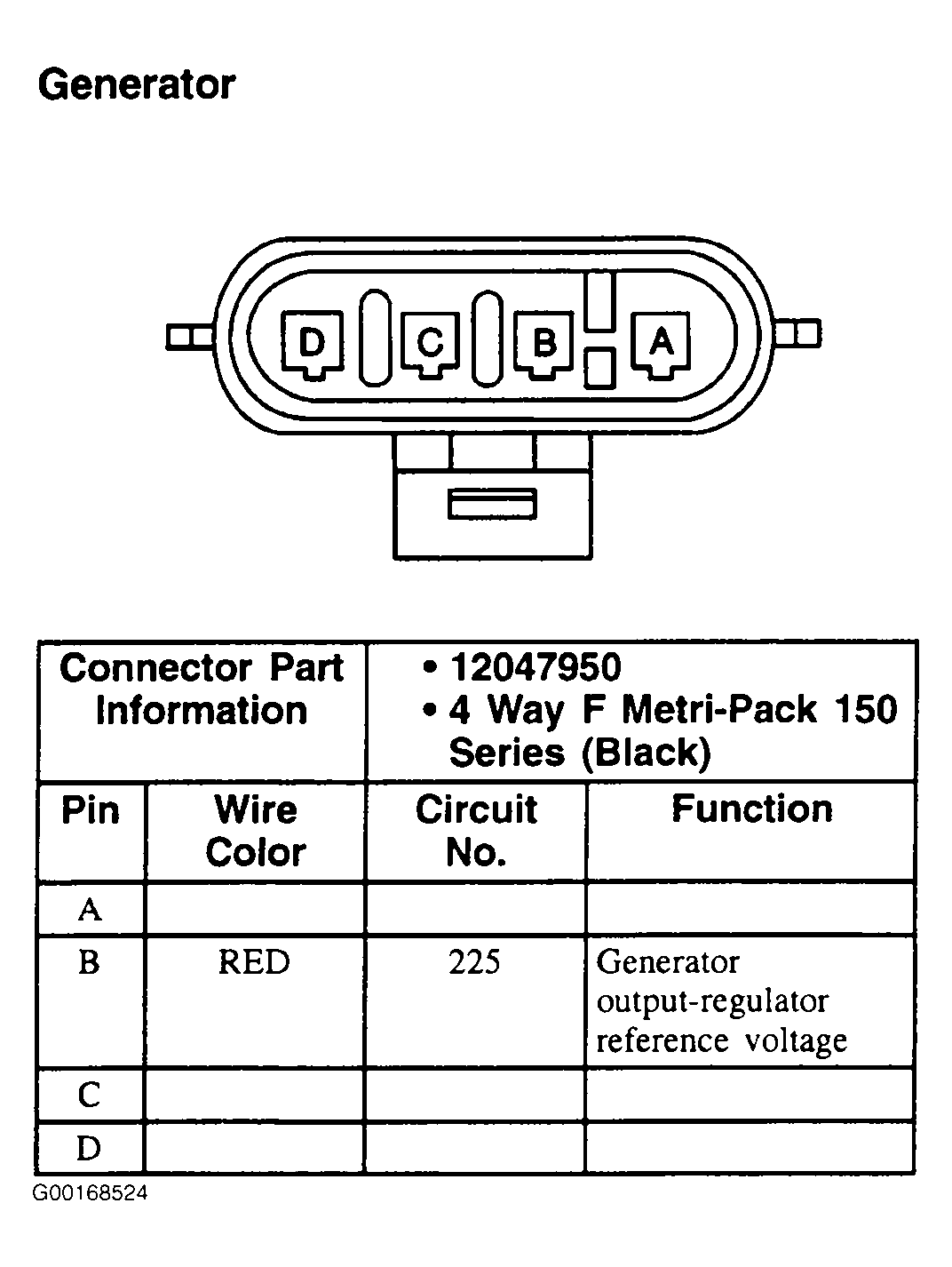

Fig 1: Generator (Cutlass Supreme, Lumina & Monte Carlo) - 4-Pin Connector (Black)

Courtesy of GENERAL MOTORS CORP.
