Pinout Description

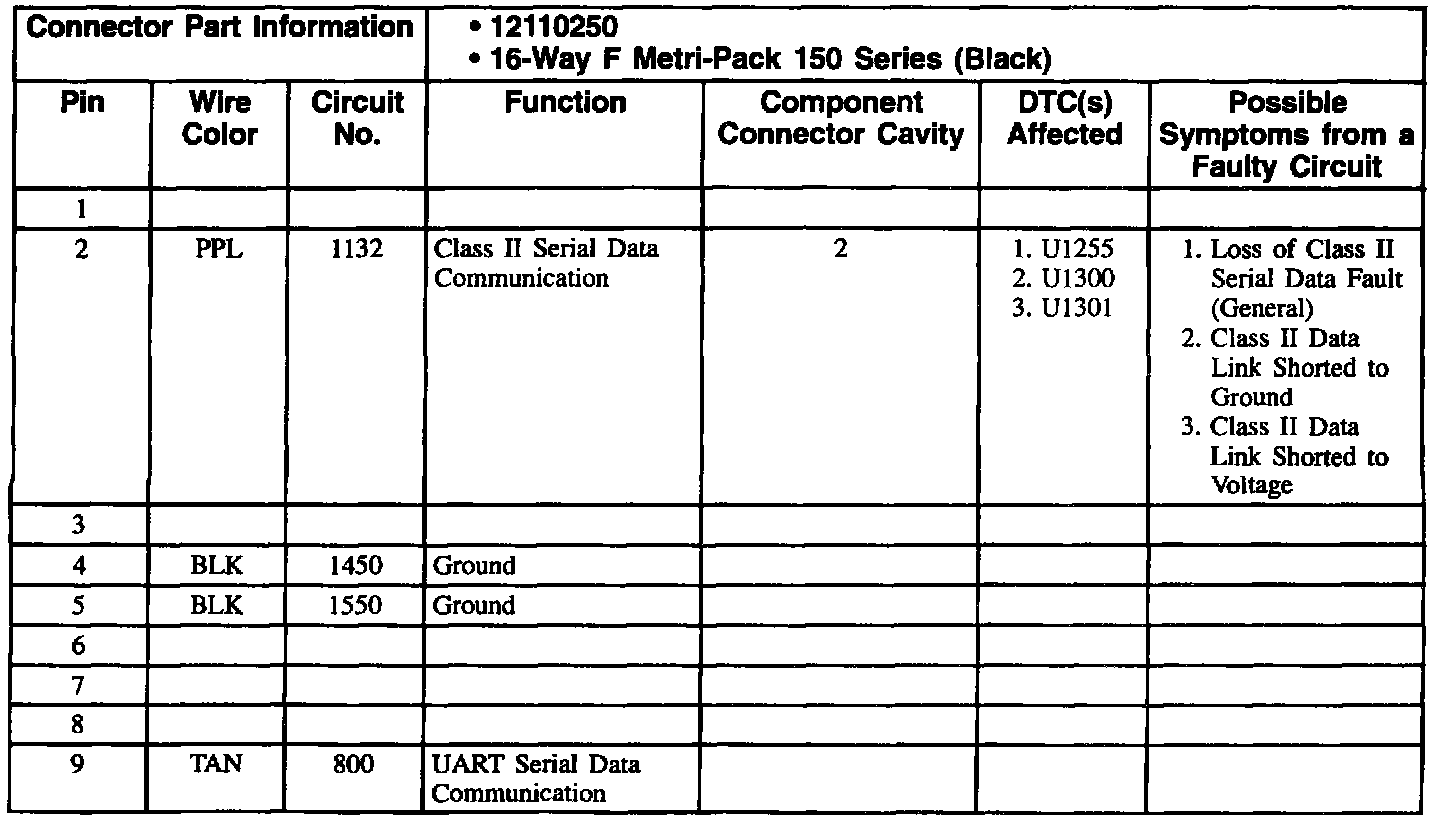

Data Link Connector (DLC) (Part 1 Of 2):
Data Link Connector (DLC) (Part 2 Of 2):
