Test J: One Power Door Lock Switch Lock Function Inoperative

NOTE: If one power door lock switch lock function is inoperative, see Fig 1 .

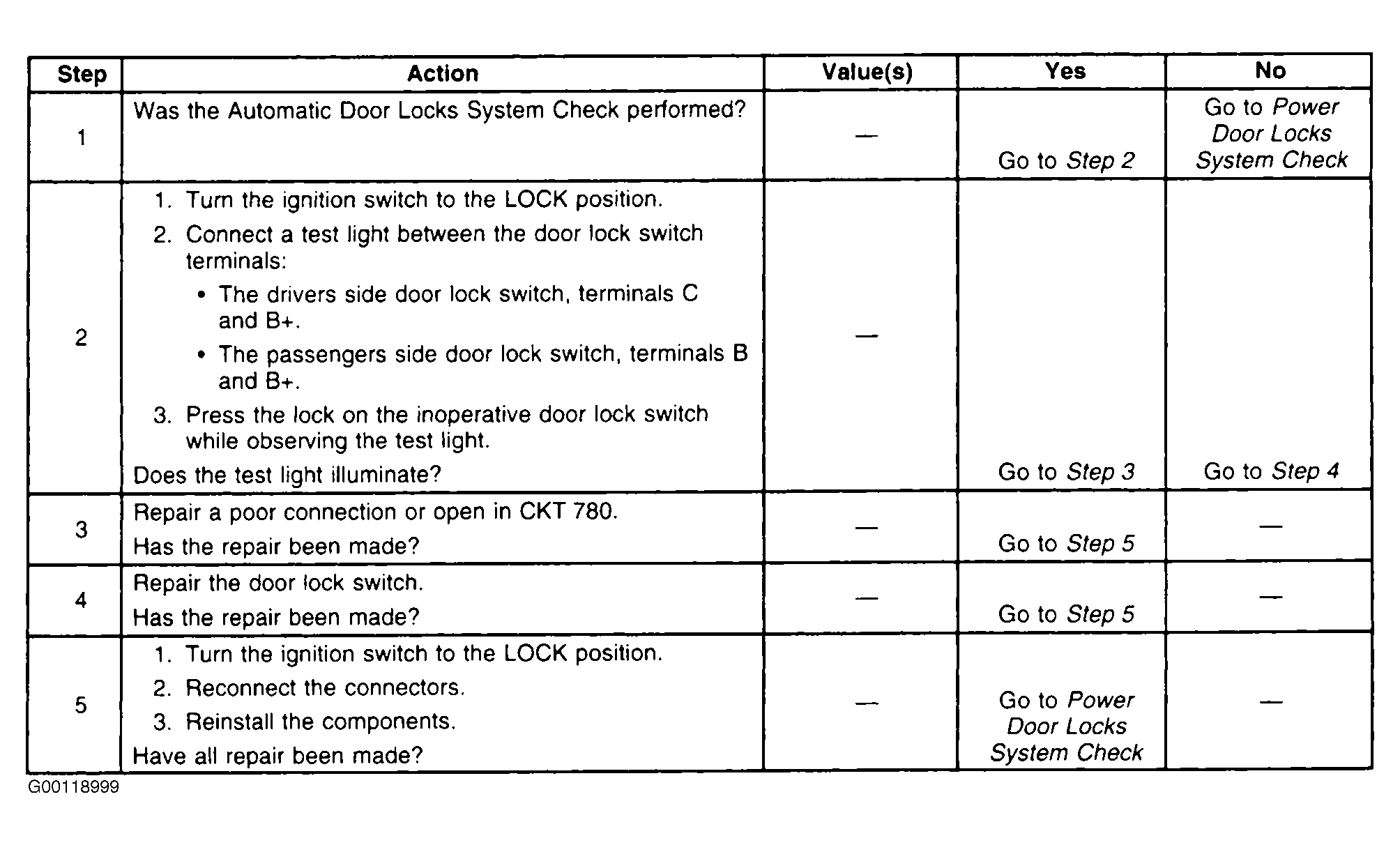

Fig 1: Test J: One Power Door Lock Switch Lock Function Inoperative

Courtesy of GENERAL MOTORS CORP.
