Service Point Locations

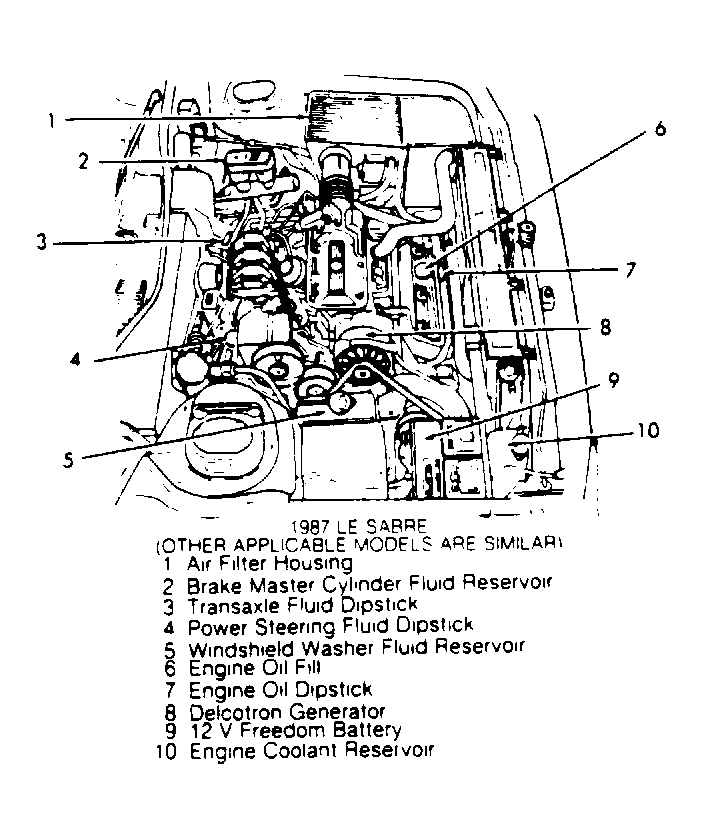

Fig 1: Engine Service Point Locations (Typical)
G90D06819Courtesy of GENERAL MOTORS CORP.

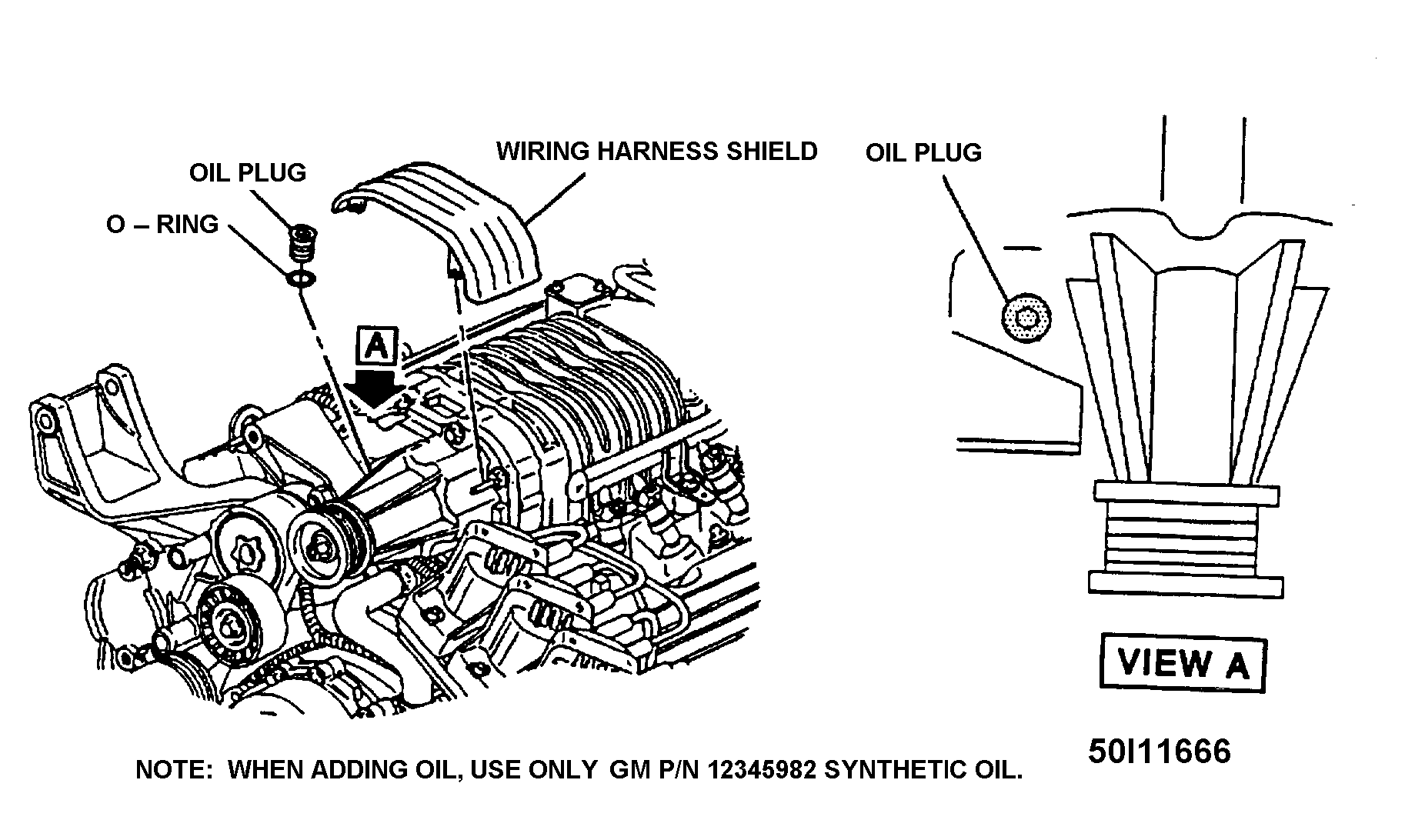

Fig 2: Supercharger Oil Plug Location
G50I11666Courtesy of GENERAL MOTORS CORP.
Fig 3: Lift Point Locations
G27671Courtesy of GENERAL MOTORS CORP.
