Remote Control Door Lock Receiver: Installation

  1. Install the retainers for the RFA module (3) onto the package shelf. See Fig 1.
  2. Connect the electrical connector.
  3. Program the transmitters.
  4. Program options for the RFA module.

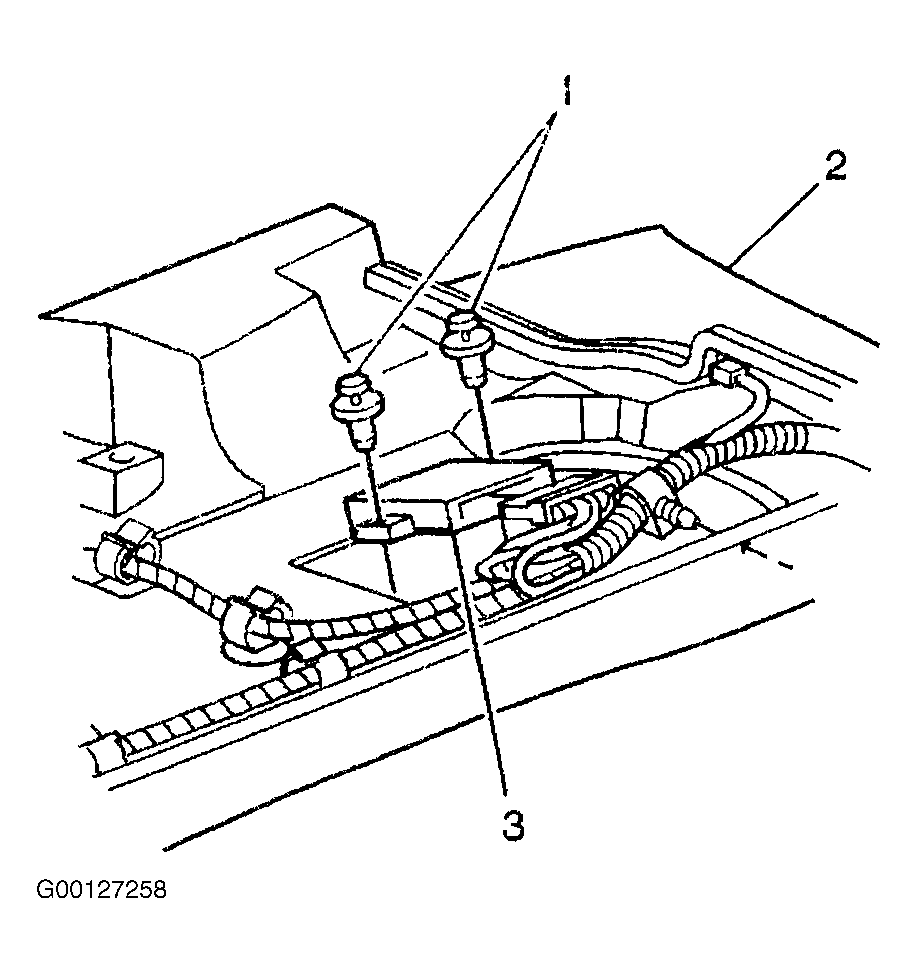

Fig 1: Removing & Installing Remote Control Door Lock Receiver
G00127258Courtesy of GENERAL MOTORS CORP.
