Computer/Integrating Systems Component Views

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

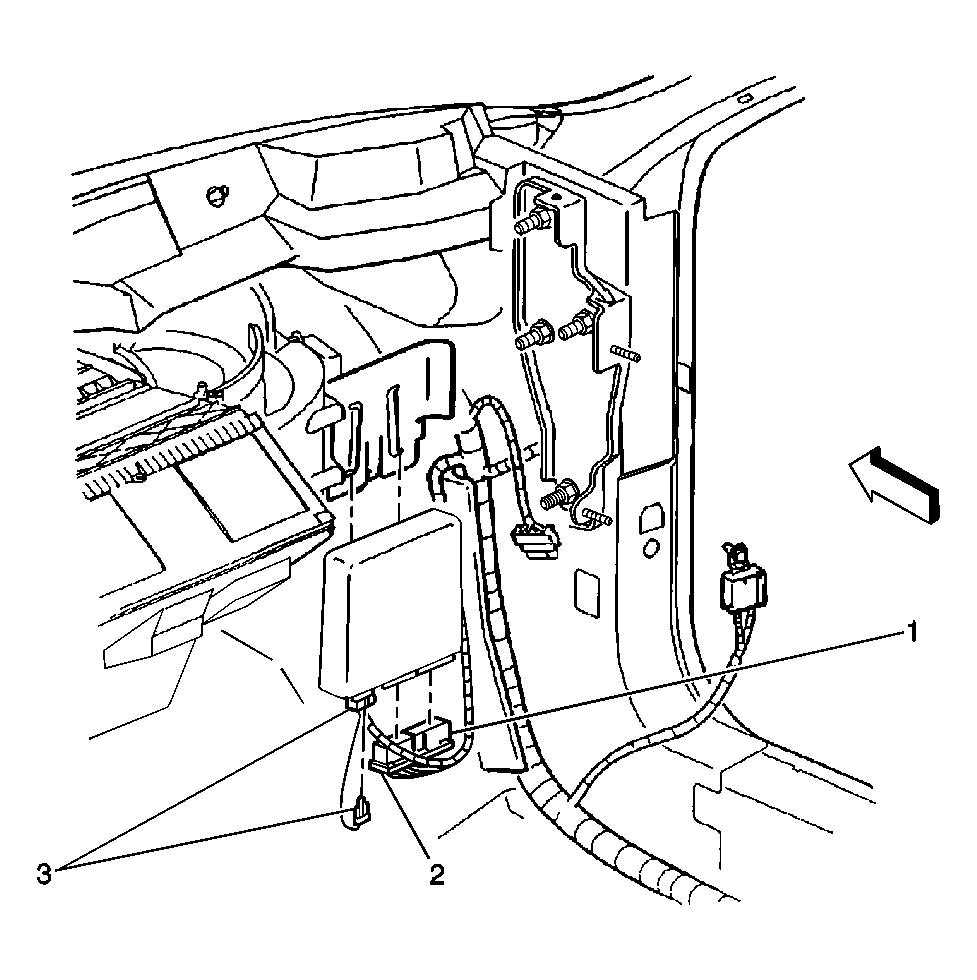

Fig 1: Dash Integration Module (DIM) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Dash Integration Module (DIM) C3
2	Dash Integration Module (DIM) C2
3	Dash Integration Module (DIM) C1

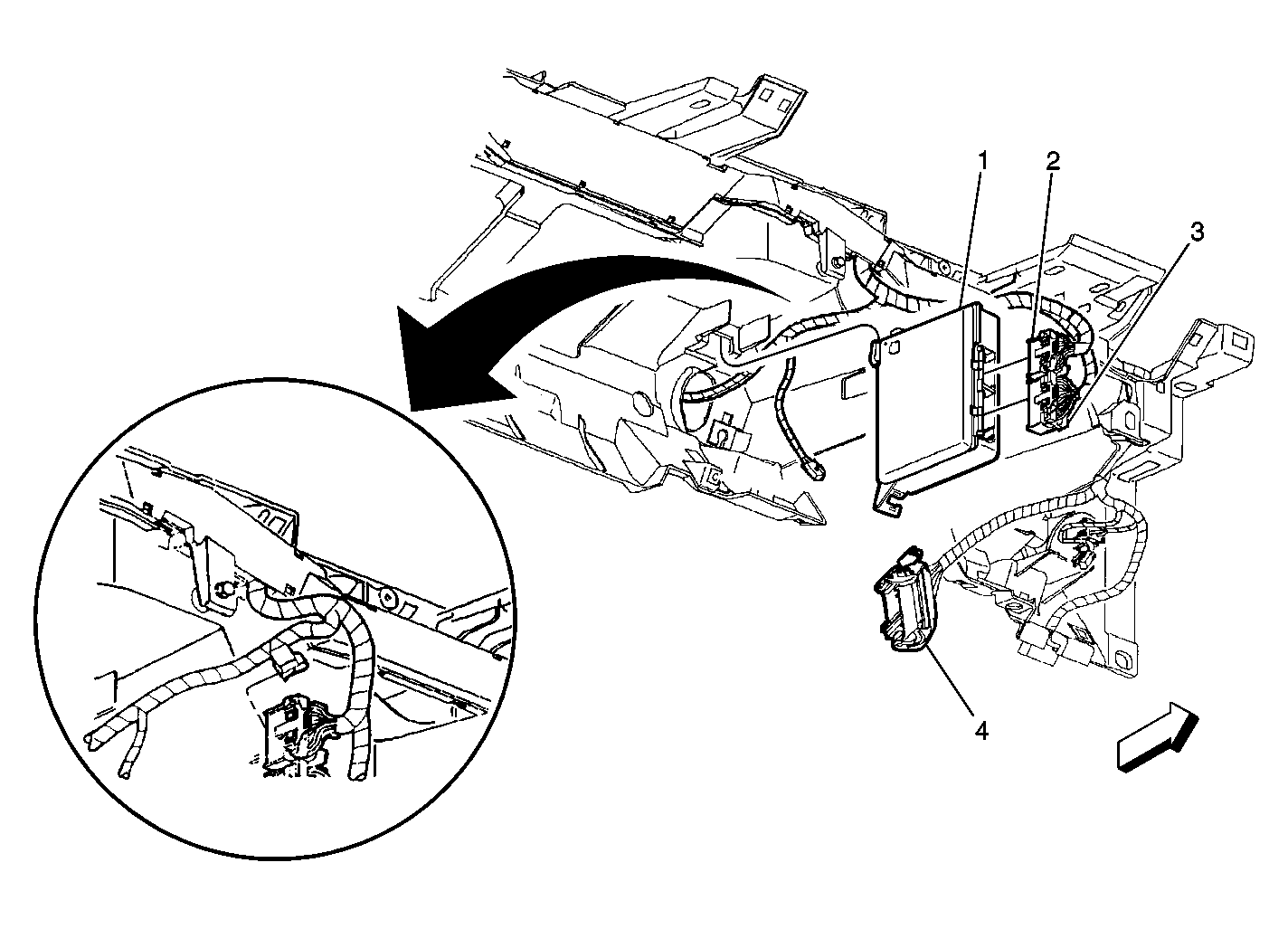

Fig 2: IPM Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Integration Module (IPM)
2	Instrument Panel Integration Module (IPM) C1
3	Instrument Panel Integration Module (IPM) C2
4	C201 Body Harness to the IP Wire Harness Connector

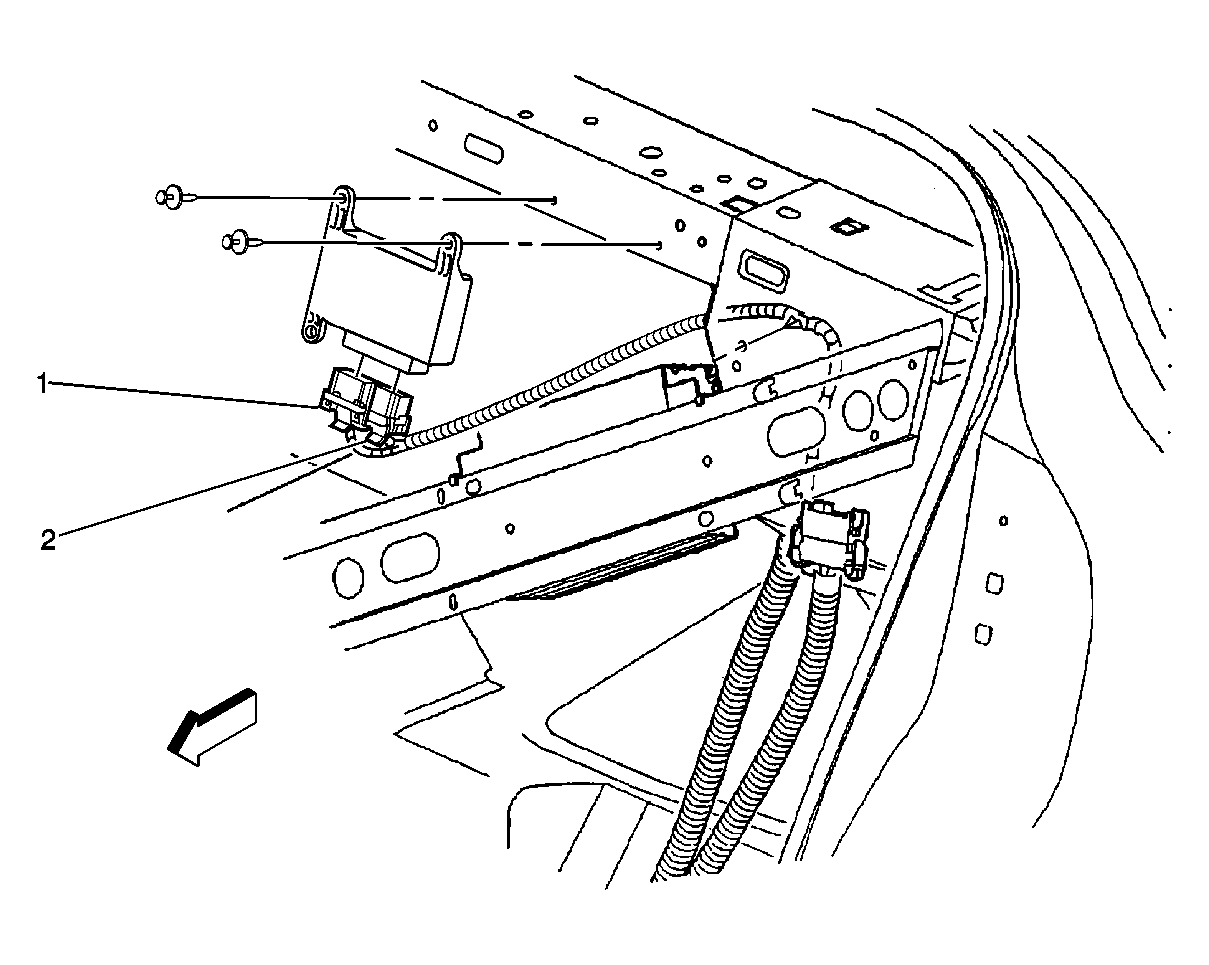

Fig 3: Rear Integration Module (RIM) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Integration Module (RIM) C1
2	Rear Integration Module (RIM) C2

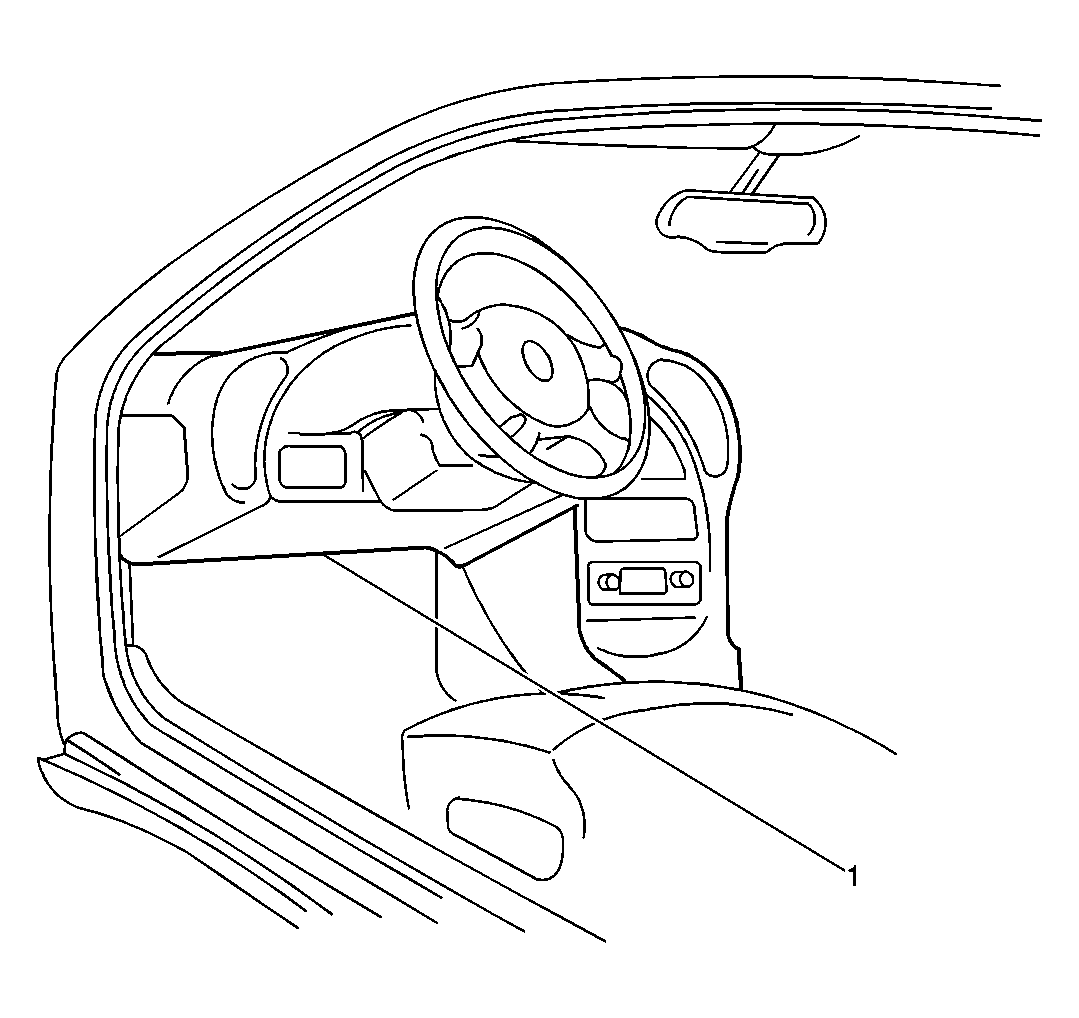

Fig 4: Identifying Data Link Communications (DLC) Connector

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Data Link Connector (DLC)
